Husqvarna KV 03 TROLLEY (2007-07) Power Cutter

Model: KV 03 TROLLEY (2007-07)

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

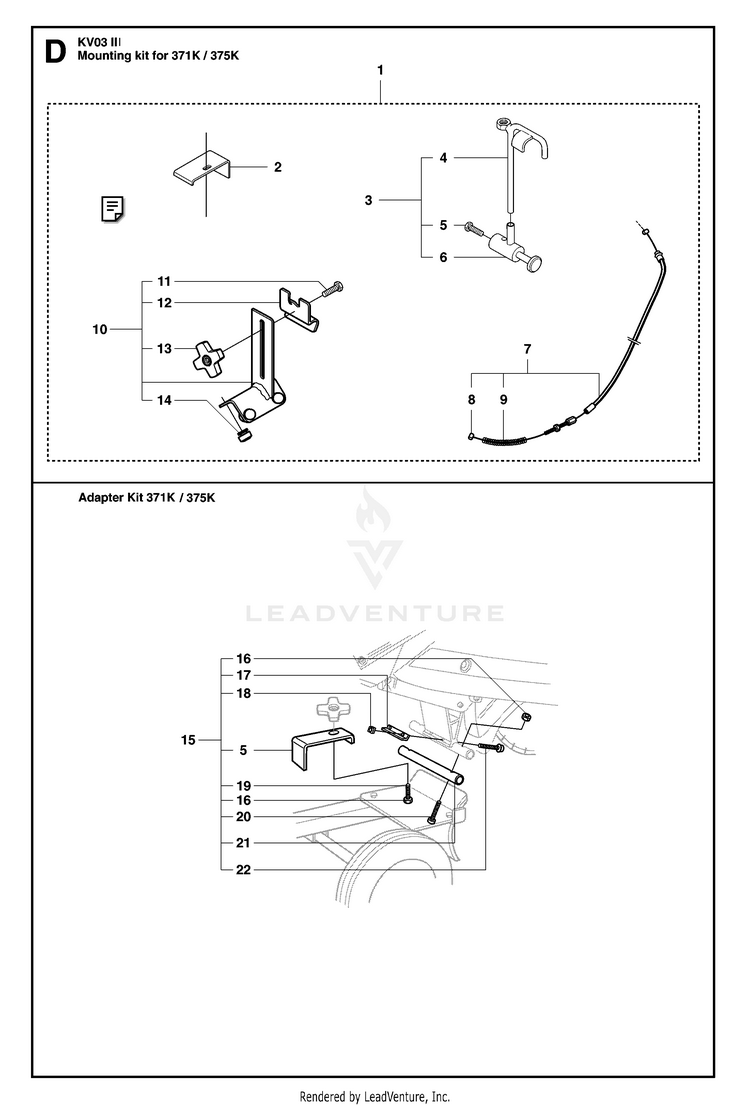

INSTALLATION ACCESSORIES

...
...
3
THROTTLE TRIGGER COMPLETE HUS-506362001
...
5
Slotted Truss Head Screw #10-32 x 5/8" HUS-725232951
...
1
371K ASSEMBLY KIT HUS-504111707
...
6
ARM HUS-506362301
...
21
PIPE HUS-506314501
...
14
BUMPER HUS-503471601
...
8
Cable Retainer HUS-506108801
...
12
LOOP HUS-506307001
...
13
KNOB HUS-506319501
...
20
SCREW HUS-725246351
...
11
SCREW 8X20 HUS-725245151
...
19
Screw HUS-725246951
...
18
LOCKNUT M5 HUS-732211401
...
4
LOOP HUS-506362201
...
16
NUT HUS-731231801
...
10
HOLDER HUS-506310501
...
7
CABLE ASSY. HUS-506361601
...
9
SPRING HUS-506205502
...
15
371K ASSEMBLY KIT HUS-504111707
...
22
SCREW MC6S 5X16 HUS-725532955
...
2
PLATE HUS-506308301
...
17
BRACKET HUS-506308101
