Husqvarna KV 03 TROLLEY (2007-07) Power Cutter

Model: KV 03 TROLLEY (2007-07)

Back To Assemblies

Save Part Not Listed?
product name

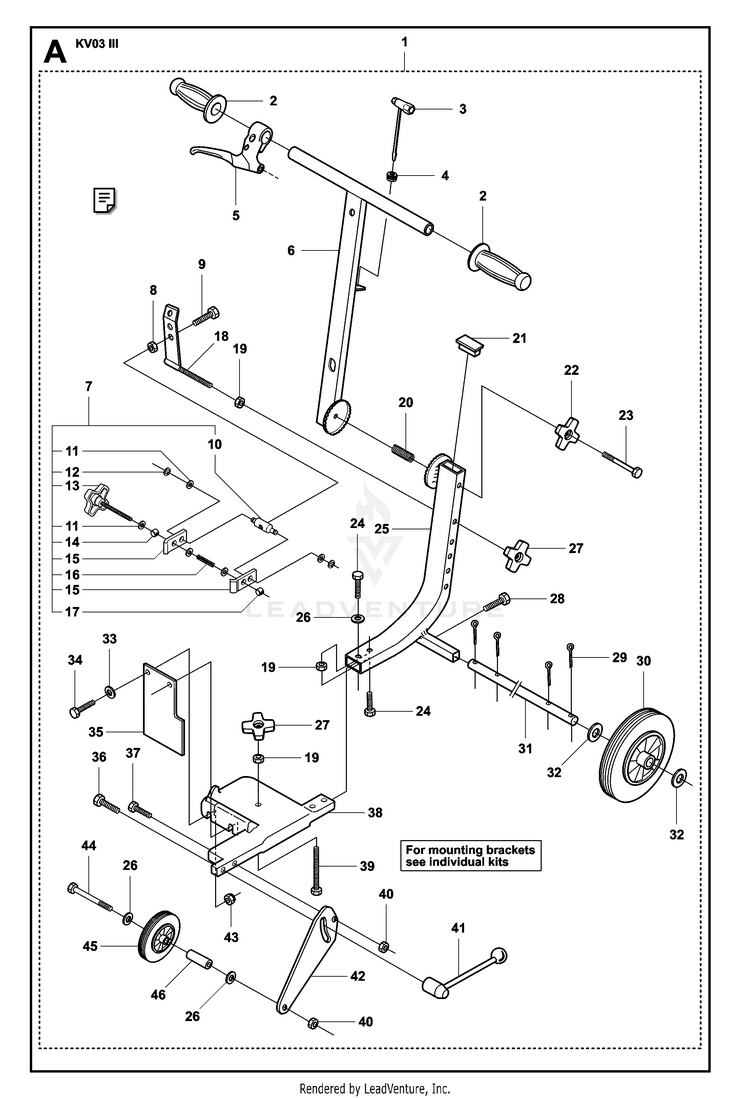

FRAME

...
...
29
SPLIT PIN HUS-721619801
...
2
Handle HUS-506222101
...
15
PAWL HUS-506361001
...
45
WHEEL HUS-506200704
...
35
Splash Guard HUS-506309601
...
33
WASHER HUS-734180951
...
12
E-RING 5 HUS-735310920
...
16
SPRING HUS-506361501
...
8
Nut HUS-731232001
...
46
SPACING SLEEVE HUS-506136602
...
10
HOLDER HUS-506361101
...
42
ARM HUS-506304701
...
27
KNOB HUS-506319501
...
39
Screw HUS-725246571
...
1
CUTTING TROLLEY HUS-506295404
...
14
NUT HUS-506361301
...
6
HANDLE HUS-506359901
...
13
STEERING WHEEL HUS-506361401
...
23
SCREW HUS-725247551
...
34
Slotted Truss Head Screw #10-32 x 5/8" HUS-725232951
...
32
WASHER HUS-531031012
...
5
HANDLE-TRIGGER HUS-506360301
...
37
SCREW HUS-725245951
...
17
NUT HUS-506361201
...
43
NUT HUS-503226504
...
18
BRACKET HUS-506305102
...
22
STEERING WHEEL HUS-506360101
...
31
Shaft HUS-506205201
...
25
FRAME WELDMENT HUS-506359801
...
41
Lock Handle HUS-506139701
...
7
BRACKET HUS-506360901
...
9
SCREW HUS-725249971
...
20
COMPRESSION SPRING HUS-506360001
...
24
SCREW HUS-725245571
...
11
WASHER - M6 HUS-734115201
...
28
SCREW 8X20 HUS-725245151
...
21
Plug HUS-506313901
...
36
SCREW HUS-725254071
...
4
ANTIVIBE ELEMENT HUS-504125017
...
38
COUNTERWEIGHT HUS-506360201
...
30
WHEEL HUS-506200703
...
40
LOCKNUT M8 HUS-732211801
...
3
COMB.TOOL HUS-501691702
...
19
NUT HUS-731231801
...
44
SCREW M8 X 70 HUS-725246551
...
26
WASHER - 25X8.5X2.3 HUS-734116541
