Husqvarna KV 03 TROLLEY (2000-03) Power Cutter

Model: KV 03 TROLLEY (2000-03)

Back To Assemblies

Save Part Not Listed?
product name

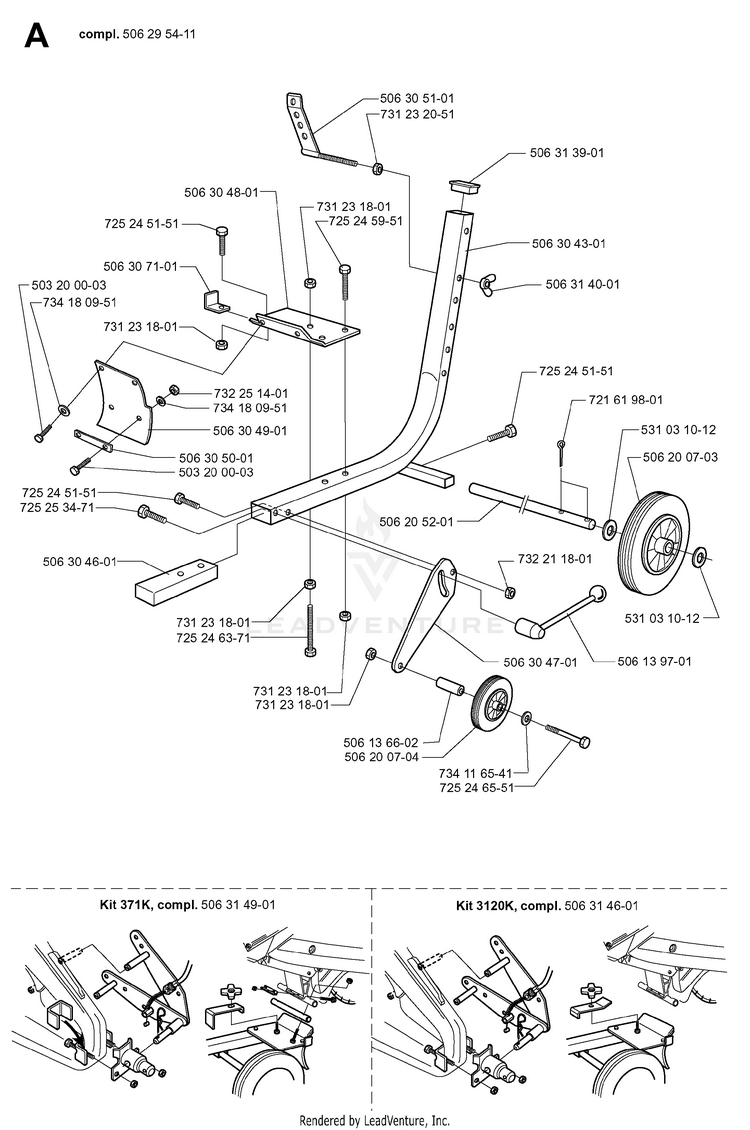

FRAME 2

...
...
506 20 52-01
Shaft HUS-506205201
...
506 30 47-01
ARM HUS-506304701
...
732 21 18-01
LOCKNUT M8 HUS-732211801
...
531 03 10-12
WASHER HUS-531031012
...
731 23 18-01
NUT HUS-731231801
...
506 31 40-01
HUS-506314001
...
506 29 54-11
CUTTING TROLLEY HUS-506295404
...
725 24 59-51
SCREW HUS-725245951
...
506 30 71-01
HUS-506307101
...
734 18 09-51
WASHER HUS-734180951
...
506 31 46-01
Bracket KIT 3120K HUS-506314601
...
725 24 65-51
SCREW M8 X 70 HUS-725246551
...
725 25 34-71
HUS-725253471
...
506 30 48-01
BRACKET HUS-506304801
...
506 30 46-01
COUNTERWEIGHT HUS-506304601
...
506 20 07-03
WHEEL HUS-506200703
...
506 13 97-01
Lock Handle HUS-506139701
...
506 31 49-01
KIT 371K HUS-506314901
...
506 20 07-04
WHEEL HUS-506200704
...
734 11 65-41
WASHER - 25X8.5X2.3 HUS-734116541
...
506 13 66-02
SPACING SLEEVE HUS-506136602
...
732 25 14-01
LOCK NUT HUS-732251401
...
506 30 49-01
HUS-506304901
...
503 20 00-03
SCREW ISO 4014 M6X12 8.8 ZPB HUS-531119208
...
725 24 51-51
SCREW 8X20 HUS-725245151
...
506 30 51-01
HUS-506305101
...
506 30 50-01
HUS-506305001
...
731 23 20-51
Nut HUS-731232001
...
725 24 63-71
HUS-725246371
...
506 31 39-01
Plug HUS-506313901
...
721 61 98-01
SPLIT PIN HUS-721619801
...
506 30 43-01
FRAME HUS-506304301
