Husqvarna K760 (2009-12) Power Cutter

Model: K760 (2009-12)

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

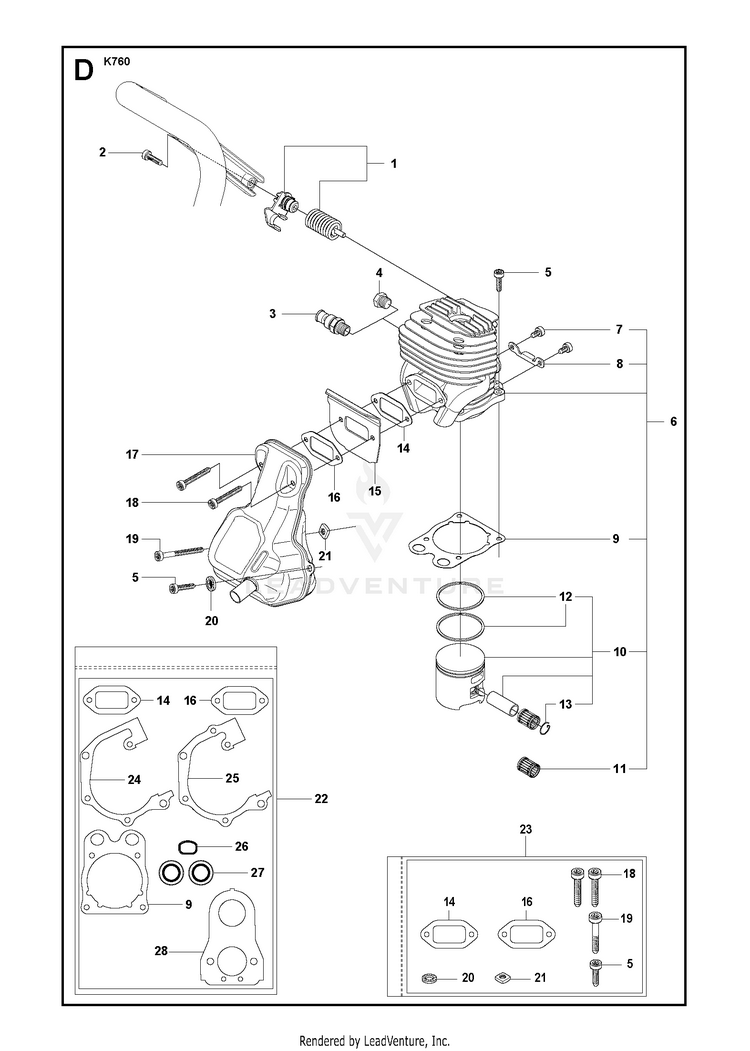

CYLINDER, PISTON & MUFFLER

...
...
11
NEEDLE BEARING PISTON PIN 12X1 HUS-577572401
...
22
GASKET KIT K760-II Incl. 9, 14, 16, 24 - 28 HUS-581357402
...
4
CYLINDER PLUG HUS-503552201
...
21
NUT HUS-503226504
...
1
SPRING HOLDER HUS-505424501
...
24
GASKET HUS-506377002
...
5
SCREW HUS-503215325
...
7
SCREW HUS-503215316
...
16
GASKET K760 HUS-588932501
...
27
SEALING RING HUS-503260204
...
20
DOUBLE WASHER HUS-503230402
...
9
GASKET HUS-506376701
...
14
GASKET HUS-506412301
...
17
MUFFLER KIT HUS-587668702
...
19
SCREW HUS-503215356
...
28
GASKET CARBURETOR HUS-506376804
...
10
PISTON ASSY Incl. 12 - 13 HUS-506372403
...
3
DECOMPRESSION VALVE HUS-503715301
...
18
SCREW HUS-503215340
...
25
GASKET HUS-506377003
...
15
PLATE HUS-588915101
...
8
BRACKET HUS-506368801
...
2
SCREW HUS-544061201
...
6
CYLINDER ASSY D51 Incl. 7 - 11 HUS-581476103
...
23
MUFFLER KIT K760-II Incl. 5, 14, 16, 18 - 21 HUS-592778301
...
12
PISTON RING HUS-522990101
...
26
INSERT HUS-544219302
...
13
WRIST PIN CLIP HUS-737431200
