Husqvarna K760 (2009-12) Power Cutter

Model: K760 (2009-12)

Back To Assemblies

Save Part Not Listed?
product name

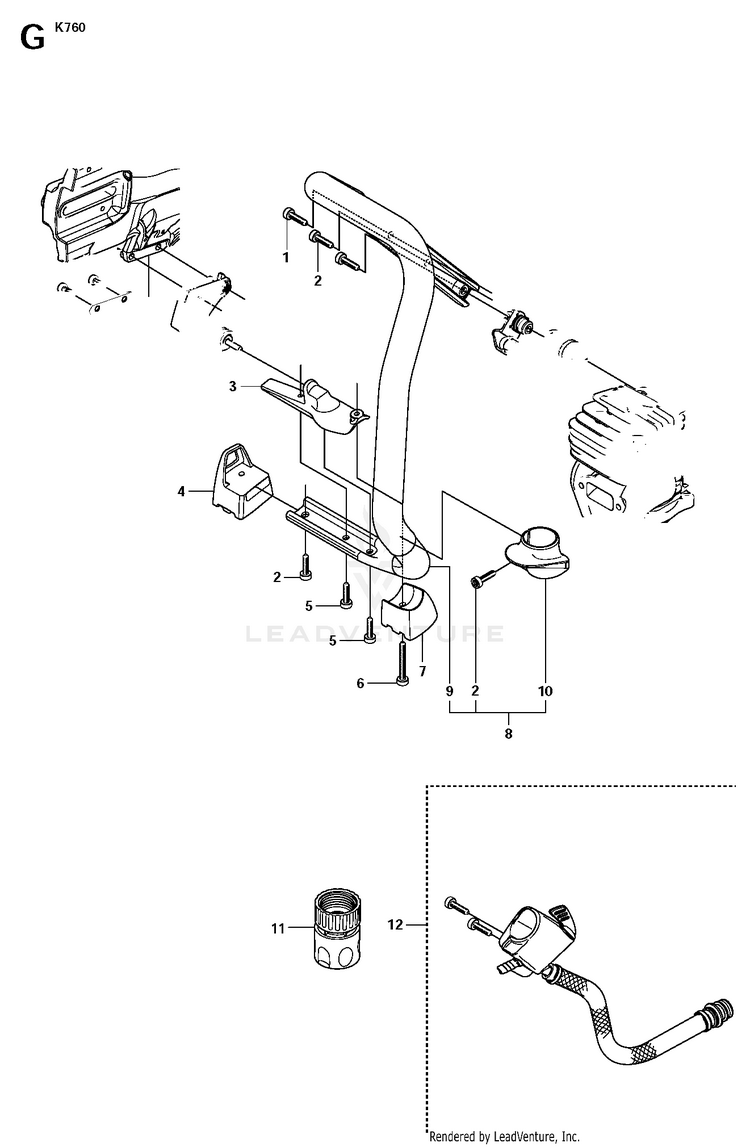

GROUND SUPPORT

...
...
8
HANDLE ASSY Incl. 4, 9-10 HUS-581110603
...
2
SCREW HUS-503215420
...
5
SCREW HUS-503215310
...
7
GROUND SUPPORT HUS-522832401
...
11
COUPLER, 1/2" HOSE W/STOP ORIG HUS-503266004
...
10
STOP HUS-506387102
...
1
SCREW HUS-544061201
...
3
SPRING RETAINER HUS-575267703
...
12
HOSE KIT, WET CUT KIT, HANDLE HUS-505095501
...
6
SCREW HUS-503215340
...
9
FRONT HANDLE HUS-506371103
...
11
FEMALE QUICK COUPLER USA, Canada HUS-503266003
...
4
GROUND SUPPORT HUS-585620502
