Husqvarna K760 (2009-12) Power Cutter

Model: K760 (2009-12)

Back To Assemblies

Save Part Not Listed?
product name

AIR FILTER

...
...
10
AIR FILTER ASSY HUS-525470602
...
7
SEALING RING HUS-503260204
...
20
PLATE, INLET ASSY HUS-544352601
...
14
FLANGE HUS-506370601
...
15
INLET PIPE HUS-525733201
...
1
GASKET KIT K760-II Incl. 2 - 8, 23 HUS-581357402
...
8
GASKET HUS-506376701
...
12
NUT HUS-503226504
...
16
SCREW. HUS-503215320
...
2
GASKET HUS-506412301
...
17
FLANGE HUS-506370501
...
21
SCREW HUS-503215356
...
22
CARBURETOR Zama C3-EL43A HUS-578243401
...
6
INSERT HUS-544219302
...
13
SCREW HUS-503215310
...
4
GASKET HUS-506377002
...
23
GASKET CARBURETOR HUS-506376804
...
19
IMPULSE HOSE HUS-586227701
...
3
GASKET K760 HUS-588932501
...
11
CARBURETOR BRACKET Incl. 12 HUS-575354001
...
9
AIR FILTER ASSY Incl. 10 HUS-574362302
...
5
GASKET HUS-506377003
...
18
INLET PIPE HUS-525733101

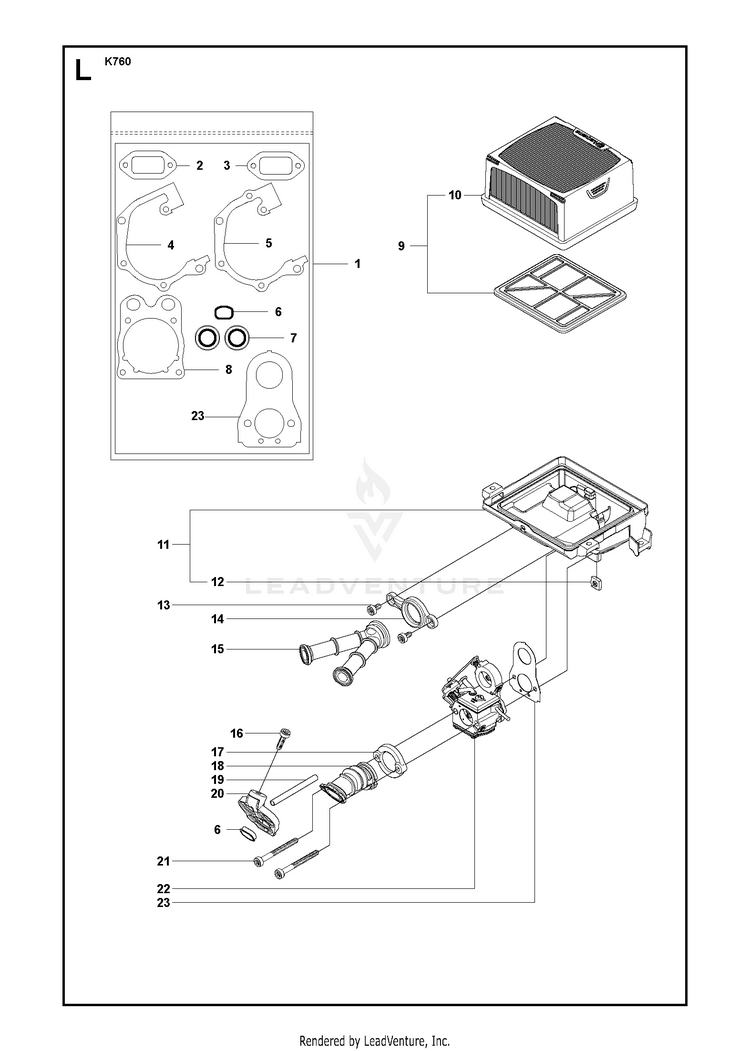

Schematic Image Zoomed
