product name

Husqvarna K760 (2009-12) Power Cutter

Model: K760 (2009-12)

Back To Assemblies

Save Part Not Listed?
product name

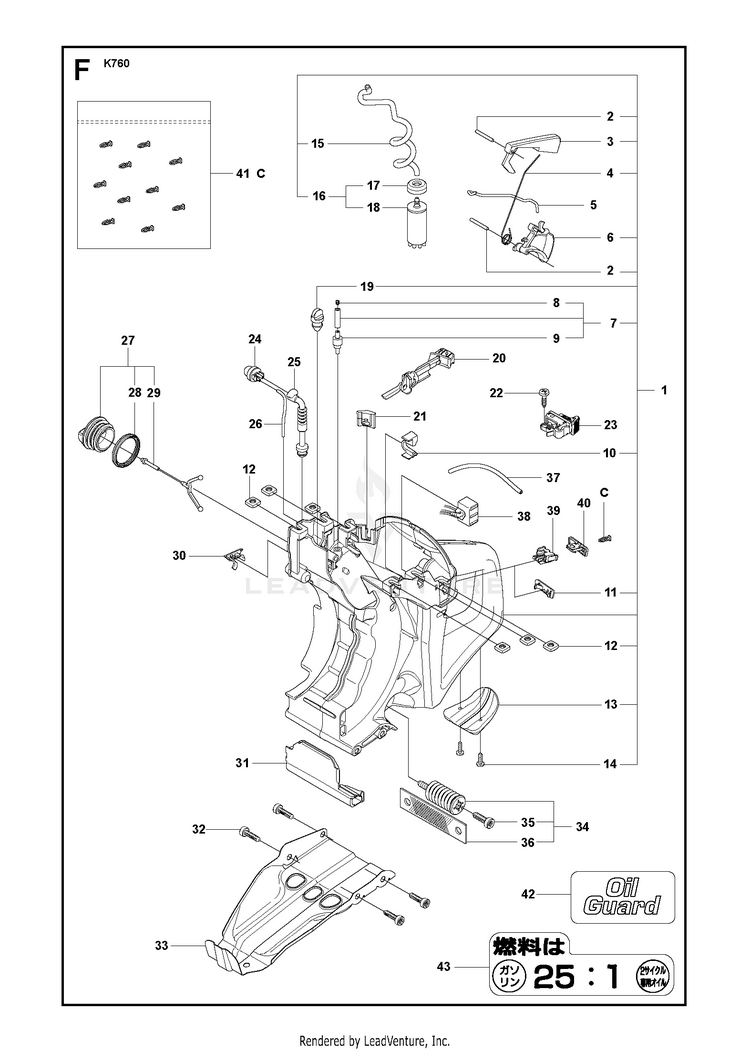

FUEL TANK

...
...
36
BAND HUS-544238201
...
34
VIBRATION ABSORBER Incl. 35 - 36 HUS-537210307
...
38
SENSORS Oil Guard HUS-544384102
...
42
DECAL, OILGUARD Oil Guard HUS-581095402
...
41
KIT BREAK PIN Oil Guard, Incl. 10 pins HUS-502233301
...
27
TANK CAP ASSY Incl. 28 - 29 HUS-506255906
...
10
HOSE CLIP HUS-544393201
...
25
FUEL HOSE, PURGE RETURN HOSE Purge HUS-505195201
...
31
HEAT SHIELD HUS-506381501
...
39
HOUSING Oil Guard HUS-501018801
...
35
SCREW HUS-544061201
...
32
SCREW HUS-503215420
...
6
THROTTLE CONTROL HUS-588086201
...
7
TANK VENT ASSY Incl. 8 - 9 HUS-506386601
...
13
GROUND SUPPORT HUS-506386702
...
4
SPRING THROTTLE TRIGGER HUS-595835701
...
37
FUEL HOSE STRAIGHT 70 Oil Guard HUS-581756137
...
5
THROTTLE ROD HUS-506371302
...
24
AIR PURGE BUBBLE Purge HUS-503936601
...
17
CAP HUS-506271101
...
15
FUEL HOSE HUS-581756203
...
33
BASE PLATE HUS-506371902
...
21
GROMMET HUS-506378001
...
8
SINTER PLUG HUS-504357201
...
29
TANK LOCK HUS-503578901
...
23
STOP SWITCH HUS-506318604
...
14
SCREW HUS-503214516
...
20
CHOKE CONTROL HUS-544229002
...
30
CAP HUS-506394602
...
9
VALVE HUS-503164001
...
18
FILTER HUS-506264101
...
28
GASKET HUS-506292101
...
12
NUT HUS-503226504
...
2
PIN HUS-720182520
...
19
SEALING PLUG HUS-574405701
...
26
FUEL HOSE Purge HUS-537042414
...
43
LABEL Japan only HUS-506313001
...
3
THROTTLE LOCKOUT HUS-588086001
...
1
FUEL TANK ASSEMBLY Incl. 2 - 4, 6 - 7, 10 - 16 HUS-593281803
...
22
SCREW HUS-503212810
...
16
Filters Incl. 17 - 18 HUS-598836601
...
40
SWITCH Oil Guard HUS-501019401
...
11
LID HUS-501371301
