Husqvarna K760 (2009-12) Power Cutter

Model: K760 (2009-12)

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

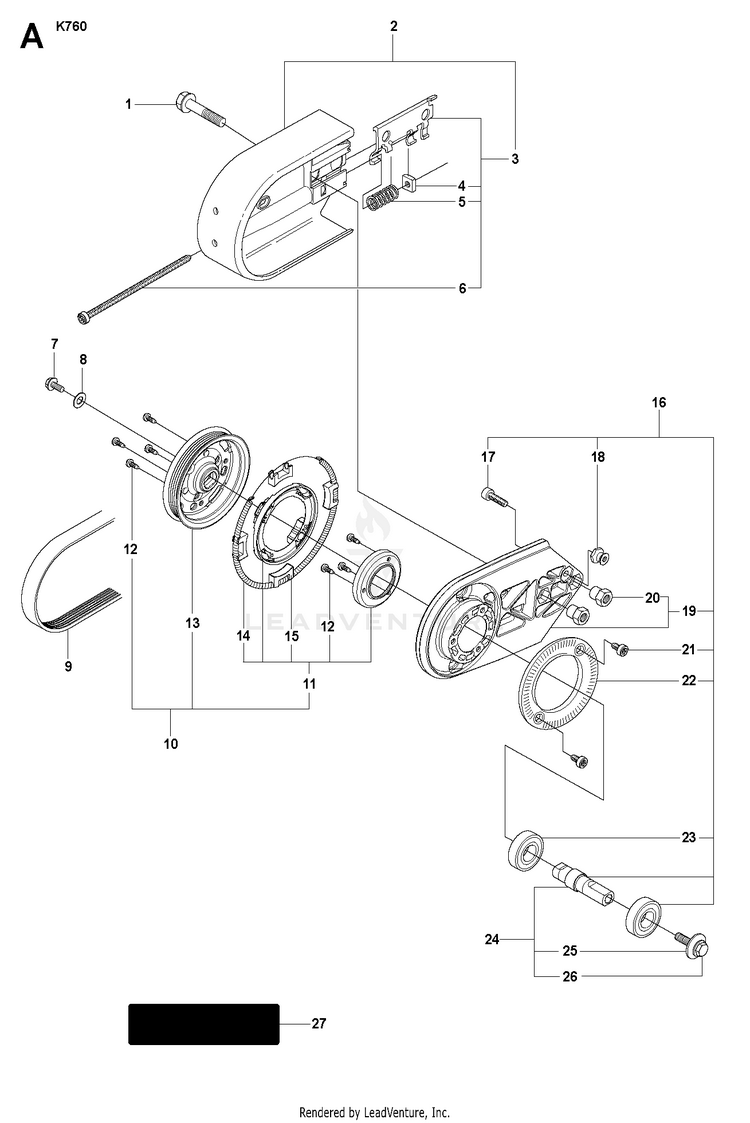

BELT GUARD & PULLEY

...
...
4
NUT HUS-506409301
...
26
SCREW HUS-581855201
...
13
PULLEY HUS-590895801
...
18
CATCH HUS-506143201
...
15
BRAKE SHOE HUS-544440402
...
9
BELT HUS-544908402
...
12
SCREW HUS-503212810
...
27
LABEL Japan only HUS-506309705
...
24
SHAFT Incl. 25 - 26 HUS-506298365
...
25
WASHER HUS-506139511
...
2
BELT GUARD Incl. 3 HUS-506393602
...
7
SCREW HUS-503200045
...
17
SCREW ITXSCM HUS-505574116
...
20
NUT HUS-506287301
...
22
FLANGE HUS-506288401
...
1
BOLT HUS-506284401
...
23
BALL BEARING HUS-503252101
...
14
DRAW SPRING HUS-544441001
...
6
SCREW HUS-503207205
...
19
BEARING HOUSING Incl. 20 HUS-581351707
...
10
PULLEY ASSY Incl. 11 - 13 HUS-588470403
...
16
BEARING HOUSING ASSY Incl. 17 - 19, 21 - 23 HUS-581351710
...
8
WASHER HUS-503230116
...
21
SCREW HUS-503215310
...
11
CASSETTE FRICTION RETARDER Incl. 12, 14 - 15 HUS-505445405
...
5
SPRING HUS-506266801
...
3
TENSIONER Incl. 4 - 6 HUS-506266604
