Husqvarna K750 (2009-07) Power Cutter

Model: K750 (2009-07)

Back To Assemblies

Save Part Not Listed?
product name

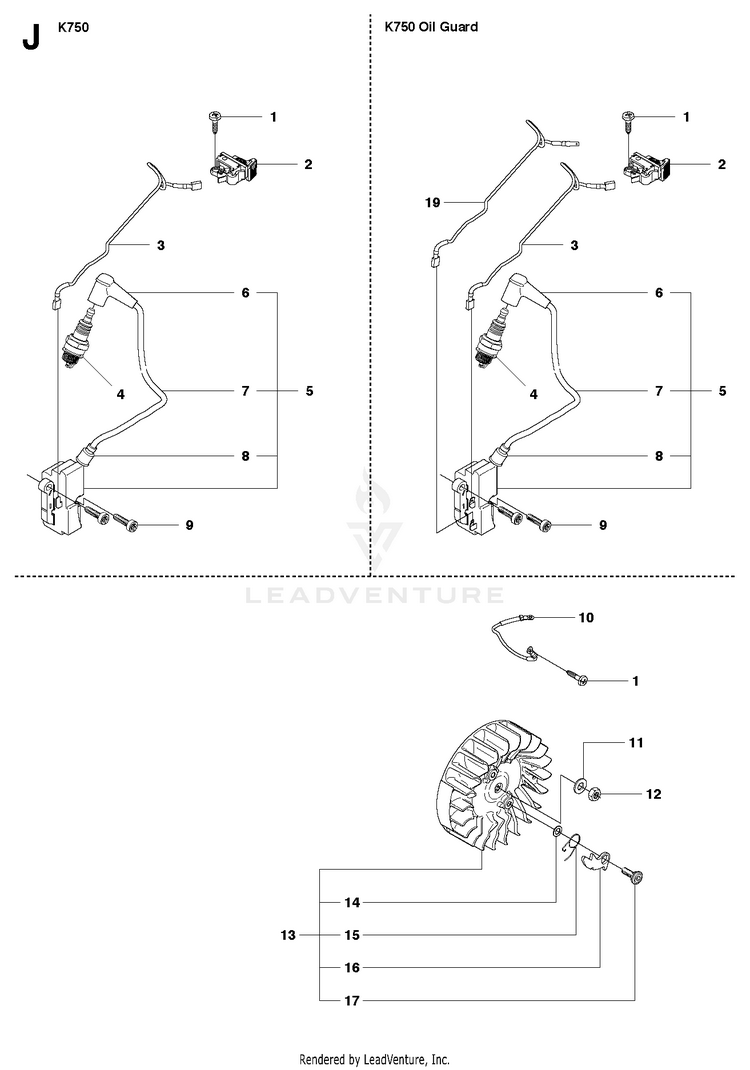

IGNITION SYSTEM 2

...
...
11
WASHER 8.4X16 HUS-503230101
...
14
WASHER HUS-503230042
...
5
IGNITION MODULE Incl. 6 - 8 HUS-580380505
...
16
PAWL HUS-501673203
...
17
SCREW M5X14 HUS-501819901
...
12
NUT M8X1 HUS-503221011
...
10
CABLE HUS-506378501
...
3
CABLE STOP SWITCH Oil Guard HUS-586497201
...
18
CABLE Oil Guard HUS-544384901
...
13
FLYWHEEL Incl. 14 - 17 HUS-506272701
...
6
SPARK PLUG CONN. KIT HUS-501485402
...
3
CABLE STOP SWITCH HUS-586497201
...
9
SCREW. HUS-503215320
...
2
STOP SWITCH HUS-506318604
...
7
CABLE STOP SWITCH HUS-506387834
...
8
INSULATING CAP HUS-505277516
...
15
SPRING HUS-501634801
...
1
SCREW HUS-503212810
...
4
PLUG SPARK (RCJ6-Y) RCJ 6 Y HUS-530030179
