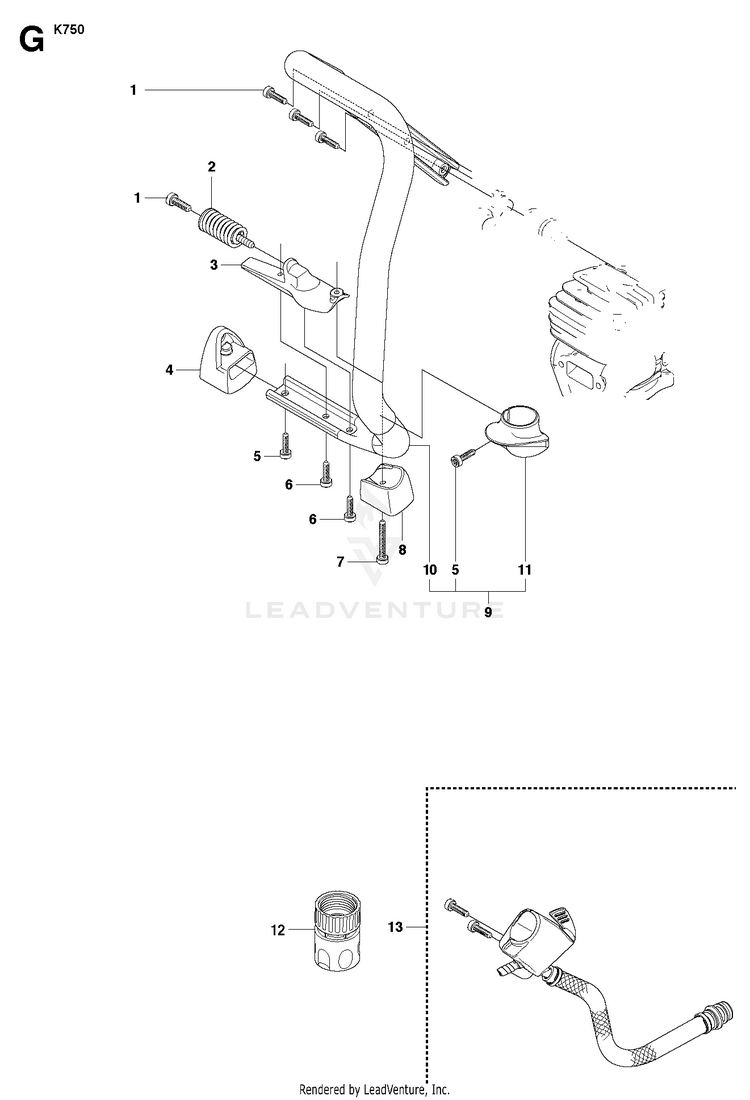

Husqvarna K750 (2009-07) Power Cutter

Model: K750 (2009-07)

Back To Assemblies

Save Part Not Listed?
product name

HANDLE 2

...
...
11
STOP HUS-506387102
...
3
SPRING RETAINER HUS-575267703
...
10
FRONT HANDLE HUS-506371103
...
13
HOSE KIT, WET CUT KIT, HANDLE HUS-505095501
...
2
ANTIVIBRATION ELEMENT HUS-537210306
...
9
HANDLE ASSY HUS-581110603
...
6
SCREW HUS-503215310
...
1
SCREW HUS-544061201
...
5
SCREW HUS-503215420
...
7
SCREW HUS-503215340
...
12
COUPLER, 1/2" HOSE W/STOP ORIG HUS-503266004
...
12
FEMALE QUICK COUPLER HUS-503266003
...
4
GROUND SUPPORT HUS-506375502
...
8
GROUND SUPPORT HUS-506375602
