Husqvarna K750 (2009-07) Power Cutter

Model: K750 (2009-07)

Back To Assemblies

Save Part Not Listed?

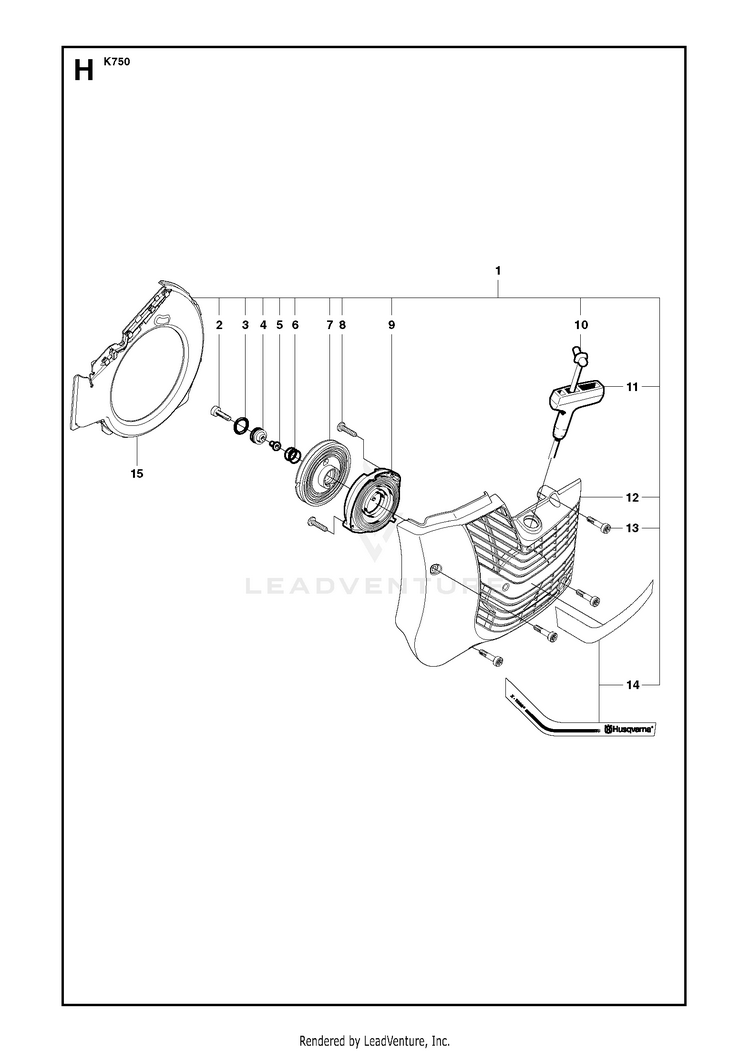

product name

STARTER 2

...
...
2
SCREW 1TXSCT HUS-510269222
...
12
STARTER COVER HUS-506369203
...
14
LABEL HUS-544890802
...
7
STARTER PULLEY HUS-506258103
...
3
O-RING HUS-740431300
...
10
STARTER ROPE 50 M 50 m HUS-506335650
...
4
SEALING HOLDER HUS-510000801
...
15
AIR CONDUCTOR HUS-544383901
...
11
Starters HUS-584257903
...
1
STARTER COMPLETE Incl. 2 - 15 HUS-574362006
...
10
STARTER ROPE HUS-506335615
...
6
SPRING HUS-506253001
...
13
SCREW HUS-503215321
...
5
SLEEVE HUS-506263101
...
9
RETURN SPRING HUS-506258901
...
8
SCREW HUS-503212810
