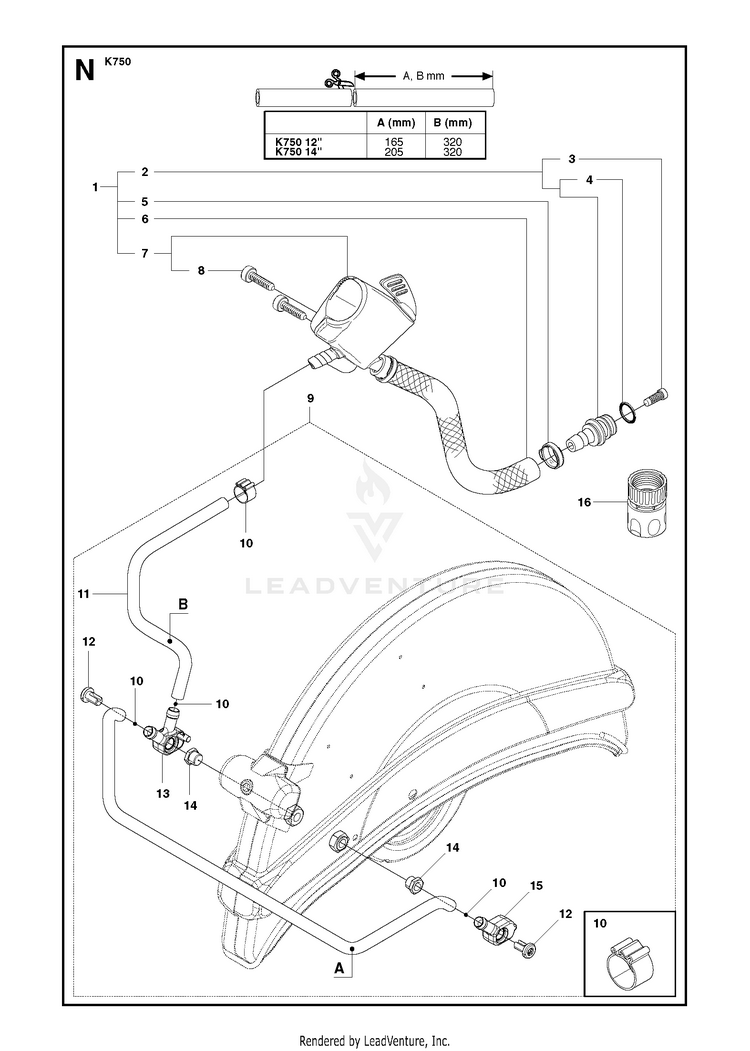

Husqvarna K750 (2009-07) Power Cutter

Model: K750 (2009-07)

Back To Assemblies

Save Part Not Listed?
product name

HOSE 2

...
...
4
RETAINING RING HUS-740421000
...
14
NIPPLE HUS-504634201
...
2
NIPPLE Incl. 3, 4 HUS-506295702
...
10
HOSE CLAMP HUS-506498701
...
1
HOSE KIT, WET CUT KIT, HANDLE Incl. 2, 5 - 7 HUS-505095501
...
15
HOUSING WHEEL GUARD NOZZLE LF HUS-504634503
...
5
HOSE CLAMP HUS-576129701
...
12
SCREW HUS-504634601
...
11
HOSE PVC 620MM 620 mm HUS-581893506
...
3
FILTERS HUS-589780701
...
16
FEMALE QUICK COUPLER USA HUS-503266003
...
9
HOSE KIT WHEEL GUARD SPARE PAR Incl. 10 - 15 HUS-505095416
...
16
COUPLER, 1/2" HOSE W/STOP ORIG HUS-503266004
...
8
SCREW HUS-503215420
...
7
VALVE ASSY Incl. 8 HUS-506386012
...
13
HOUSING HUS-504634401
...
6
HOSE HUS-581893601
