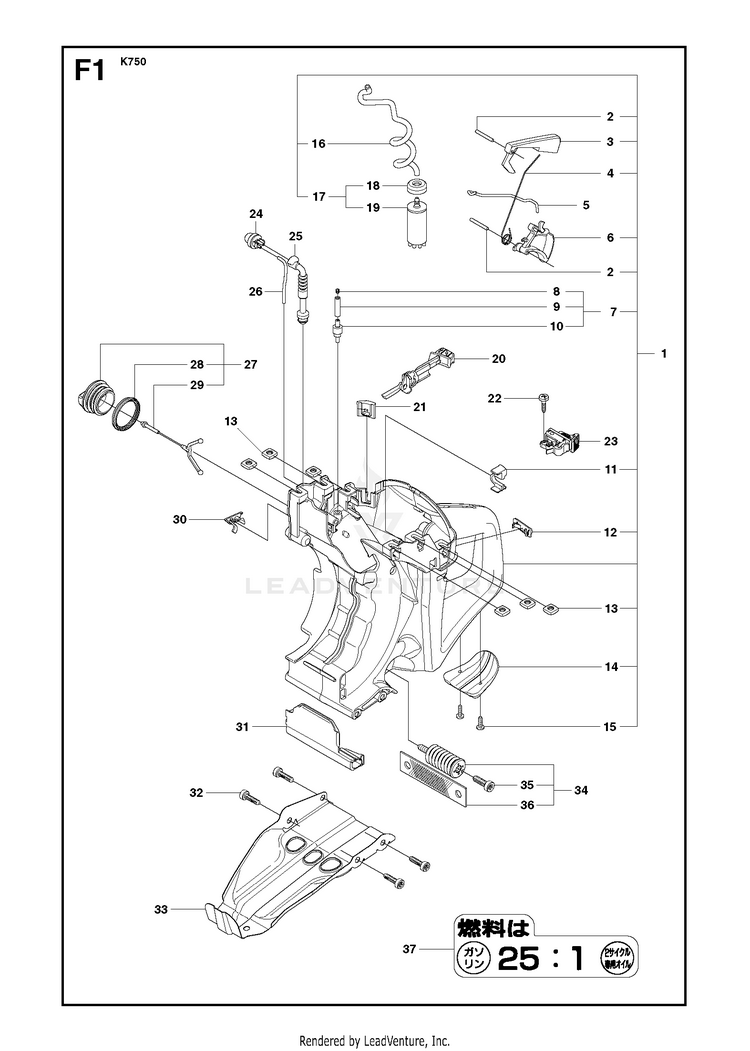

Husqvarna K750 (2009-07) Power Cutter

Model: K750 (2009-07)

Back To Assemblies

Save Part Not Listed?
product name

FUEL TANK 4

...
...
21
GROMMET HUS-506378001
...
17
Filters Incl. 18 - 19 HUS-598836601
...
1
FUEL TANK ASSEMBLY Incl. 2 - 4, 6 - 7, 11 - 17 HUS-593281803
...
33
BASE PLATE HUS-506371902
...
36
BAND HUS-544238201
...
5
THROTTLE ROD HUS-506371302
...
14
GROUND SUPPORT HUS-506386702
...
23
STOP SWITCH HUS-506318604
...
34
VIBRATION ABSORBER HUS-537210307
...
4
SPRING THROTTLE TRIGGER HUS-595835701
...
12
LID HUS-501371301
...
31
HEAT SHIELD Incl. 35 - 36 HUS-506381501
...
8
SINTER PLUG HUS-504357201
...
11
HOSE CLIP HUS-544393201
...
15
SCREW HUS-503214516
...
29
TANK LOCK HUS-503578901
...
19
FILTER HUS-506264101
...
13
NUT HUS-503226504
...
26
FUEL HOSE Purge HUS-537042414
...
1
Fuel Tank Incl. 2 - 4, 6 - 7, 11 - 17, Purge HUS-506386508
...
35
SCREW HUS-544061201
...
32
SCREW HUS-503215420
...
30
CAP HUS-506394602
...
9
Fuel Hose HUS-544324929
...
18
CAP HUS-506271101
...
28
GASKET HUS-506292101
...
24
AIR PURGE BUBBLE Purge HUS-503936601
...
2
PIN HUS-720182520
...
10
VALVE HUS-503164001
...
25
FUEL HOSE, PURGE RETURN HOSE Purge HUS-505195201
...
37
LABEL Japan only HUS-506313001
...
20
CHOKE CONTROL HUS-544229002
...
27
TANK CAP ASSY Incl. 28 - 29 HUS-506255906
...
3
THROTTLE LOCKOUT HUS-588086001
...
16
FUEL HOSE HUS-581756203
...
6
THROTTLE CONTROL HUS-588086201
...
22
SCREW HUS-503212810
...
7
TANK VENT ASSY Incl. 8 - 10 HUS-506386601
