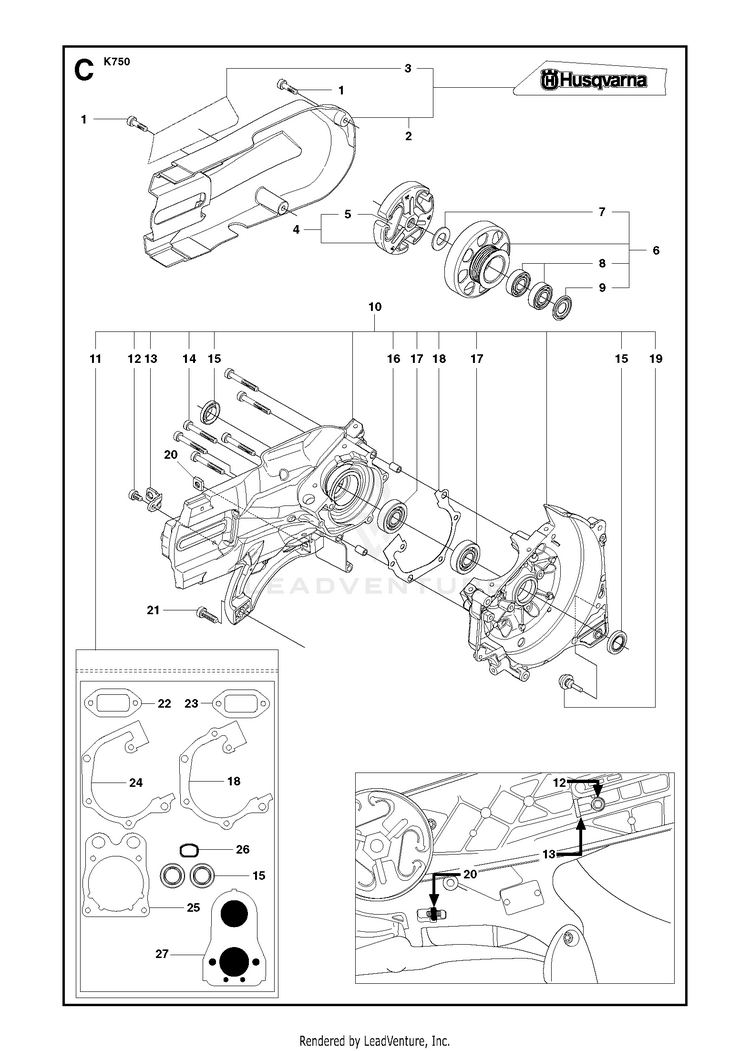

Husqvarna K750 (2009-07) Power Cutter

Model: K750 (2009-07)

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

CRANKCASE 2

...
...
16
GUIDE BUSHING HUS-593806001
...
18
GASKET HUS-506377003
...
27
GASKET CARBURETOR HUS-506376804
...
24
GASKET HUS-506377002
...
11
GASKET KIT K760-II Incl. 15, 18, 22 - 27 HUS-581357402
...
15
SEALING RING HUS-503260204
...
26
INSERT HUS-544219302
...
6
DRIVING PULLEY KIT Incl. 7 - 9 HUS-590805901
...
10
Crankcases Incl. 11 - 19 HUS-581721912
...
23
GASKET K760 HUS-588932501
...
21
SCREW HUS-544061201
...
17
BALL BEARING-6202-C3 SKF HUS-738220225
...
3
LABEL HUS-544891101
...
2
BELT GUARD REAR ASSY WITH LABE Incl. 3 HUS-581485901
...
14
SCREW HUS-503215341
...
22
GASKET HUS-506412301
...
8
HOLDER BALL BEARING HUS-525831801
...
5
CLUTCH SPRING HUS-503744301
...
12
SCREW HUS-501981001
...
20
NUT HUS-503226504
...
25
GASKET HUS-506376701
...
9
DUST COVER HUS-506316901
...
19
BUFFER HUS-503846101
...
1
SCREW HUS-503215321
...
7
WASHER HUS-503230070
...
13
BRACKET HUS-544007801
...
4
CLUTCH ASSY Incl. 5 HUS-503744406
