Husqvarna K3000 WET (2009-03) Power Cutter

Model: K3000 WET (2009-03)

Back To Assemblies

Save Part Not Listed?

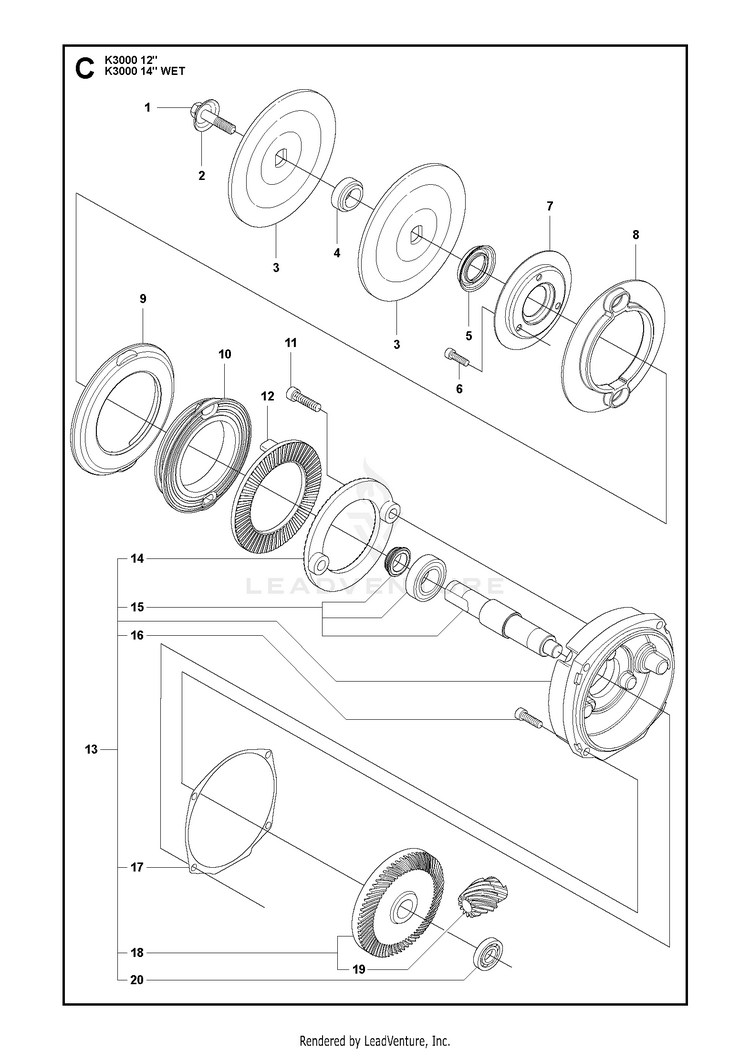

product name

GEAR HOUSING

...
...
12
FLANGE HUS-506266401
...
4
BUSHING Diam 20mm HUS-506379620
...
15
SHAFT KIT K3000 HUS-544403302
...
4
BUSHING " Diam 25,4mm " HUS-578398201
...
6
SCREW ITXSCM HUS-505574116
...
4
BUSHING " Diam 22,2mm " HUS-506379622
...
3
WASHER HUS-506028701
...
5
SEALING HUS-506320601
...
7
FLANGE HUS-506266501
...
4
BUSHING-30MM " Diam 30,5mm " HUS-506028830
...
14
FLANGE HUS-506288401
...
2
WASHER HUS-506139511
...
16
SCREW ITSXCM HUS-505574120
...
13
Gears HUS-544403205
...
17
GASKET HUS-523056201
...
19
PINION HUS-506098602
...
10
LINING HUS-506266302
...
1
SCREW HUS-581855201
...
18
GEAR CPL. HUS-531031875
...
20
BALL BEARING HUS-738220015
...
11
SCREW HUS-503215312
