Husqvarna K3000 WET (2008-05) Power Cutter

Model: K3000 WET (2008-05)

Back To Assemblies

Save Part Not Listed?
product name

HANDLE 2

...
...
5
SCREW HUS-505530311
...
12
PRINTED CIRCUIT ASSY 120V 110V HUS-575890003
...
2
CABLE INCL. PLUG EU (NO PRCD) 230V HUS-510222809
...
1
CABLE 230V HUS-505443303
...
4
SPRING WASHER 5.3X10 HUS-735114650
...
2
CABLE 110V UK HUS-510181401
...
6
CABLE SLEEVE 230V HUS-577411801
...
8
LOCKING BUTTON K3000 HUS-589657302
...
9
SCREW HUS-724132755
...
2
CABLE US 15A 110V JP, USA HUS-510222810
...
14
HANDLE ASSY HUS-544904502
...
3
SCREW HUS-531031902
...
13
SWITCH HUS-531031883
...
12
PRINTED CIRCUIT ASSY 230V 230V HUS-575890102
...
1
CABLE 110V JP, USA HUS-510181302
...
11
CLAMP HUS-531031887
...
10
SCREW HUS-503212001
...
7
SPRING HUS-577481901

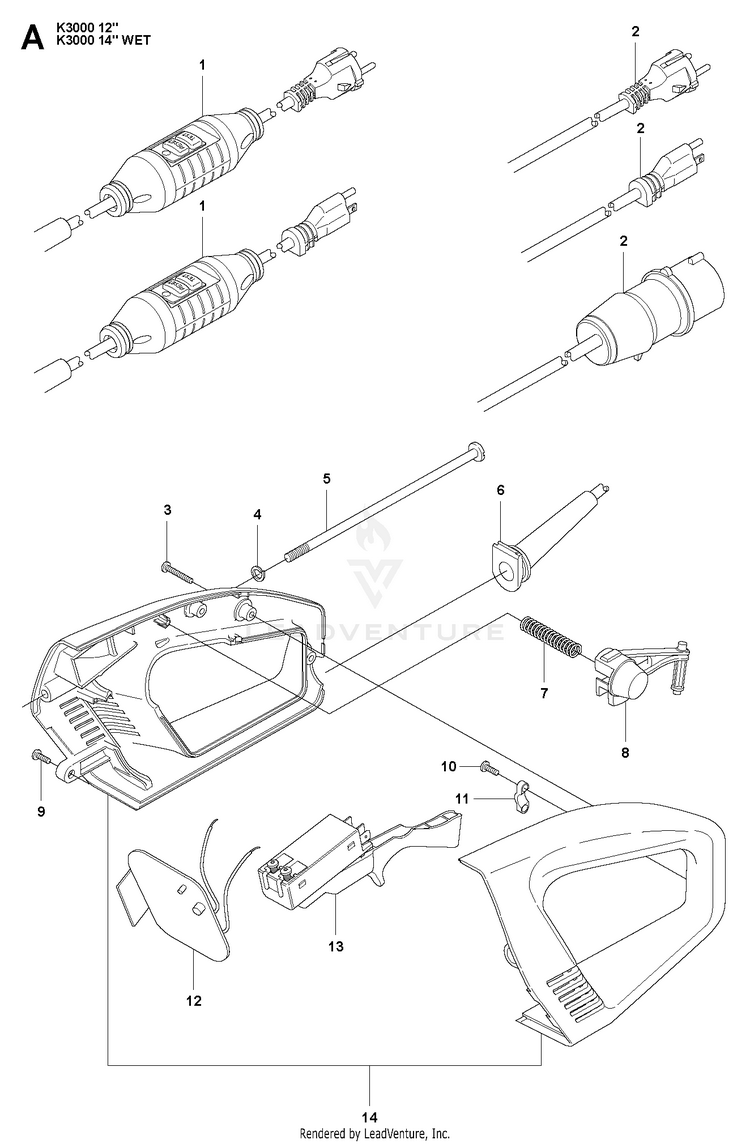

Schematic Image Zoomed
