Husqvarna K3000 WET (2008-05) Power Cutter

Model: K3000 WET (2008-05)

Back To Assemblies

Save Part Not Listed?
product name

MOTOR HOUSING

...
...
12
MOTOR HOUSING HUS-577670101
...
3
WASHER HUS-734113601
...
23
LABEL INSTRUCTION USA USA HUS-506384314
...
20
SCREW HUS-506225301
...
11
LID Wet HUS-505122401
...
9
LABEL Wet HUS-544903304
...
17
CARBON BRUSH HUS-506225804
...
15
LID HUS-544899401
...
14
SCREW HUS-505530311
...
23
LABEL USA Wet HUS-506384324
...
4
GROUNDING PIPE HUS-531031891
...
9
LABEL Electric HUS-544903301
...
18
SCREW HUS-723228581
...
22
WARNING DECAL HUS-544984001
...
2
Lock Washer HUS-735213601
...
19
AIR STREAM DIRECTOR HUS-505530307
...
1
SCREW HUS-724128759
...
21
STATOR ASSY DM280 K3000 230V 230V HUS-579504904
...
21
STATOR ASSY 100 - 120V HUS-579504903
...
5
SCREW HUS-724129101
...
7
LOCKNUT M5 HUS-732211401
...
6
SPRING WASHER 4.3X8 HUS-735113650
...
8
SPRING WASHER 5.3X10 HUS-735114650
...
16
BRUSH HOLDER KIT Incl. 17, 18 HUS-581058502
...
10
SCREW HUS-729577601
...
11
LID HUS-544900201
...
23
Label JP HUS-506384415
...
13
LABEL HUS-544903302

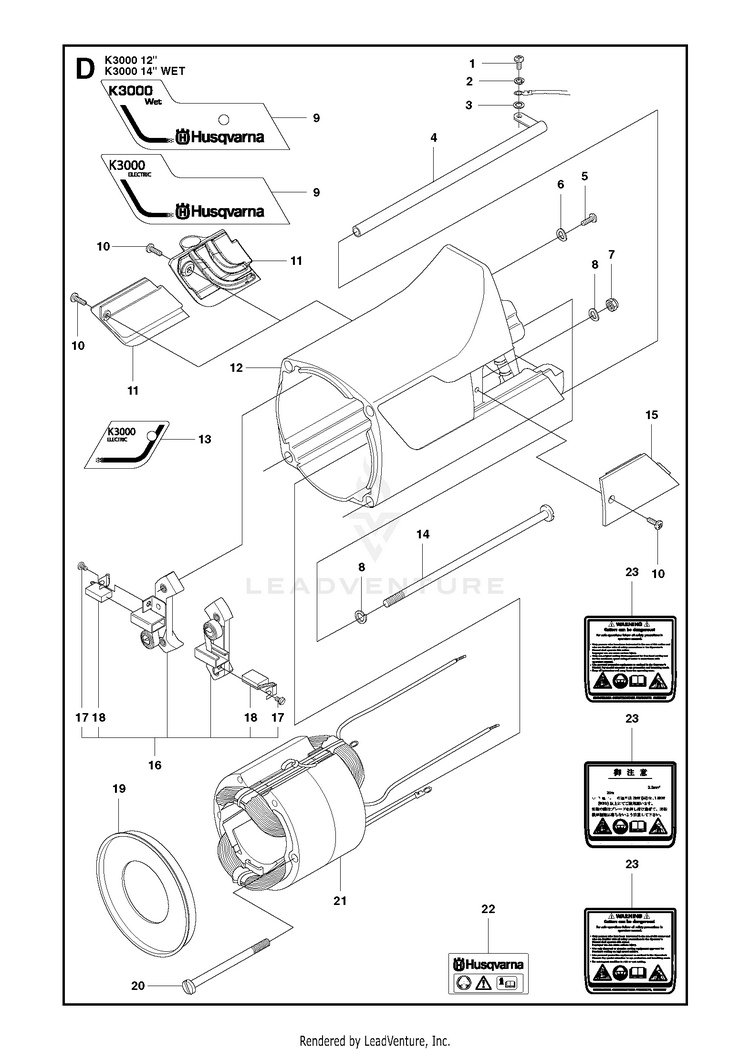

Schematic Image Zoomed
