Husqvarna K3000 WET (2008-05) Power Cutter

Model: K3000 WET (2008-05)

Back To Assemblies

Save Part Not Listed?
product name

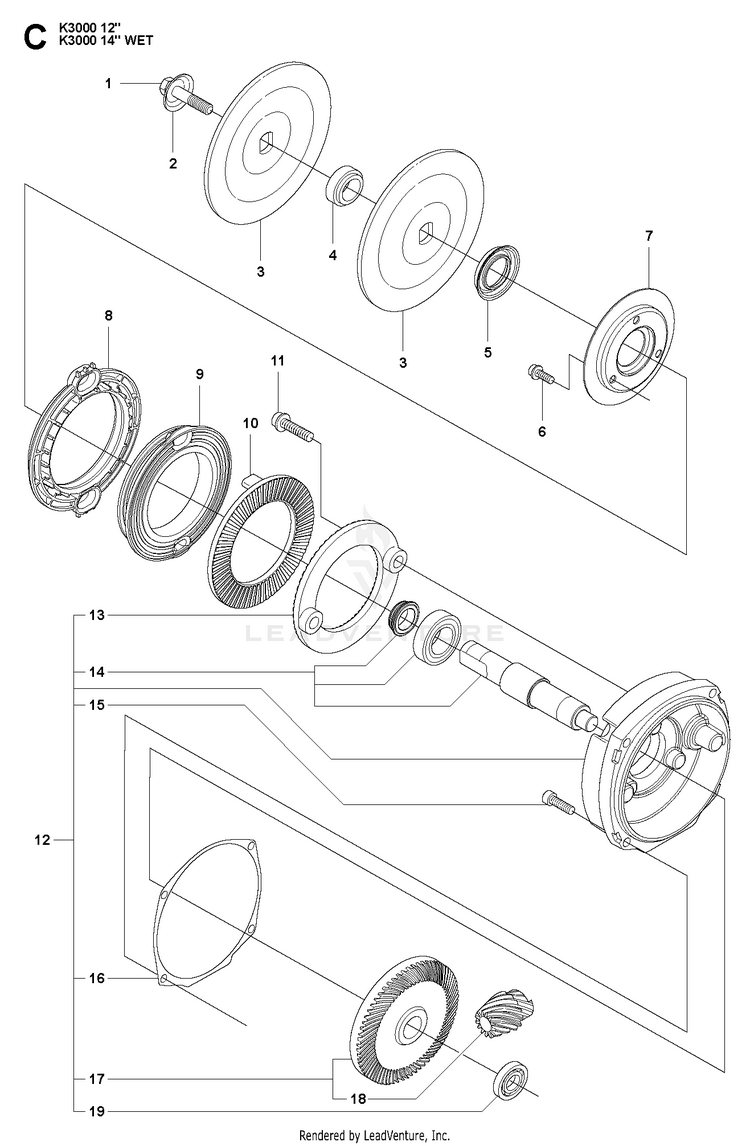

GEARS

...
...
14
SHAFT KIT K3000 HUS-544403302
...
12
Gears Incl. 13 - 17, 19 HUS-544403205
...
18
PINION HUS-506098602
...
16
GASKET HUS-523056201
...
5
SEALING HUS-506320601
...
15
SCREW ITSXCM HUS-505574120
...
4
BUSHING Diam 25,4mm HUS-578398201
...
1
SCREW HUS-581855201
...
11
SCREW HUS-503200712
...
4
BUSHING Diam 20mm HUS-506379620
...
13
FLANGE HUS-506288401
...
17
GEAR CPL. Incl. 18 HUS-531031875
...
8
DISTANSRING SPRSKYDD "12"" only" HUS-506304201
...
2
WASHER HUS-506139511
...
4
BUSHING-30MM Diam 30,5mm HUS-506028830
...
19
BALL BEARING HUS-738220015
...
7
FLANGE HUS-506266501
...
4
BUSHING Diam 22,2mm HUS-506379622
...
10
FLANGE HUS-506266401
...
3
WASHER HUS-506028701
...
9
LINING HUS-506266302
...
6
SCREW MC6S 5X16 HUS-725532955
