Husqvarna K3000 WET (2008-05) Power Cutter

Model: K3000 WET (2008-05)

Back To Assemblies

Save Part Not Listed?
product name

HOSE

...
...
18
NIPPLE HUS-504634201
...
20
HOSE 300 mm HUS-506606807
...
10
SCREW MC6S 5X16 HUS-725532955
...
9
LOCKNUT M5 HUS-732211401
...
5
WASHER HUS-531074260
...
12
NIPPLE HUS-589996601
...
15
HOSE PVC 720MM 720 mm HUS-581893508
...
3
FILTERS HUS-589780701
...
11
VALVE HUS-576258001
...
16
SCREW HUS-504634601
...
8
NEEDS DESCRIPTION Incl. 9 - 10 HUS-510205101
...
1
HOSE ASSY K3000 WET Incl. 2, 5 - 7 HUS-576198701
...
21
FEMALE QUICK COUPLER USA HUS-503266003
...
6
FLOW CONTROL HUS-506486101
...
13
HOSE KIT Incl. 14 - 20 HUS-505095402
...
21
COUPLER, 1/2" HOSE W/STOP ORIG HUS-503266004
...
7
HOSE ASSY K3000 WET HUS-576198701
...
2
KIT NIPPLE Incl. 3, 4 HUS-510112001
...
17
HOUSING HUS-505115501
...
4
RETAINING RING HUS-740421000
...
19
HOUSING WHEEL GUARD NOZZLE LF HUS-504634503
...
14
HOSE CLAMP HUS-506498701

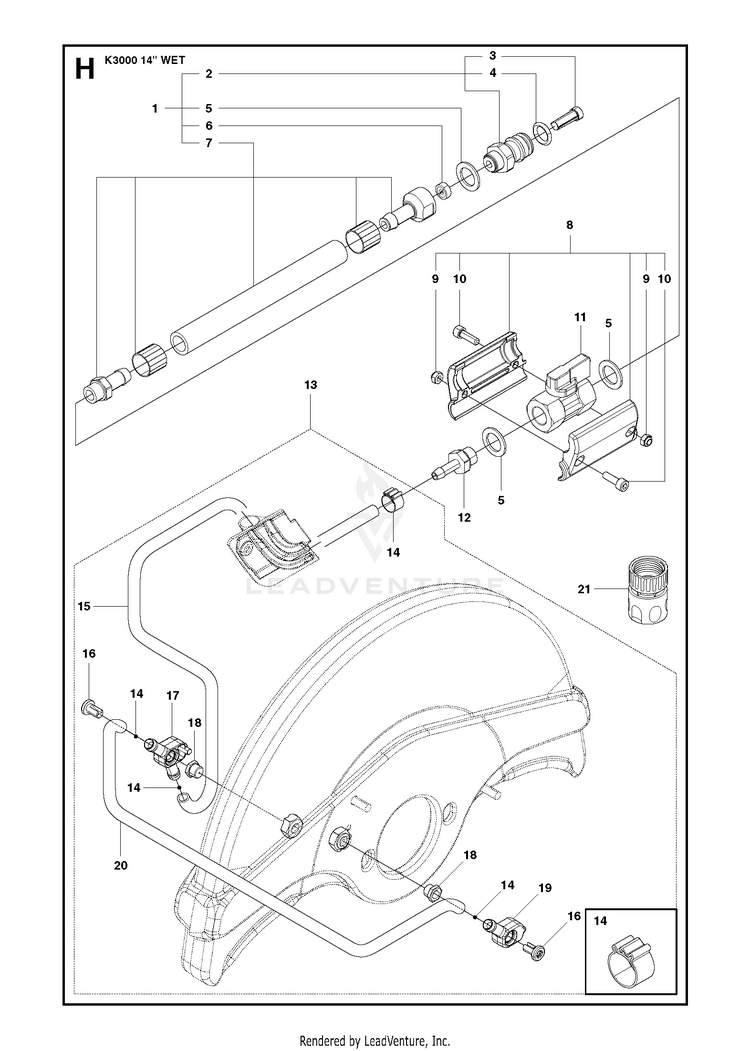

Schematic Image Zoomed
