Husqvarna K1250 (2008-01) Power Cutter

Model: K1250 (2008-01)

Back To Assemblies

Save Part Not Listed?
product name

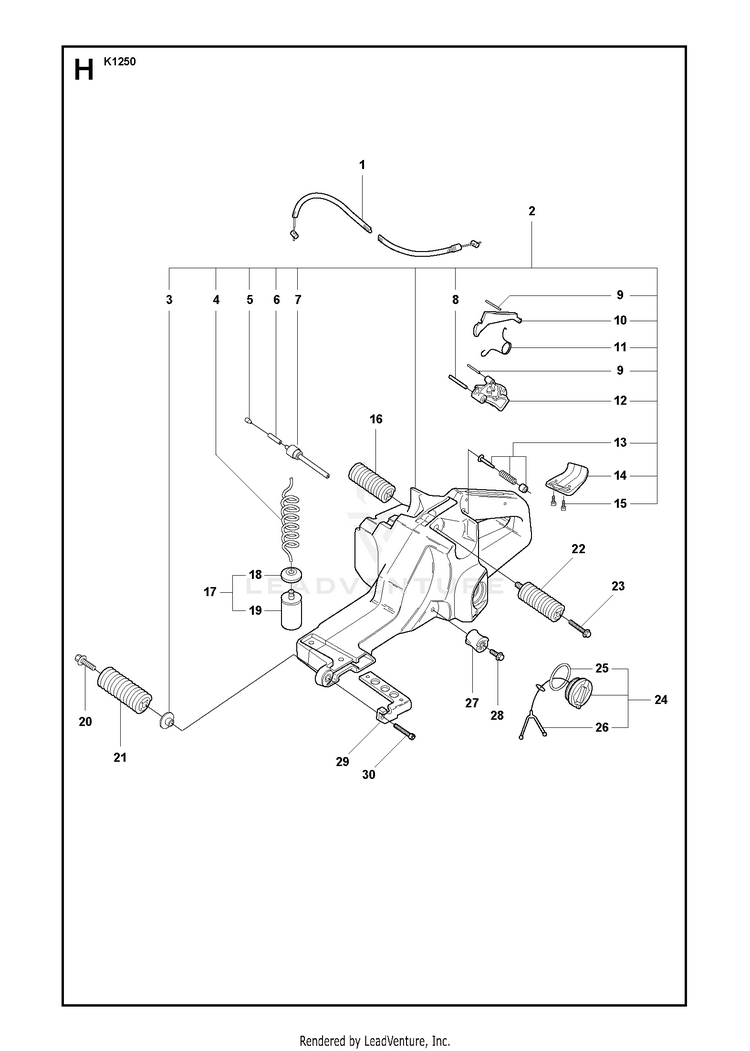

FUEL TANK & HANDLE

...
...
3
BUSHING HUS-503140801
...
28
SCREW HUS-503200712
...
8
PIN 4 X 35 HUS-720127806
...
11
SPRING HUS-503131801
...
1
THROTTLE WIRE HUS-506289801
...
24
TANK CAP ASSY HUS-506255906
...
14
GUARD ** HUS-506233401
...
20
SCREW HUS-503200225
...
26
TANK LOCK HUS-503578901
...
17
Filters HUS-598836601
...
21
ANTIVIBE ELEMENT HUS-503132701
...
6
HOSE HUS-581756105
...
23
SCREW MC6S 6X16 HUS-725536855
...
22
ANTIVIBE ELEMENT HUS-503132501
...
29
PLATE HUS-503140501
...
13
THROTTLE CATCH,KIT HUS-503142301
...
4
KIT HOSE SPIRAL 300 HUS-591375201
...
5
SINTER PLUG HUS-504357201
...
2
Tanks HUS-582625804
...
25
GASKET HUS-506292101
...
15
SCREW HUS-503214516
...
9
PIN HUS-720182520
...
10
THROTTLE CATCH HUS-503131602
...
18
CAP HUS-506271101
...
19
FILTER HUS-506264101
...
30
SCREW HUS-503200230
...
7
VENTS HUS-590690601
...
12
THROTTLE LEVER HUS-503133602
...
16
ANTIVIBE ELEMENT HUS-503132601
...
27
ANTIVIBE ELEMENT HUS-501814702
