Husqvarna K1250 (2008-01) Power Cutter

Model: K1250 (2008-01)

Back To Assemblies

Save Part Not Listed?
product name

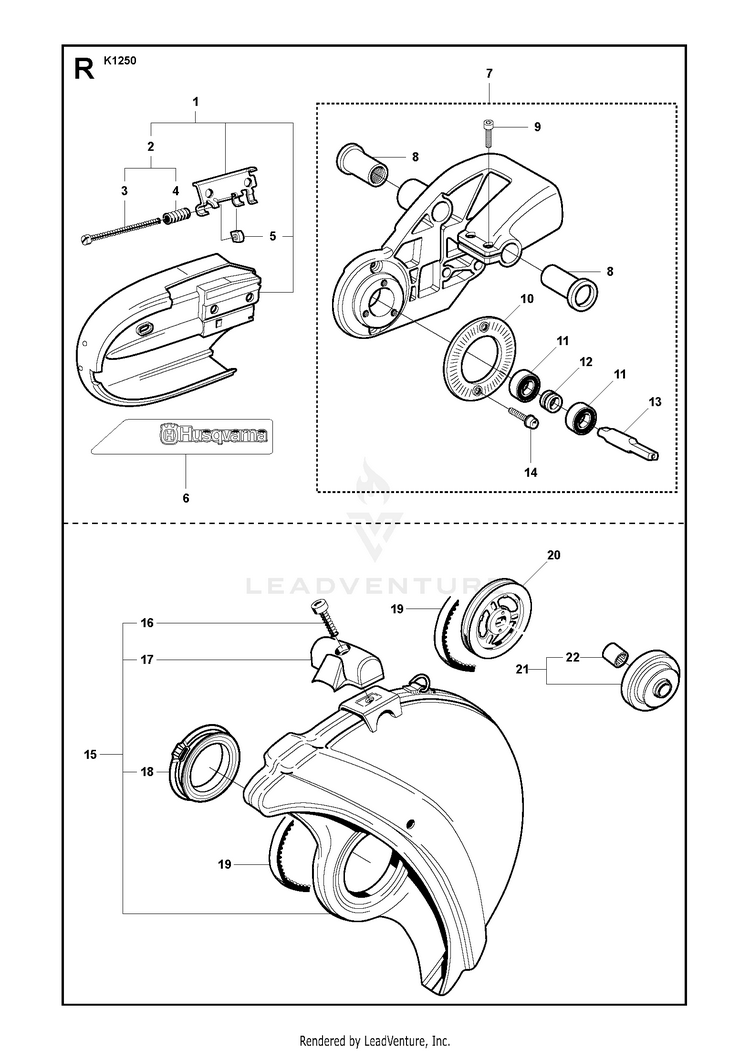

BELT GUARD & PULLEY 2

...
...
2
TENSIONER HUS-506266603
...
15
WHEEL GUARD ASSY 16" CHROME "RAIL 16""" HUS-506340556
...
10
FLANGE HUS-506288401
...
7
BEARING HOUSING "RAIL 16"" USA" HUS-544887511
...
20
PULLEY HUS-506354701
...
6
LABEL HUS-544873601
...
14
SHAFT HUS-506298363
...
1
PROTECTOR "RAIL 16""" HUS-506279204
...
7
BEARING HOUSING ASSY K1260RAIL "RAIL 16""" HUS-576665707
...
15
HEEL GUARD ASSY 14" CHROME "RAIL 14""" HUS-506340554
...
19
BELT "RAIL 16""" HUS-506372728
...
3
SCREW HUS-503203011
...
4
SPRING HUS-506266801
...
18
LINING HUS-506266302
...
13
SPACER HUS-506070801
...
11
BALL BEARING HUS-503252101
...
7
BEARING HOUSING "RAIL 14""" HUS-544887501
...
12
SCREW HUS-503200712
...
21
Pulleys "RAIL 16""" HUS-587890201
...
17
HANDLE HUS-506344602
...
9
SCREW HUS-503200216
...
22
SUPPORT BUSHING HUS-503253801
...
1
PROTECTOR "RAIL 14""" HUS-506279203
...
19
BELT "RAIL 14""" HUS-506372721
...
16
SCREW ITXSCM HUS-525824902
...
8
SLEEVE HUS-506227501
...
21
BELT POLY-V ASSY K1250 16"RAIL "RAIL 14""" HUS-540018403
...
5
NUT HUS-503226601
