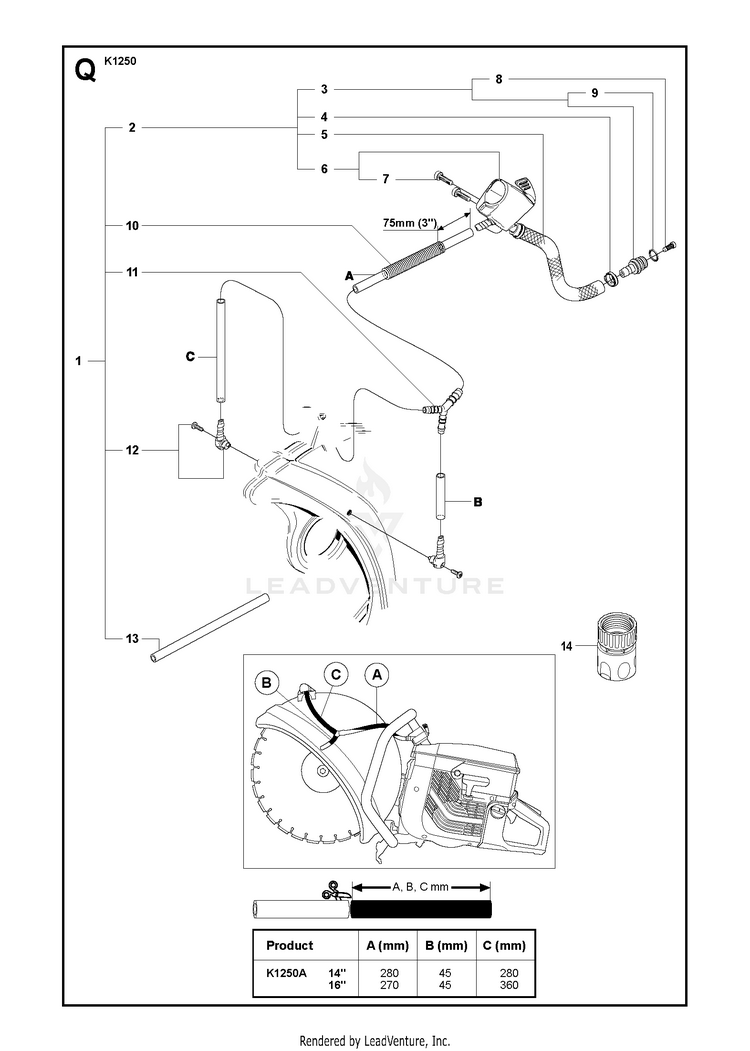

Husqvarna K1250 (2008-01) Power Cutter

Model: K1250 (2008-01)

Back To Assemblies

Save Part Not Listed?
product name

VALVES

...
...
12
NIPPLE HUS-506295601
...
5
HOSE HUS-581893601
...
11
CONNECTOR HUS-506328701
...
3
NIPPLE HUS-506295702
...
10
SPRING HUS-506352701
...
1
WATER HOSE KIT HUS-544003103
...
2
HOSE KIT HUS-505095502
...
7
Screws HUS-503214974
...
8
FILTERS HUS-589780701
...
14
FEMALE QUICK COUPLER HUS-503266003
...
13
HOSE PVC 720MM HUS-581893508
...
6
VALVE COMPLETE HUS-506317731
...
4
HOSE CLAMP HUS-576129701
...
9
RETAINING RING HUS-740421000
