Husqvarna K 750 (2009-07) Power Cutter

Model: K 750 (2009-07)

Back To Assemblies

Save Part Not Listed?
product name

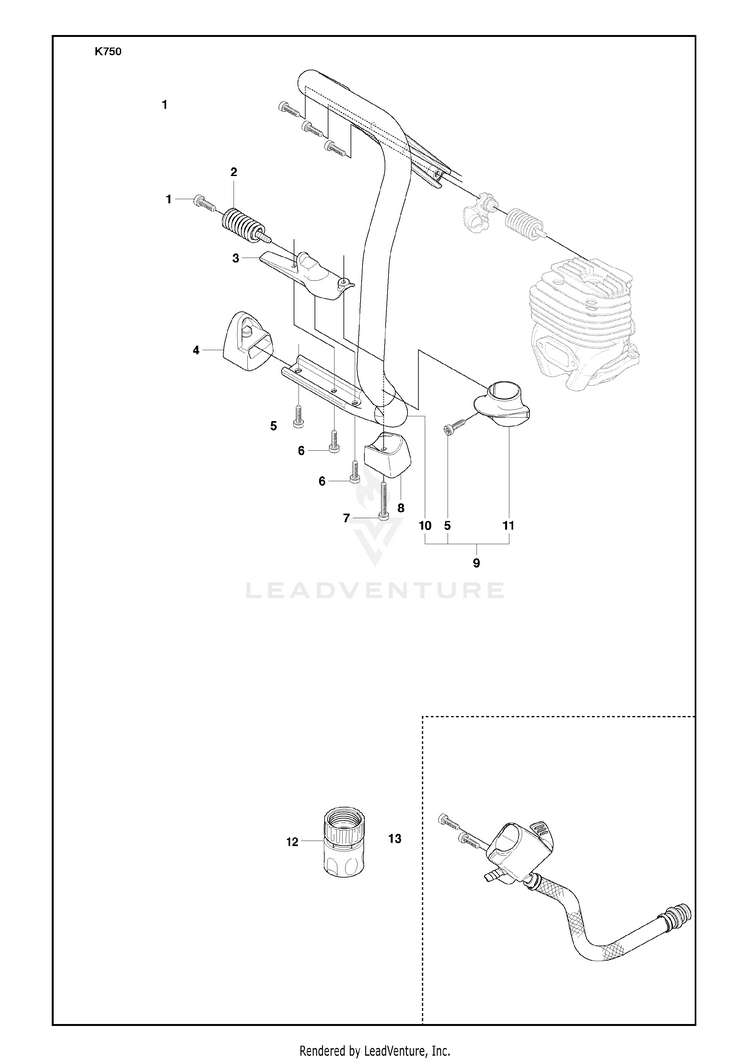

Front Handle And Groumd Support And Hose Kit

...
...
1
SCREW HUS-544061201
...
2
ANTIVIBRATION ELEMENT HUS-537210306
...
3
SPRING RETAINER HUS-575267703
...
4
GROUND SUPPORT HUS-506375502
...
5
SCREW HUS-503215420
...
6
SCREW HUS-503215310
...
7
SCREW HUS-503215340
...
8
GROUND SUPPORT HUS-506375602
...
9
HANDLE ASSY Incl. 10 - 12 HUS-581110603
...
10
FRONT HANDLE HUS-506371103
...
11
STOP HUS-506387102
...
12
FEMALE QUICK COUPLER USA HUS-503266003
...
12
COUPLER, 1/2" HOSE W/STOP ORIG HUS-503266004
...
13
HOSE KIT, WET CUT KIT, HANDLE HUS-505095501
