Husqvarna K 750 (2009-07) Power Cutter

Model: K 750 (2009-07)

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

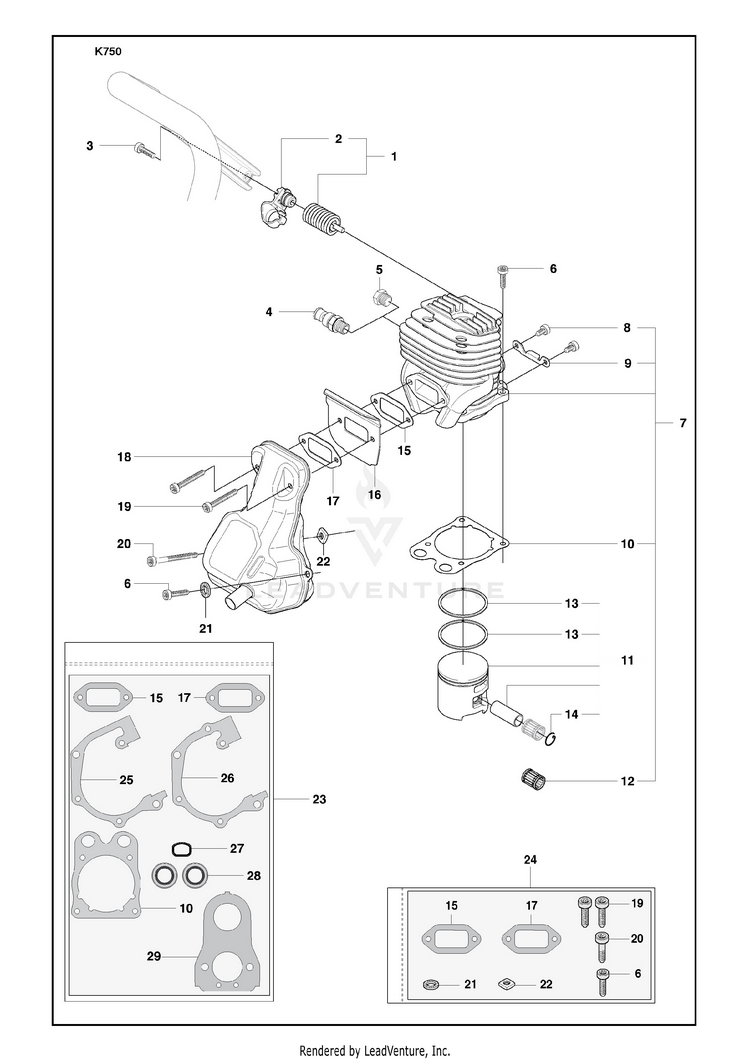

Cyclinder Assy And Muffler Mounting Kit And Muffler

...
...
1
SPRING HOLDER Incl. 2 HUS-505424501
...
2
SPRING HOLDER HUS-505424501
...
3
SCREW HUS-544061201
...
4
DECOMPRESSION VALVE HUS-503715301
...
5
CYLINDER PLUG HUS-503552201
...
6
SCREW HUS-503215325
...
7
CYLINDER ASSY D51 Incl. 8 - 12 HUS-581476103
...
8
SCREW HUS-503215316
...
9
BRACKET HUS-506368801
...
10
GASKET HUS-506376701
...
11
PISTON ASSY Incl. 13 - 14 HUS-506372403
...
12
NEEDLE BEARING PISTON PIN 12X1 HUS-577572401
...
13
PISTON RING HUS-522990101
...
14
WRIST PIN CLIP HUS-737431200
...
15
GASKET HUS-506412301
...
16
PLATE HUS-588915101
...
17
GASKET K760 HUS-588932501
...
18
MUFFLER KIT HUS-587668702
...
19
SCREW HUS-503215340
...
20
SCREW HUS-503215356
...
21
DOUBLE WASHER HUS-503230402
...
22
NUT HUS-503226504
...
23
GASKET KIT K760-II Incl. 10, 15, 17, 25 - 29 HUS-581357402
...
24
MUFFLER KIT K760-II Incl. 6, 15, 17, 19 - 22 HUS-592778301
...
25
GASKET HUS-506377002
...
26
GASKET HUS-506377003
...
27
INSERT HUS-544219302
...
28
SEALING RING HUS-503260204
...
29
GASKET CARBURETOR HUS-506376804
