Husqvarna K 750 (2007-07) Power Cutter

Model: K 750 (2007-07)

Back To Assemblies

Save Part Not Listed?

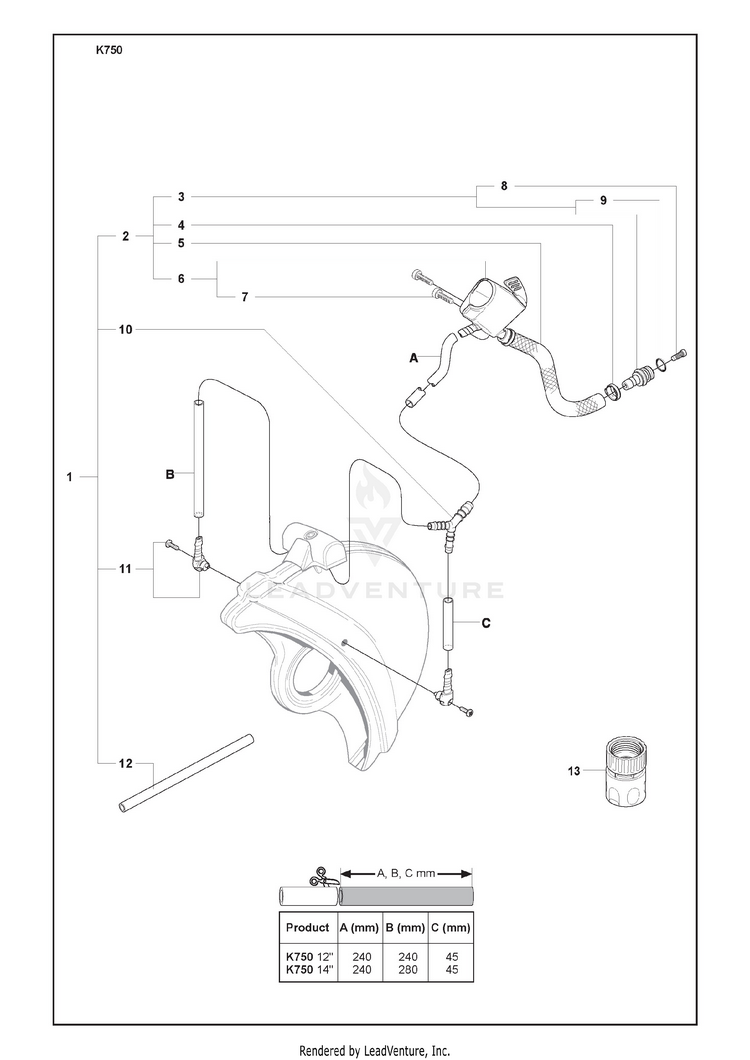

product name

Valves

...
...
1
WATER HOSE KIT Incl. 2, 10, 11, 12 HUS-544003102
...
2
HOSE KIT, WET CUT KIT, HANDLE Incl. 3, 4, 5, 6 HUS-505095501
...
3
NIPPLE Incl. 8, 9 HUS-506295702
...
4
HOSE CLAMP HUS-576129701
...
5
HOSE L=230 mm HUS-581893601
...
6
VALVE ASSY Incl. 7 HUS-506386012
...
7
SCREW HUS-503215420
...
8
FILTERS HUS-589780701
...
9
RETAINING RING HUS-740421000
...
10
CONNECTOR HUS-506328701
...
11
NIPPLE HUS-506295601
...
12
HOSE PVC 720MM 800 mm HUS-581893508
...
13
FEMALE QUICK COUPLER HUS-503266003
