Husqvarna K 750 (2007-07) Power Cutter

Model: K 750 (2007-07)

Back To Assemblies

Save Part Not Listed?

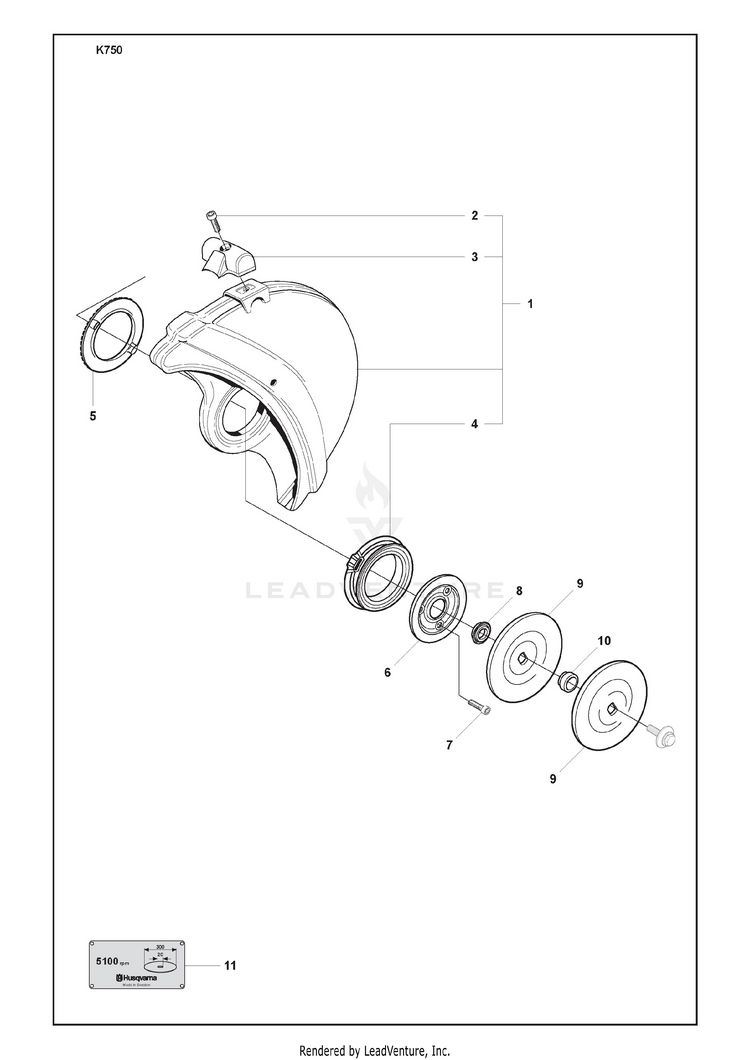

product name

Guard

...
...
1
WHEEL GUARD ASSY, 12" GREY 12", Incl. 2 - 4 HUS-506340542
...
1
WHEEL GUARD ASSY 14", Incl. 2 - 4 HUS-506340544
...
2
SCREW ITXSCM HUS-525824902
...
3
HANDLE HUS-506344602
...
4
LINING HUS-506266302
...
5
FLANGE HUS-506266401
...
6
FLANGE HUS-506266501
...
7
SCREW MC6S 5X16 HUS-725532955
...
8
SLEEVE HUS-506324801
...
9
WASHER Diam 105 mm HUS-506028701
...
9
FLANGE WASHER Diam 119 mm HUS-506070903
...
10
BUSHING Diam 20 mm HUS-506379620
...
10
BUSHING Diam 22,2 mm HUS-506379622
...
10
BUSHING Diam 25,4 mm HUS-578398201
...
10
BUSHING-30MM Diam 30,5 mm HUS-506028830
...
11
LABEL 12", Diam 1" HUS-506284104
...
11
LABEL 12", Diam 20 mm HUS-506284102
...
11
ARBOR SIZE DECAL/25.4 14", Diam 1" HUS-506284114
...
11
ARBOR SIZE DECAL/20 14", Diam 20 mm HUS-506284112
