Husqvarna K 750 (2007-07) Power Cutter

Model: K 750 (2007-07)

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

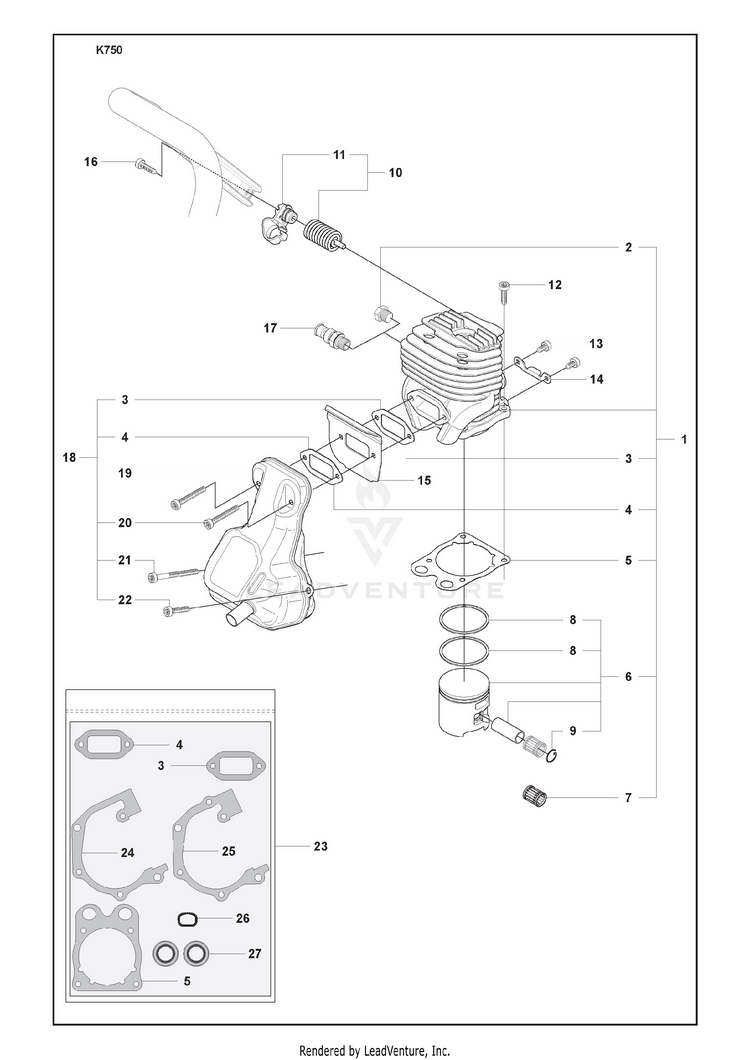

Cylinder

...
...
1
CYLINDER ASSY D51 Incl. 2 - 7 HUS-581476103
...
2
CYLINDER PLUG HUS-503552201
...
3
GASKET HUS-506412301
...
4
GASKET K760 HUS-588932501
...
5
GASKET HUS-506376701
...
6
PISTON ASSY Incl. 8, 9 HUS-506372403
...
7
NEEDLE BEARING PISTON PIN 12X1 HUS-577572401
...
8
PISTON RING HUS-522990101
...
9
WRIST PIN CLIP HUS-737431200
...
10
SPRING HOLDER Incl. 11 HUS-505424501
...
11
SPRING RETAINER HUS-544020802
...
12
SCREW HUS-503215325
...
13
SCREW HUS-503215316
...
14
BRACKET HUS-506368801
...
15
PLATE HUS-588915101
...
16
SCREW HUS-503215420
...
17
DECOMPRESSION VALVE HUS-503715301
...
18
MUFFLER KIT Incl. 3, 4, 19 - 22 HUS-587668702
...
19
MUFFLER KIT HUS-587668702
...
20
SCREW HUS-503215341
...
21
SCREW HUS-503215356
...
22
SCREW HUS-503215321
...
23
GASKET KIT K760-II Incl. 3 - 5, 24 - 27 HUS-581357402
...
24
GASKET HUS-506377002
...
25
GASKET HUS-506377003
...
26
INSERT HUS-544219302
...
27
SEALING RING HUS-503260204
