Husqvarna K 750 (2007-07) Power Cutter

Model: K 750 (2007-07)

Back To Assemblies

Save Part Not Listed?
product name

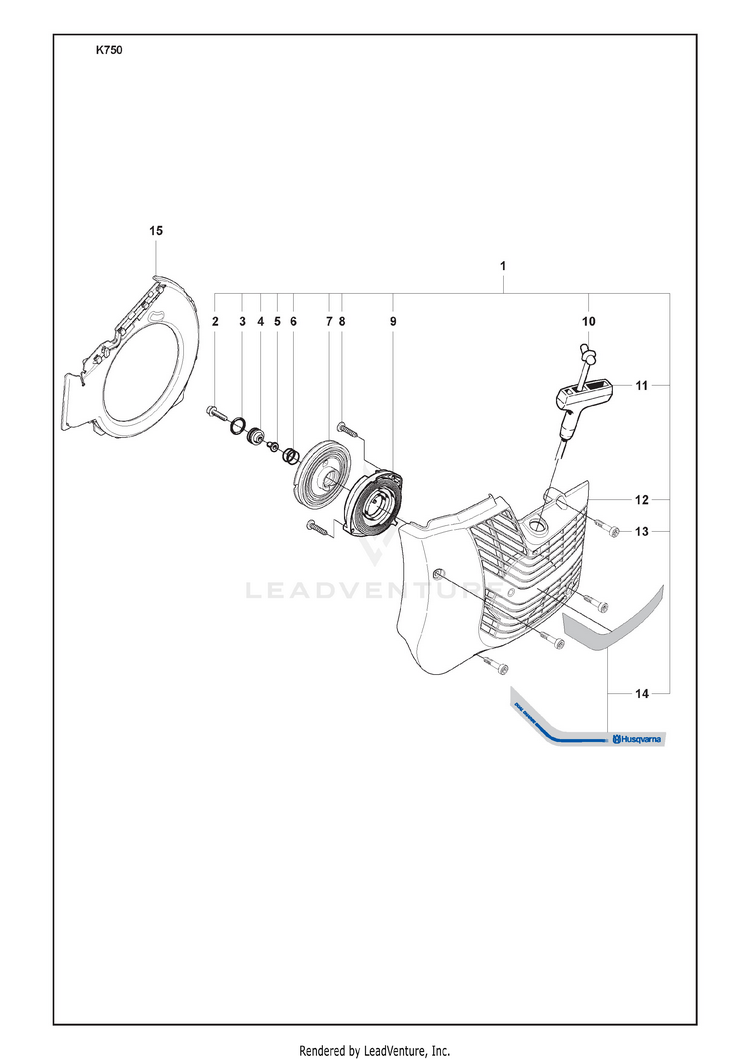

Starter

...
...
1
STARTER COMPLETE Incl. 2 - 14 HUS-574362006
...
2
SCREW HUS-503216722
...
3
O-RING HUS-740431300
...
4
SEALING HOLDER HUS-510000801
...
5
SLEEVE HUS-506263101
...
6
SPRING HUS-506253001
...
7
STARTER PULLEY HUS-506258103
...
8
SCREW HUS-503212810
...
9
RETURN SPRING HUS-506258901
...
10
STARTER ROPE HUS-506335615
...
11
Starters HUS-584257903
...
12
STARTER COVER HUS-506369203
...
13
SCREW HUS-503215321
...
14
LABEL HUS-544890802
...
15
AIR CONDUCTOR HUS-544383901
