Husqvarna K 750 (2007-01) Power Cutter

Model: K 750 (2007-01)

Back To Assemblies

Save Part Not Listed?
product name

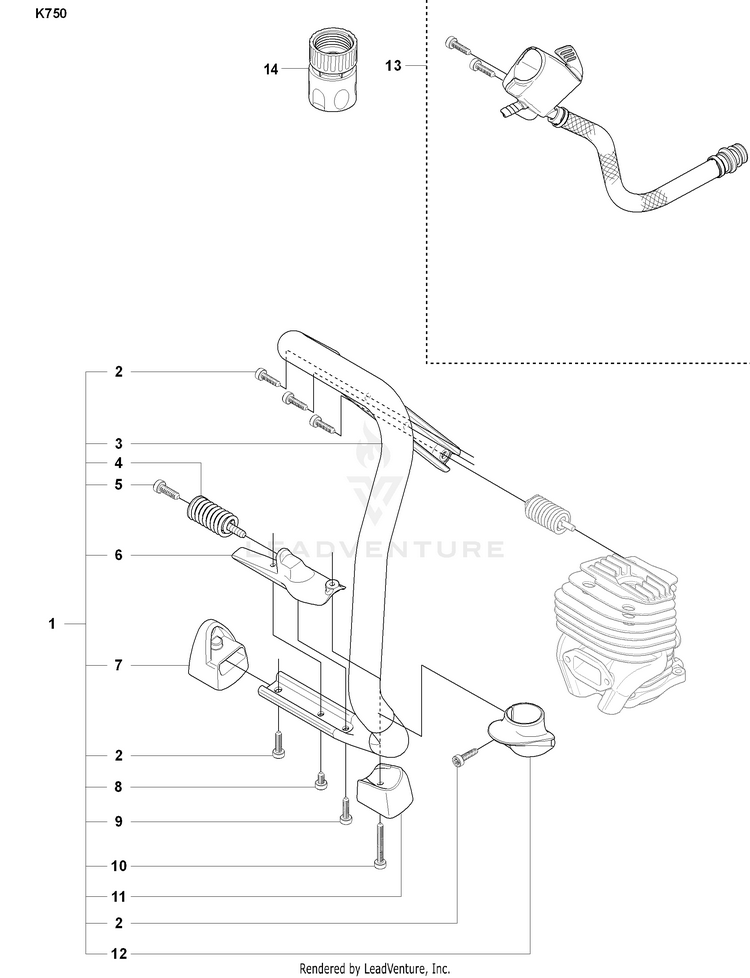

Front Handle and Hose

...
...
1
HANDLE ASSY Incl. 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13 HUS-581110603
...
2
SCREW HUS-503215420
...
3
FRONT HANDLE HUS-506371103
...
4
ANTIVIBRATION ELEMENT HUS-537210306
...
5
SCREW HUS-544061201
...
6
SPRING RETAINER HUS-575267703
...
7
GROUND SUPPORT HUS-506375502
...
8
SCREW HUS-503215316
...
9
SCREW HUS-503215321
...
10
SCREW HUS-503215340
...
11
GROUND SUPPORT HUS-506375602
...
12
STOP HUS-506387102
...
13
HOSE KIT, WET CUT KIT, HANDLE HUS-505095501
...
14
FEMALE QUICK COUPLER HUS-503266003
