Husqvarna K 750 (2007-01) Power Cutter

Model: K 750 (2007-01)

Back To Assemblies

Save Part Not Listed?
product name

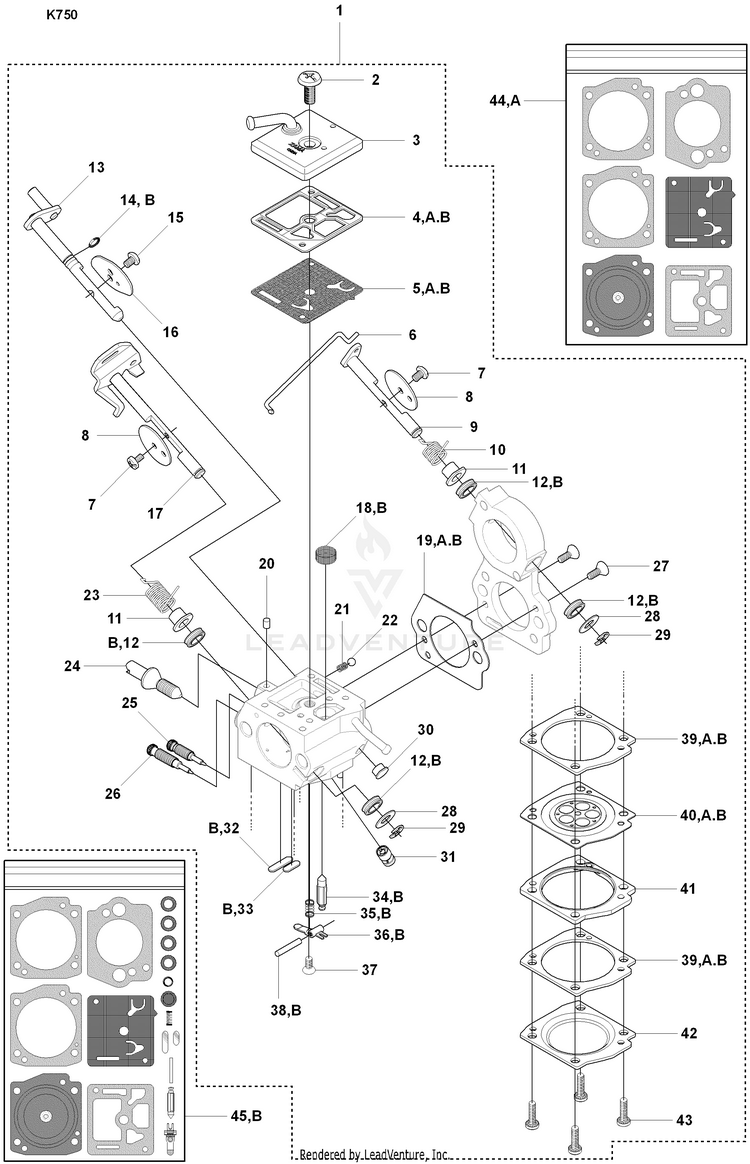

Carburettor and Gasket Kit Carb

...
...
1
CARBURETOR Zama C3-EL29, Incl. 2 - 43 HUS-503283209
...
2
SCREW HUS-503479601
...
3
PUMP COVER HUS-544836401
...
4
GASKET HUS-503616601
...
5
PUMP DIAPHRAGM HUS-537380201
...
6
SHAFT HUS-506396501
...
7
SCREW HUS-544082201
...
8
THROTTLE FLAP HUS-537177001
...
9
SHAFT ASSY HUS-506397101
...
10
SPRING HUS-506397501
...
11
COLLAR HUS-506395401
...
12
QUAD RING HUS-506396401
...
13
CHOKE SHAFT HUS-506397301
...
14
O-RING HUS-506399001
...
15
SCREW HUS-503481801
...
16
VALVE HUS-506397801
...
17
CHOKE CHAFT HUS-506397401
...
18
STRAINER HUS-503535701
...
19
GASKET HUS-506395801
...
20
PLUG HUS-503481101
...
21
SPRING HUS-537012601
...
22
BALL HUS-537012501
...
23
SPRING HUS-544836501
...
24
SCREW - THROTTLE ADJUST. HUS-506397201
...
25
SCREW HUS-506397001
...
26
SCREW HUS-506396901
...
27
SCREW HUS-537385101
...
28
WASHER HUS-506397901
...
29
CLIP HUS-537385201
...
30
PLUG HUS-506399101
...
31
NOZZLE ASSY CHECK VALVE HUS-506396101
...
32
PLUG HUS-503535601
...
33
PLUG HUS-537177801
...
34
VALVE HUS-537176201
...
35
SPRING HUS-537273401
...
36
LEVER HUS-537176401
...
37
SCREW HUS-544082101
...
38
PIN HUS-537020801
...
39
GASKET, METERING HUS-506396201
...
40
DIAPHRAM ASSY MET. HUS-506395701
...
41
COVER, COMPENSATOR HUS-506395501
...
42
COVER METERING HUS-506395601
...
43
SCREW HUS-506396601
...
44
GASKET KIT Incl. 4, 5, 19, 39, 40 HUS-506409902
...
45
REPAIR KIT Incl. 4, 5, 12, 14, 32, 33, 34, 35, 36, 38, 39, 40 HUS-506410001
