Husqvarna K 4000 (2018-03) Power Cutter

Model: K 4000 (2018-03)

Back To Assemblies

Save Part Not Listed?
product name

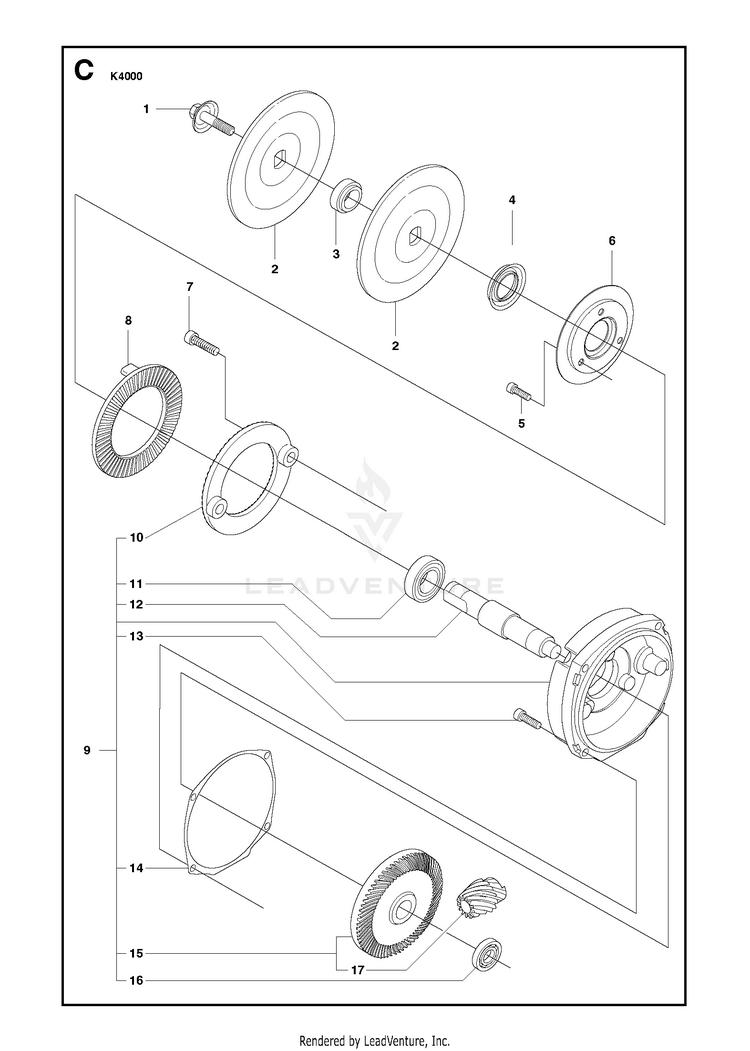

GEARS

...
...
13
SCREW ITSXCM HUS-505574120
...
9
Gears Incl. 10 - 16 HUS-544403205
...
2
FLANGE WASHER JP HUS-506070903
...
8
FLANGE HUS-506266401
...
1
SCREW HUS-581855201
...
16
BALL BEARING HUS-738220015
...
14
GASKET HUS-523056201
...
10
FLANGE HUS-506288401
...
2
FLANGE RoW HUS-583874401
...
6
FLANGE HUS-506266501
...
3
BUSHING RoW HUS-578398201
...
12
NEEDS DESCRIPTION HUS-582825501
...
11
BALL BEARING HUS-503252101
...
15
GEAR CPL. Incl. 17 HUS-531031875
...
5
SCREW ITXSCM HUS-505574116
...
4
SLEEVE HUS-506324801
...
7
SCREW HUS-503215310
...
17
PINION HUS-506098602
...
3
BUSHING ASSY BLADE WITH O-RING JP HUS-581605403
