Husqvarna K 4000 (2018-03) Power Cutter

Model: K 4000 (2018-03)

Back To Assemblies

Save Part Not Listed?
product name

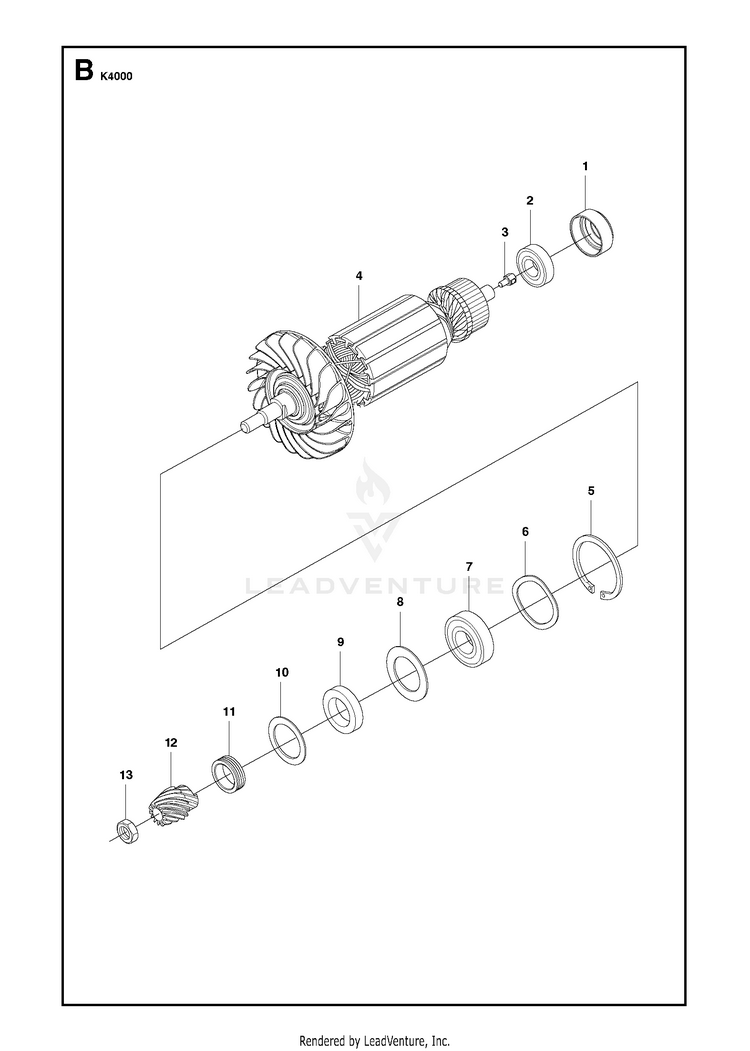

MOTOR

...
...
3
SCREW MAGNET HUS-579256201
...
10
SPACER HUS-505530352
...
9
FELT JOINT HUS-505530341
...
1
RUBBER BUSHING ROTOR CENTRERIN HUS-577066601
...
12
PINION HUS-506098602
...
7
BALL BEARING HUS-531073944
...
2
BALL BEARING HUS-503250901
...
8
SPACER HUS-505530316
...
6
SPRING WASHER HUS-505530351
...
5
RETAINING RING SGH 35 HUS-735313310
...
11
SPACER HUS-505530319
...
13
NUT K3000 M8X1 LEFT HUS-523122402
...
4
NEEDS DESCRIPTION 230V HUS-582586601
...
4
NEEDS DESCRIPTION 100-120V HUS-582586602
