Husqvarna K 3000 Wet (2009-03) Power Cutter

Model: K 3000 Wet (2009-03)

Back To Assemblies

Save Part Not Listed?
product name

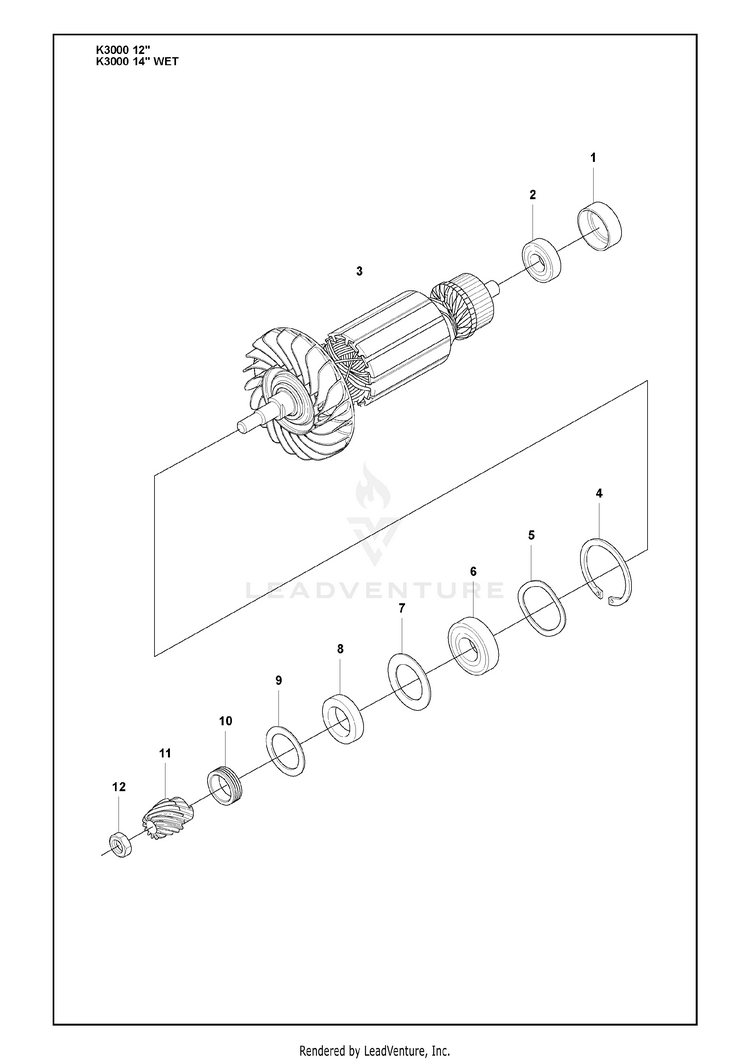

Armature And Pinion

...
...
1
RUBBER BUSHING HUS-505530314
...
2
BALL BEARING HUS-503250901
...
3
ROTOR K3000 120V 100 - 120V HUS-525458402
...
3
ROTOR 230V,DOUBLE INSULATED 230V HUS-525458501
...
4
RETAINING RING SGH 35 HUS-735313310
...
5
SPRING WASHER HUS-505530351
...
6
BALL BEARING HUS-531073944
...
7
SPACER HUS-505530316
...
8
FELT JOINT HUS-505530341
...
9
SPACER HUS-505530352
...
10
SPACER HUS-505530319
...
11
PINION HUS-506098602
...
12
NUT HUS-523122401
Schematic Image Zoomed
