Husqvarna K 3000 Wet (2009-03) Power Cutter

Model: K 3000 Wet (2009-03)

Back To Assemblies

Save Part Not Listed?

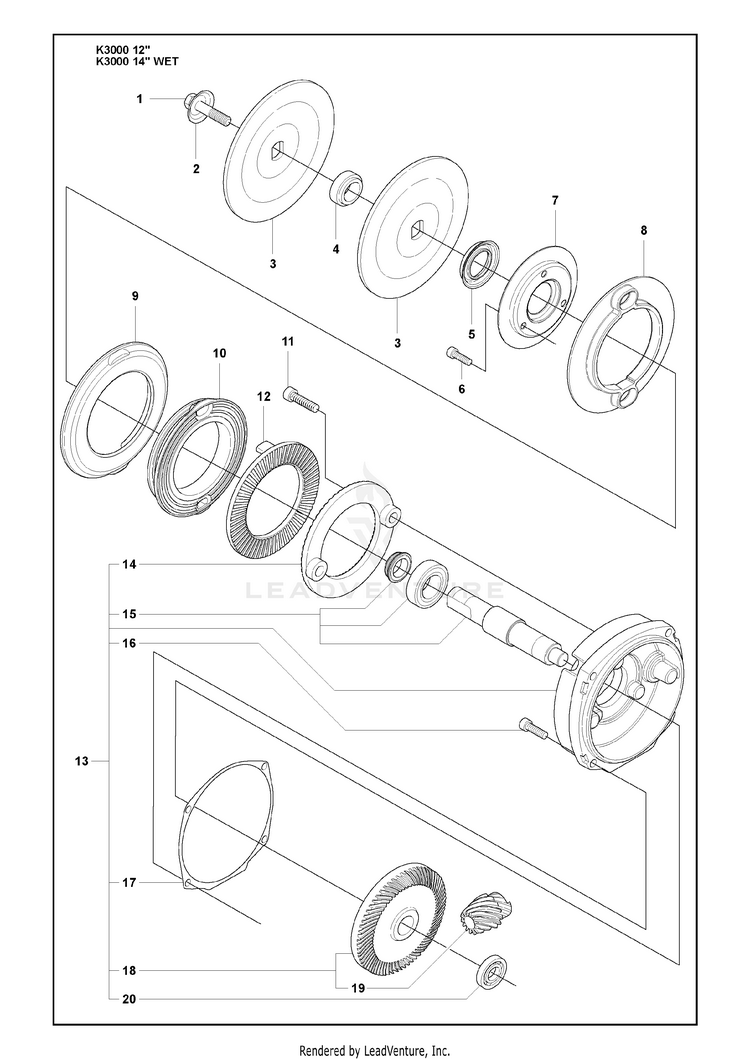

product name

Gear Set And Flange Washer

...
...
1
SCREW HUS-581855201
...
2
WASHER HUS-506139511
...
3
WASHER HUS-506028701
...
4
BUSHING Diam 20mm HUS-506379620
...
4
BUSHING Diam 22,2mm HUS-506379622
...
4
BUSHING Diam 25,4mm HUS-578398201
...
4
BUSHING-30MM Diam 30,5mm HUS-506028830
...
5
SEALING HUS-506320601
...
6
SCREW ITXSCM HUS-505574116
...
7
FLANGE HUS-506266501
...
8
Spacer Ring Inner 12" only HUS-505281801
...
9
Spacer Ring Outer 12" only HUS-505281901
...
10
LINING HUS-506266302
...
12
FLANGE HUS-506266401
...
11
SCREW HUS-503215312
...
13
Gears Incl. 14 - 18, 20 HUS-544403205
...
14
FLANGE HUS-506288401
...
15
SHAFT KIT K3000 HUS-544403302
...
16
SCREW ITSXCM HUS-505574120
...
17
GASKET HUS-523056201
...
18
GEAR CPL. Incl. 19 HUS-531031875
...
19
PINION HUS-506098602
...
20
BALL BEARING HUS-738220015
