Husqvarna K 3000 Wet (2009-03) Power Cutter

Model: K 3000 Wet (2009-03)

Back To Assemblies

Save Part Not Listed?
product name

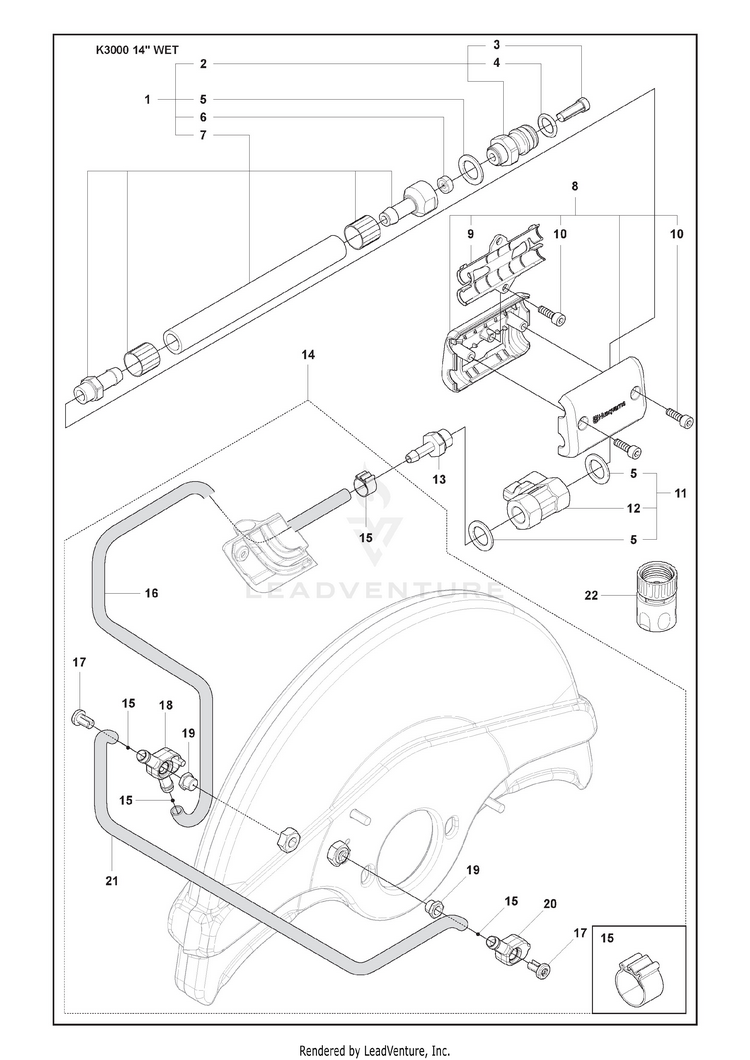

Wet Cutting Kit And Bracket Assy And Hose Kit And Coupler

...
...
1
HOSE ASSY K3000 WET Incl. 2, 5 - 7 HUS-576198701
...
2
KIT NIPPLE Incl. 3, 4 HUS-510112001
...
3
FILTERS HUS-589780701
...
4
RETAINING RING HUS-740421000
...
5
WASHER HUS-531074260
...
6
FLOW CONTROL HUS-506486101
...
7
HOSE ASSY K3000 WET HUS-576198701
...
8
SPARE PARTS KIT Incl. 9 - 10 HUS-522945101
...
9
INSERT VALVE HOUSING K3000 WET HUS-510187501
...
10
Screw HUS-504909401
...
11
VALVE KIT Incl. 5, 12 HUS-510195901
...
12
VALVE HUS-576258001
...
13
NIPPLE HUS-589996601
...
14
HOSE KIT Incl. 15 - 21 HUS-505095402
...
15
HOSE CLAMP HUS-506498701
...
16
HOSE PVC 720MM 720 mm HUS-581893508
...
17
SCREW HUS-504634601
...
18
HOUSING HUS-505115501
...
19
NIPPLE HUS-504634201
...
20
HOUSING WHEEL GUARD NOZZLE LF HUS-504634503
...
21
HOSE 300 mm HUS-506606807
...
22
FEMALE QUICK COUPLER USA HUS-503266003
...
22
COUPLER, 1/2" HOSE W/STOP ORIG HUS-503266004
