Husqvarna K 3000 Wet (2009-03) Power Cutter

Model: K 3000 Wet (2009-03)

Back To Assemblies

Save Part Not Listed?
product name

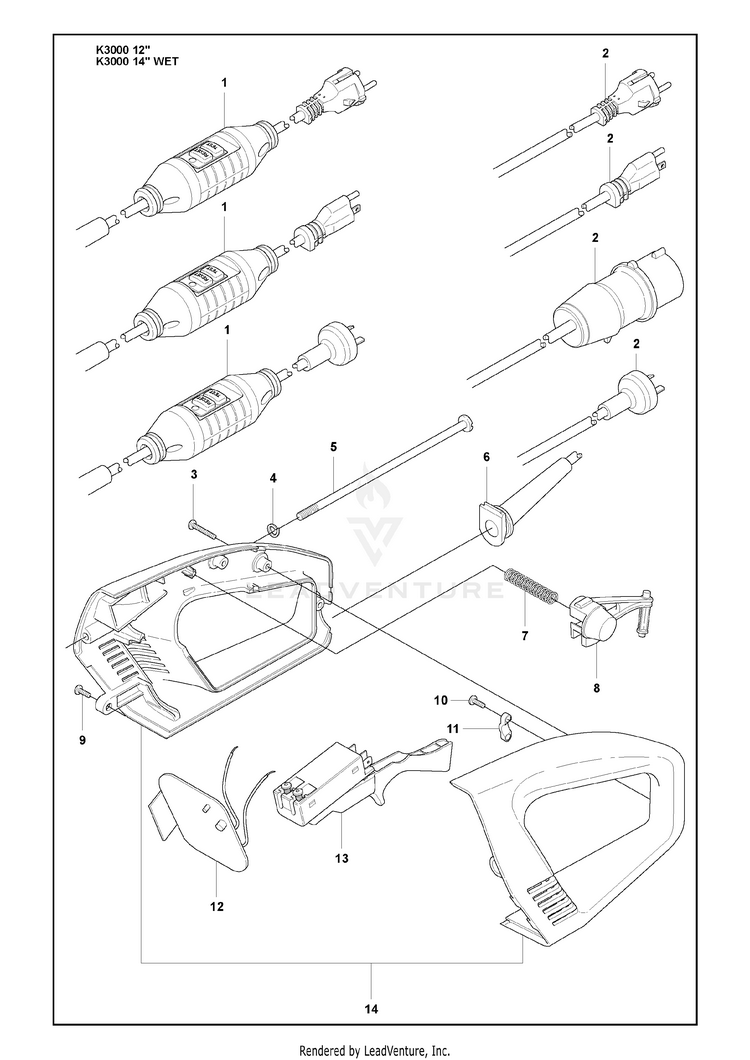

Cable Assy And Engine Protection And Handle Assy And Switch

...
...
1
CABLE 230V, Incl. 6 HUS-505443303
...
1
CABLE 110V JP, USA HUS-510181302
...
1
Cable Assy 110V AU, Incl. HUS-521907203
...
2
CABLE INCL. PLUG EU (NO PRCD) 230V HUS-510222809
...
2
CABLE US 15A 110V JP, USA HUS-510222810
...
2
CABLE 110V UK HUS-510181401
...
2
Cable Cpl 110V AU HUS-510222801
...
3
SCREW HUS-531031902
...
4
SPRING WASHER 5.3X10 HUS-735114650
...
5
SCREW HUS-505530311
...
6
CABLE SLEEVE 230V HUS-577411801
...
7
SPRING HUS-577481901
...
8
LOCKING BUTTON K3000 HUS-589657302
...
9
SCREW HUS-724132755
...
10
SCREW HUS-503212001
...
11
CLAMP HUS-531031887
...
12
PRINTED CIRCUIT ASSY 120V 110V HUS-575890003
...
12
PRINTED CIRCUIT 230V 230V HUS-525592402
...
13
SWITCH HUS-531031883
...
14
HANDLE ASSY HUS-544904502
