Husqvarna K 185 (1987-01) Power Cutter

Model: K 185 (1987-01)

Back To Assemblies

Save Part Not Listed?
product name

Carburetor Parts

...
...
505316462
CAP HUS-501821901
...
501220901
METERING DIAPHRAGM HUS-501220901
...
501220801
GASKET, METERING SIDE HUS-501220801
...
501220301
Plug HUS-501220301
...
502316613
HUS-502316613
...
501223001
SCREW HUS-503652701
...
502012201
CHOKE FLAP HUS-502012201
...
505316602
HUS-505316602
...
501222501
SPRING HUS-501222501
...
501220401
BALL HUS-501220401
...
505316602
HUS-505316602
...
505316458
Pressure Spring HUS-505316458
...
501221701
SPRING HUS-501221701
...
501223101
HUS-501223101
...
505316114
THROTTLE FLAP HUS-505316114
...
501221201
FUEL PUMP DIAPHRAGM HUS-501221201
...
501221301
GASKET, PUMP SIDE HUS-501221301
...
501221401
CAP HUS-501221401
...
501221501
SCREW HUS-501221501
...
505316454
NEEDLE H HUS-501268901
...
501268501
IDLE ADJ. SCREW HUS-501268501
...
505316603
SCREW HUS-503578701
...
502058301
BALL HUS-503419201
...
505316619
HUS-505316619
...
505316495
HUS-505316495
...
501427101
Bushing HUS-501427101
...
501502401
HUS-501502401
...
501485001
GASKET HUS-501485001
...
501821801
RETAINING RING HUS-501821801
...
503230102
WASHER 5.25X9 HUS-503230102
...
501238801
NIPPLE HUS-503534001
...
501222401
FILTER HUS-578004601
...
501485201
SCREW HUS-501485201
...
501222101
SHAFT HUS-501222101
...
501222001
LEVER HUS-501222001
...
501222501
SPRING HUS-501222501
...
501466701
VALVE/INLET. HUS-503117001
...
503486301
COVER SCREW HUS-503486301

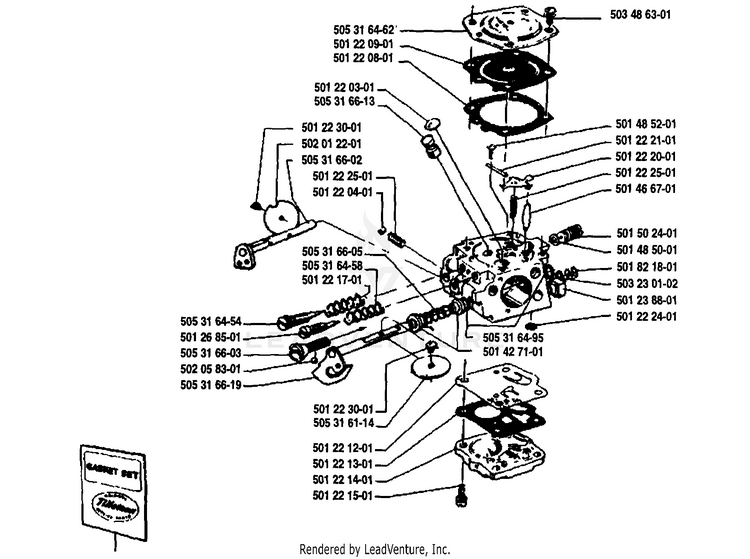

Schematic Image Zoomed
