Husqvarna K 185 (1987-01) Power Cutter

Model: K 185 (1987-01)

Back To Assemblies

Save Part Not Listed?
product name

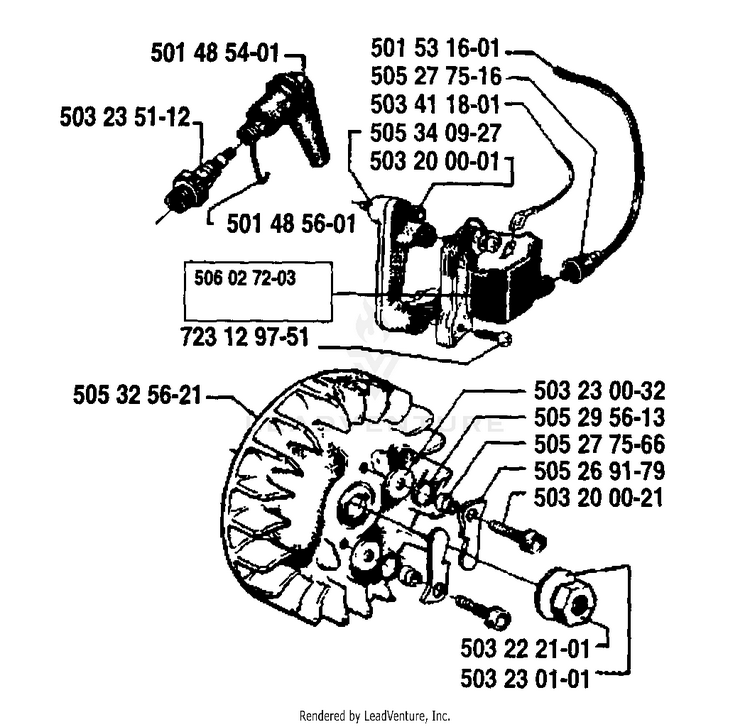

Ignition/Flywheel

...
...
501465401
SPRING HUS-501465401
...
503235112
BPMR6A NGK SPARK PLUG HUS-503235112
...
501485601
SPARK PLUG CONN. KIT HUS-501485402
...
501531601
CABLE 13 3/8"IN HUS-501531601
...
505277516
INSULATING CAP HUS-505277516
...
503411801
CABLE HUS-503411802
...
505340927
HUS-505340927
...
503200001
SCREW M6SF 5X20 HUS-503200001
...
723129751
HUS-723129751
...
505325621
FLYWHEEL HUS-505325621
...
503230032
WASHER 5.3X15 HUS-503230032
...
505295613
SPRING HUS-505295613
...
505277566
BUSHING HUS-505277566
...
505269179
STARTER PAWL HUS-505269179
...
503200021
SCREW M6SF 5X18 HUS-503200021
...
503222101
NUT W/ WASHER HUS-503220401
...
503230101
WASHER 8.4X16 HUS-503230101
...
506027203
IGNITION MODULE HAS3.1.3CCN100 HUS-587329503
