Husqvarna K 1250 Rail (2007-01) Power Cutter

Model: K 1250 Rail (2007-01)

Back To Assemblies

Save Part Not Listed?
product name

K1250 Rail

...
...
1
BELT GUARD K1250 Rail 14" HUS-506279231
...
1
PROTECTOR K1250 Rail 16" HUS-506279204
...
2
TENSIONER Incl. 3, 4 HUS-506266603
...
3
SCREW HUS-503203011
...
4
SPRING HUS-506266801
...
5
NUT HUS-503226601
...
6
LABEL HUS-544873601
...
7
BEARING HOUSING K1250 Rail 14" HUS-544887501
...
7
BEARING HOUSING K1250 Rail 16" HUS-544887502
...
8
SLEEVE HUS-506227501
...
9
SCREW HUS-503200216
...
10
FLANGE HUS-506288401
...
11
BALL BEARING HUS-503252101
...
12
SCREW HUS-503200712
...
13
SPACER HUS-506070801
...
14
SHAFT HUS-506298363
...
15
HEEL GUARD ASSY 14" CHROME 14". Incl. 18-21 HUS-506340554
...
15
WHEEL GUARD ASSY 16" CHROME 16". Incl. 18-21 HUS-506340556
...
16
SCREW ITXSCM HUS-525824902
...
17
HANDLE HUS-506344602
...
18
LINING HUS-506266302
...
19
BELT 16" HUS-506372728

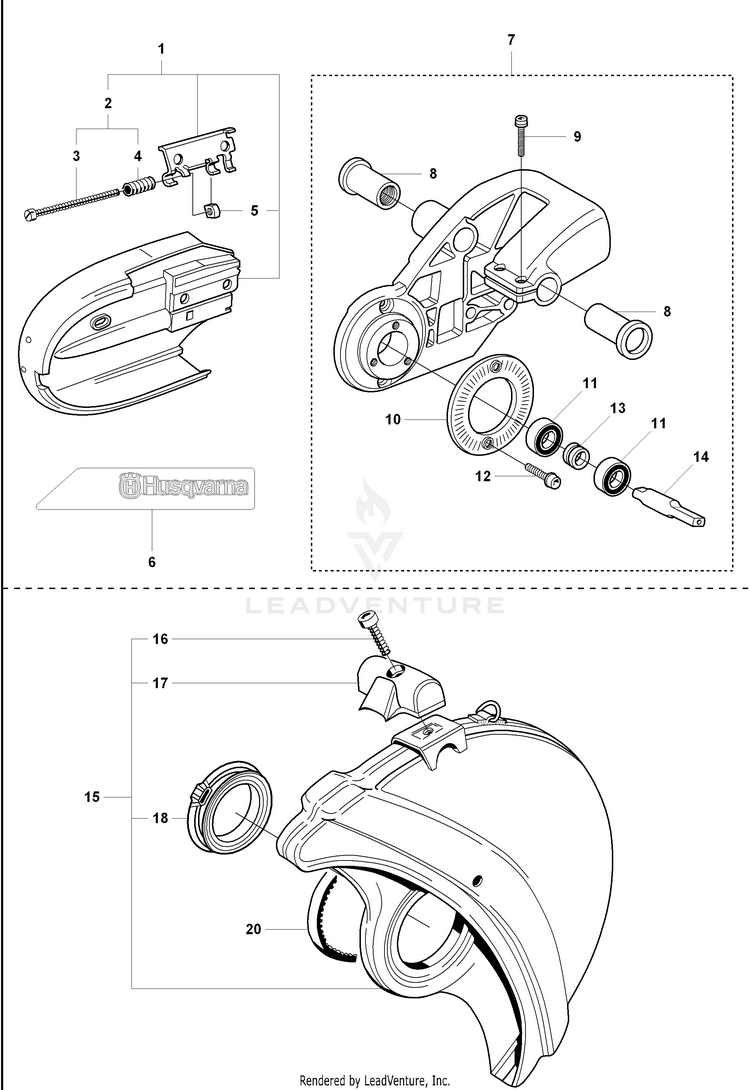

Schematic Image Zoomed
