Husqvarna K 1250 Active (2008-01) Power Cutter

Model: K 1250 Active (2008-01)

Back To Assemblies

Save Part Not Listed?
product name

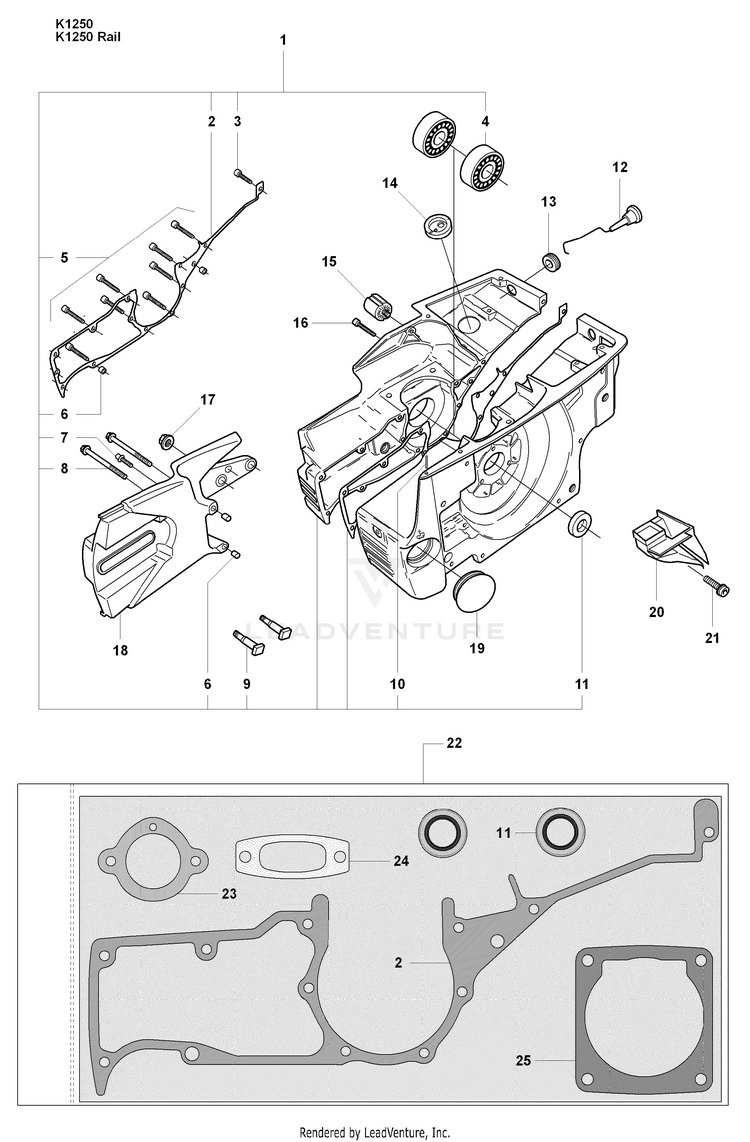

Crankcase / Cutter Arm / Air Nozzle and Gasket Kit

...
...
1
CRANKCASE Incl. 2-11 HUS-501892572
...
2
CRANKCASE GASKET Gasket kit 22 HUS-503134501
...
3
SCREW ITXSCM HUS-525824902
...
4
BALL BEARING 6203 C3 HUS-738220325
...
5
SCREW MC6S 5X40 HUS-725533955
...
6
GUIDE BUSHING HUS-593806001
...
7
SCREW HUS-503200220
...
8
SCREW HUS-503200265
...
9
BOLT HUS-501815701
...
10
PIN HUS-721420600
...
11
SEALING RING Gasket kit 22 HUS-503260205
...
12
CHOKE CONTROL HUS-506254301
...
13
GROMMET HUS-503145402
...
14
GROMMET HUS-503132001
...
15
ANTIVIBRATION ELEMENT HUS-501269705
...
16
SCREW MC6S 6X20 HUS-725537055
...
17
NUT M8 FLANGE HUS-503220001
...
18
Cutter HUS-596823402
...
19
PLUG HUS-506269702
...
20
JET HUS-506237001
...
21
SCREW HUS-503200712
...
22
GASKET KIT K1260 HUS-506292404
...
23
GASKET K1270 HUS-579851101
...
24
GASKET HUS-503131305
...
25
GASKET HUS-503134601
