Husqvarna K 1250 Active (2008-01) Power Cutter

Model: K 1250 Active (2008-01)

Back To Assemblies

Save Part Not Listed?
product name

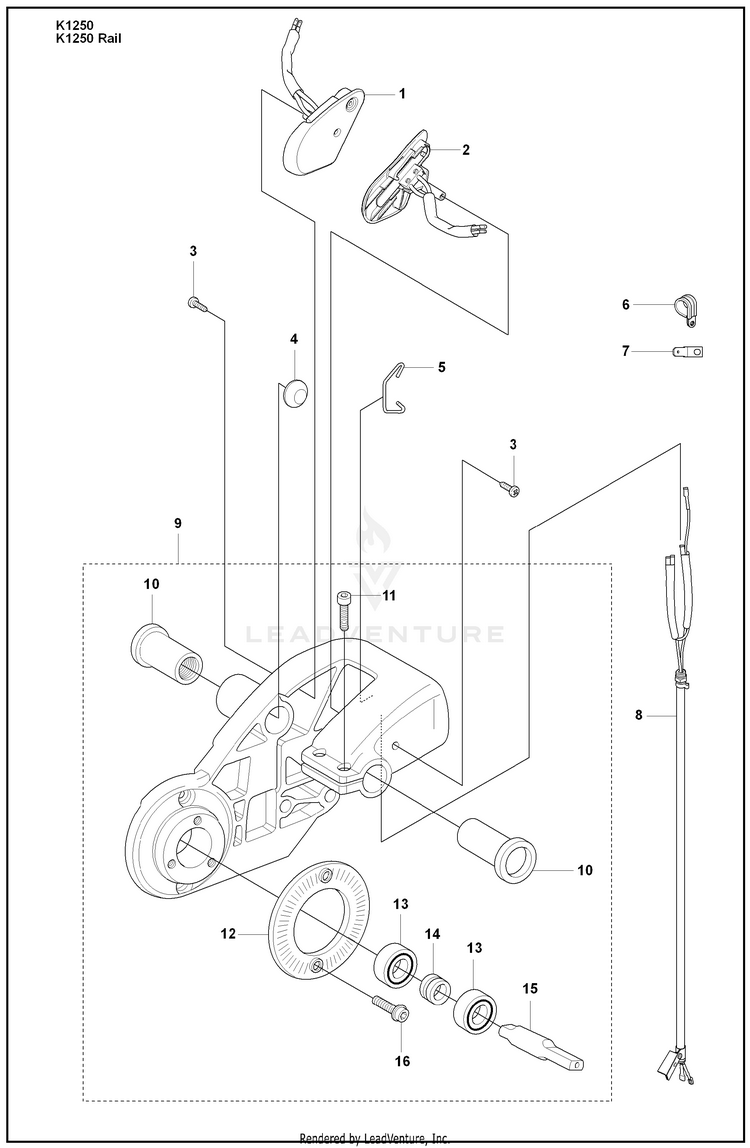

Bearing Housing

...
...
1
STOP SWITCH RH RH HUS-506359104
...
2
STOP SWITCH LH LH HUS-506359103
...
3
SCREW HUS-729532771
...
4
SPACER HUS-506359601
...
6
BRACKET HUS-506358001
...
7
BRACKET HUS-535039401
...
8
CABLE ASSY HUS-506359001
...
9
BEARING HOUSING K1250 Rail 14", Stop, Incl. 10 - 16 HUS-544887502
...
9
BEARING HOUSING K1250 Rail 16", Stop, Incl. 10 - 16 HUS-544887504
...
10
SLEEVE HUS-506227501
...
11
SCREW HUS-503200216
...
12
FLANGE HUS-506288401
...
13
BALL BEARING HUS-503252101
...
14
SPACER HUS-506070801
...
15
SHAFT HUS-506298363
...
16
SCREW HUS-503200712
