Husqvarna K 1250 (2007-01) Power Cutter

Model: K 1250 (2007-01)

Back To Assemblies

Save Part Not Listed?
product name

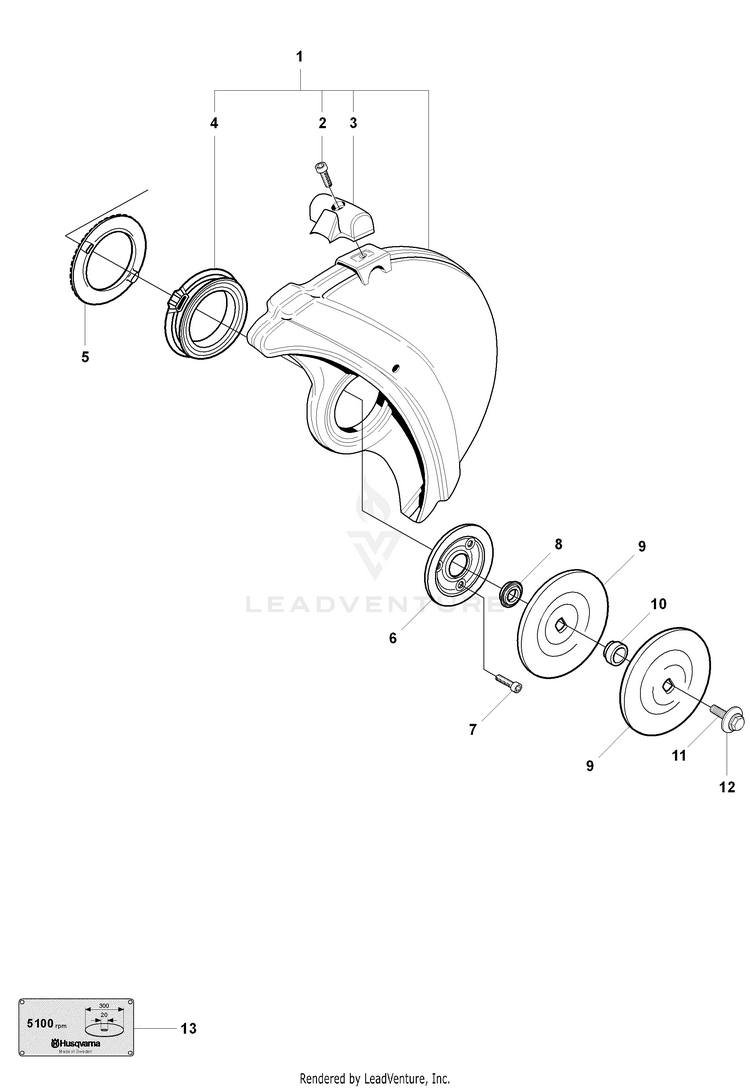

Wheel Guard Assy

...
...
1
WHEEL GUARD ASSY 14" HUS-506340544
...
1
WHEEL GUARD ASSY, 16" GREY 16" HUS-506340546
...
2
SCREW ITXSCM HUS-525824902
...
3
HANDLE HUS-506344602
...
4
LINING HUS-506266302
...
5
FLANGE HUS-506266401
...
6
FLANGE HUS-506266501
...
7
SCREW MC6S 5X16 HUS-725532955
...
8
SLEEVE K1250 A HUS-506324801
...
8
SLEEVE K1250 Rail HUS-506324801
...
9
WASHER Diam 105 mm HUS-506028701
...
9
FLANGE WASHER Diam 119 mm HUS-506070903
...
10
BUSHING Diam 20 mm HUS-506379620
...
10
BUSHING Diam 22,2 mm HUS-506379622
...
10
BUSHING Diam 25 mm HUS-578398201
...
10
BUSHING-30MM Diam 30,5 mm HUS-506028830
...
11
WASHER HUS-506139511
...
12
SCREW HUS-581855201
...
13
ARBOR SIZE DECAL/20 14". Diam 20mm HUS-506284112
...
13
LABEL 14". Diam 22,2 mm HUS-506284111
...
13
ARBOR SIZE DECAL/25.4 14". Diam 25,4mm HUS-506284114
...
13
ARBOR SIZE DECAL/20 16". Diam 20mm HUS-506284122
...
13
LABEL 16". Diam 22,2mm HUS-506284121
...
13
ARBOR SIZE DECAL/25.4 16". Diam 25,4mm HUS-506284124
