Husqvarna K 1250 (2007-01) Power Cutter

Model: K 1250 (2007-01)

Back To Assemblies

Save Part Not Listed?
product name

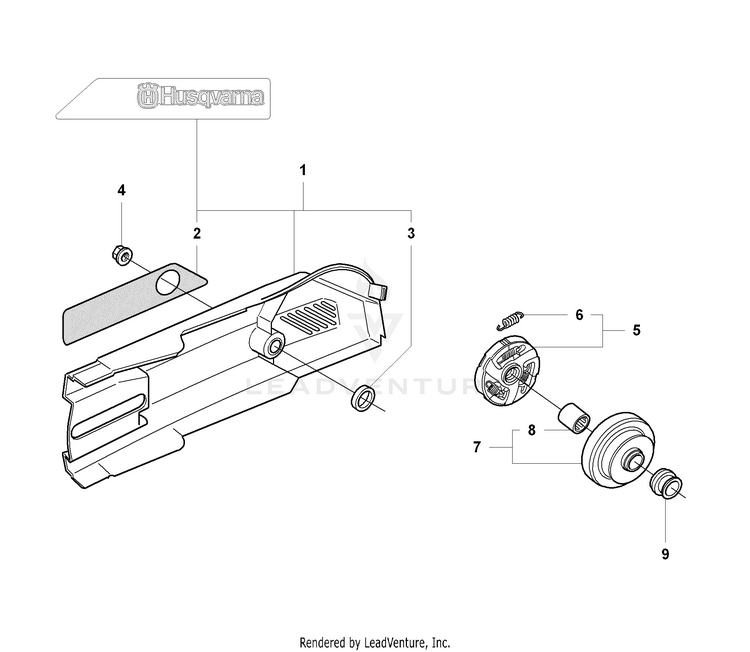

Belt Guard and Clutch Assy

...
...
1
!ELT GUARD ASSY REAR Incl. 2, 3 HUS-506271704
...
2
LABEL HUS-544873601
...
3
BUSHING HUS-506268401
...
4
NUT M8 FLANGE HUS-503220001
...
5
CLUTCHES Incl. 6 HUS-503144903
...
6
CLUTCH SPRING HUS-503145101
...
7
Pulleys 14". Diam. 50mm HUS-587890201
...
7
BELT POLY-V ASSY K1250 16"RAIL 16". Diam. 41mm HUS-540018403
...
7
CLUTCH DRUM 16" 16". Diam. 46mm HUS-506254902
...
8
SUPPORT BUSHING HUS-503253801
...
9
SPACER SLEEVE HUS-506285901
