Husqvarna K 1250 (2007-01) Power Cutter

Model: K 1250 (2007-01)

Back To Assemblies

Save Part Not Listed?
product name

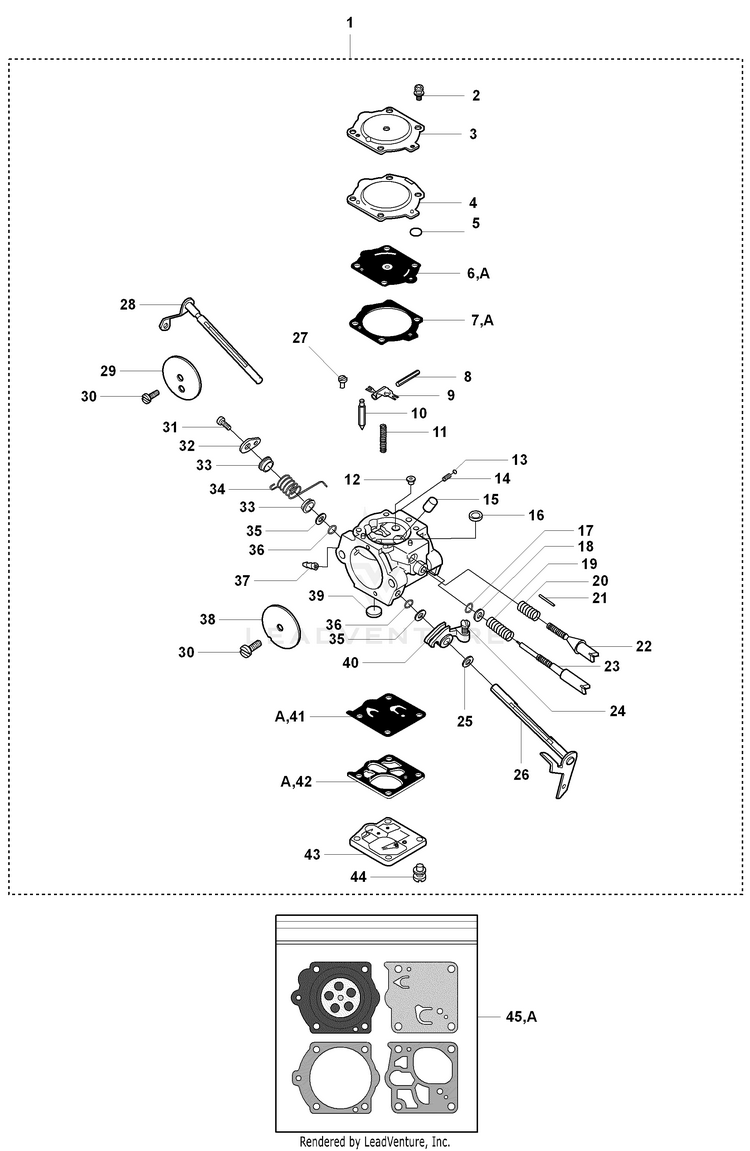

Carburettor and Gasket Kit

...
...
1
CARBURETOR WGA WALBRO HUS-503281217
...
2
SCREW HUS-537003101
...
3
COVER DIAPH HUS-501692801
...
4
COVER HUS-537002901
...
5
WASHER HUS-537002801
...
6
METERING DIAPHRAGM GSKT Kit 45 HUS-503632801
...
7
GASKET Kit 45 HUS-501467501
...
8
PIN HUS-505316731
...
9
LEVER HUS-505316734
...
10
INLET NEEDLE HUS-503563401
...
11
LEVER SPRING HUS-505316723
...
12
JET HUS-537153401
...
13
BALL HUS-501468501
...
14
SPRING HUS-501468401
...
15
JET HUS-503976601
...
16
WELCH PLUG HUS-503574201
...
17
O-RING HUS-503595501
...
18
WASHER HUS-503597201
...
19
PRESSURE SPRING HUS-505316737
...
20
SPRING-MIX NEEDLE HUS-503633101
...
21
ADJ NEEDLE-LO,CARB HUS-503526001
...
22
ADJ SCREW-LO,CARB HUS-503632901
...
23
HI-NEEDLE,CARB HUS-503633201
...
24
SCREW HUS-503596501
...
25
WASHER HUS-506028301
...
26
THROTTLE SHAFT HUS-503595901
...
27
SCREW HUS-505316717
...
28
SHAFT HUS-537003001
...
29
CHOKE SHUTTER HUS-503525801
...
30
SCREW SHUTTERS HUS-530035015
...
31
SCREW M2.5x5 HUS-503192201
...
32
LEVER HUS-503595601
...
33
BUSHING HUS-502103101
...
34
SPRING,THROTTLE RETURN HUS-503525901
...
35
SPACER HUS-505316748
...
36
WASHER HUS-503564501
...
37
FUEL NIPPLE-CARB HUS-503598401
...
38
SHUTTER-THROTTLE HUS-503632401
...
39
FUEL INLET SCREEN HUS-501666101
...
40
LEVER HUS-503595701
...
41
DIAPHRAGM/PUMP HUS-503117301
...
42
GASKET Kit 45 HUS-503117201
...
43
COVER Kit 45 HUS-503595801
...
44
SCREW W/ WASHER HUS-503117501
...
45
DIAPHRAM SET HUS-503597402
