Husqvarna JET 55 - JET55SM (1999-02) Walk Behind Mower

Model: JET 55 - JET55SM (1999-02)

Save Part Not Listed?
product name

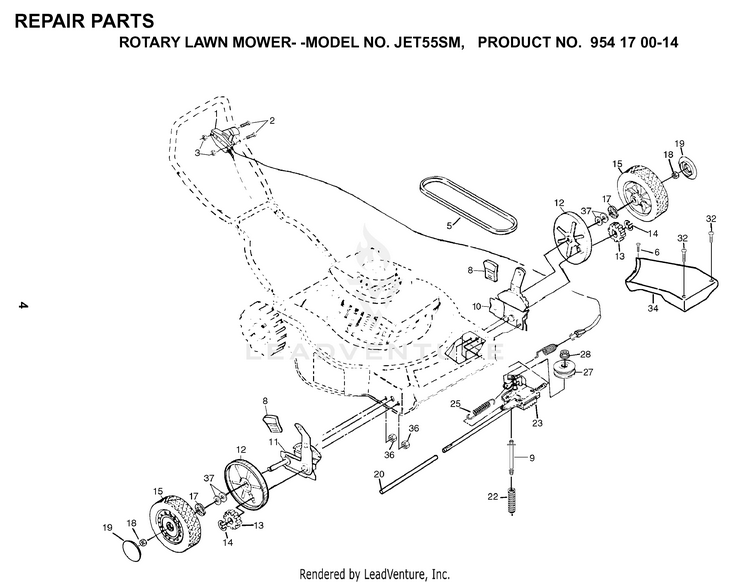

DRIVE

...
...
34
COVER DRIVE HUS-532700422
...
37
KIT.O-RING/WASHER HUS-532428450
...
6
SCREW HUS-817021008
...
3
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
11
WHEEL ADJUSTER KIT RH HUS-532151010
...
22
SPRING.EXTENSION HUS-532137090
...
- -
DECAL HEIGHT ADJUST LH HUS-532750319
...
23
TRANSMISSION 22RD HUS-532187211
...
10
WHEEL ADJUSTER ASSY (LEFT) HUS-532151009
...
17
WASHER FLUT HUS-532067725
...
28
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
12
COVER.DUST.WHEEL.INNER.WALK HUS-581840401
...
25
SPRING HUS-532075192
...
5
KIT.SERVICE.BELT/SPRING. HUS-532157769
...
20
DRV SHAFT TUBE PM HUS-532086012
...
36
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
15
KIT.WHEEL.8X2.RADIAL.BLACK HUS-532193144
...
27
DRIVEN PULLEY HUS-532194126
...
- -
DECAL HEIGHT ADJUST RH NLA HUS-532750320
...
1
DRIVE CONTROL HUS-532142103
...
18
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
19
HUBCAP.8".GREY HUS-532157008
...
2
SCREW.PAN.HEAD HUS-532158755
...
8
SELECTOR KNOB HUS-532701037
...
32
SCREW HUS-532146072
...
13
PINION GEAR HUS-532137054
...
- -
NEEDS DESCRIPTION HUS-GCK5000
...
9
SPRING RETAINER HUS-532150495
...
- -
NEEDS DESCRIPTION HUS-MK22SD
...
14
E-RING 7/16 RE HUS-812000058

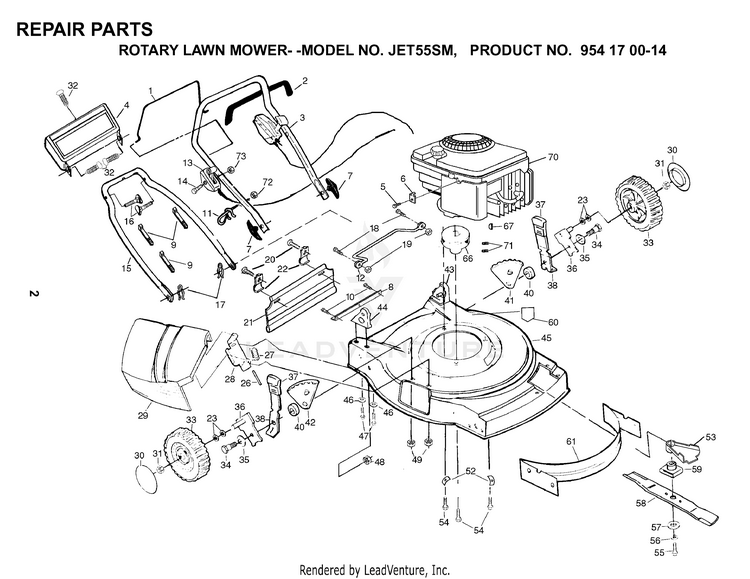

FRAME & ENGINE

...
...
- -
AIR CONDUCTOR HUS-532125381
...
56
Washers HUS-596238701
...
1
CONTROL BAR HUS-532131094
...
7
KIT.KNOB.HANDLE.SERVICE HUS-532183724
...
49
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
29
DISCHARGE GUARD HUS-532850778
...
36
AXLE ARM HUS-532145937
...
26
ROD.HINGE.COMBI-C HUS-532147286
...
58
BLADE HUS-531006062
...
5
SCREW.HEX.HEAD.WASHER.10-16 HUS-532083816
...
18
SCREW HUS-817021008
...
30
HUBCAP.8".GREY HUS-532157008
...
23
KIT.O-RING/WASHER HUS-532428450
...
22
BRACKET.SKIRT.BZP HUS-532192301
...
13
THROTTLE CONTROL HUS-532700417
...
- -
NEEDS DESCRIPTION HUS-532146915
...
15
HANDLE.LOWER.BLACK HUS-532157081
...
66
ENGINE.PULLEY.FWG HUS-532084596
...
53
KIT.SHIELD.DEBRIS.21.RWGD.EZ HUS-532048283
...
45
HOUSING HUS-532146917
...
33
WHEEL.8X2.PR.LP.RAD.GREY HUS-532750550
...
32
FASTENER HUS-532701477
...
67
HI PRO KEY PM WSL HUS-532087677
...
6
WASHER.ENGINE.BZP HUS-532125078
...
2
GRIP.HANDLE.FOAM.438MM HUS-585161003
...
14
SCREW 1/4-20X1.75 HUS-532059935
...
4
TRIM PLATE HUS-532157070
...
59
BLADE ADAPTOR HUS-532851514
...
40
SPACER.HEIGHT.ADJUSTER HUS-532401629
...
20
SCREW HUS-817021008
...
12
PROTECTOR HUS-532154147
...
35
WASHER.BELLEVILLE (3 2 LB) HUS-532062335
...
17
HAIRPIN COTTER HUS-532051793
...
61
PLATE HUS-532165562
...
9
WIRE TIE HUS-532007192
...
11
KIT.ROPE.GUIDE.T-KNOB HUS-586122501
...
47
BOLT.5/16-18UNCX3/4 W/SEMS.BLK HUS-532171877
...
44
KIT HANDLE BRACKET LH/RH HUS-532192983
...
3
ROD HUS-532167123
...
74
RIVET BLIND HUS-532128415
...
27
SPRING PM HUS-532087589
...
43
HDLE BRKT ASSY LH HUS-532153027
...
16
KIT.KNOB.HANDLE.SERVICE HUS-532183724
...
28
BRACKET PM HUS-532087593
...
31
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
- -
NEEDS DESCRIPTION HUS-532146913
...
54
BOLT 3/8-16X1-1/8 HUS-532150406
...
38
SPRING HUS-532125259
...
37
SELECTOR KNOB HUS-532701037
...
19
LOCKNUT HUS-532069180
...
52
WASHER.ENGINE.BZP HUS-532125078
...
57
WASHER,HARDEN HUS-532851074
...
48
Nuts HUS-596322601
...
72
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
60
DECAL MOWER CUT/FINGER HUS-532145494
...
73
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
21
SKIRT.REAR.22RD/SD.FO/VE HUS-532413160
...
34
BOLT SHOULDER 3/8 -16X1 HUS-532174719
...
41
BRACKET WHL ADJ HUS-532140058
...
42
WHL ADJ BRKT LF/RR HUS-532800368
...
55
SCREW, HEX HD 3/8-24 X 1-3/8 HUS-532851084

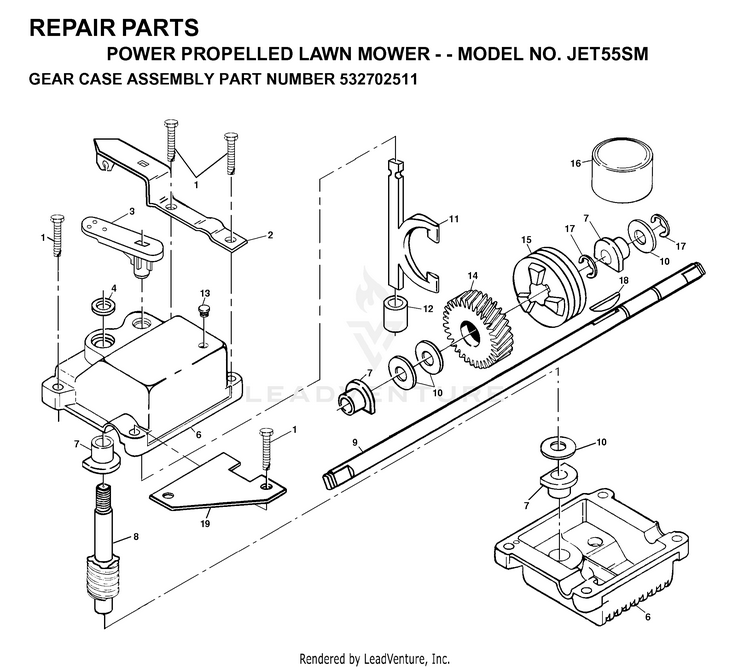

GEAR CASE

...
...
11
YOKE.VIBRATORY FINISH. HUS-532131484
...
18
HI PRO KEY HUS-532850848
...
17
E-RING HUS-812000003
...
21
PULLEY KIT HUS-532154753
...
14
GEAR.HELICAL HUS-532137050
...
20
WOODRUFF KEY HUS-532065692
...
7
BEARING HUS-532077881
...
6
GEAR CASE HUS-532048373
...
9
DRIVE SHAFT, 20-5/8" HUS-532137074
...
3
SHIFTER HUS-532137053
...
16
GREASE, 14 OZ. CARTRIDGE HUS-585517301
...
1
HUS-817640416
...
2
ENGAGEMENT BRACKET HUS-532137055
...
8
SHAFT GEAR WORM HUS-532183863
...
15
CLUTCH JAW HUS-532750436
...
10
THRUST WASHER HUS-532057079
...
19
BRACKET SPRING HUS-532125441
...
13
PLUG.AUGER.GEAR.BOX.SNOW HUS-532086447
...
4
SEAL HUS-532057072
...
12
BUSHING HUS-532700343
