product name

Husqvarna JET 50 R - 954170032 (2003-01) Walk Behind Mower

Model: JET 50 R - 954170032 (2003-01)

Save Part Not Listed?
product name

PRODUCT COMPLETE

...
...
20
BRACKET.ASM.HDL.LT.W/HOLE.BLAC HUS-532170346
...
52
KNOB HUS-532087877
...
22
WASHER.BELLEVILLE (3 2 LB) HUS-532062335
...
41
DECAL.CUTFINGER.CE.02 HUS-581579101
...
17
HAIRPIN COTTER HUS-532051793
...
62
BRACKET PM HUS-532087593
...
61
BRACKET.HDLE.SUPPORT.LT.BLACK HUS-532178023
...
- -
NEEDS DESCRIPTION HUS-532163073
...
64
SPRING PM HUS-532087589
...
50
BRACKET.ADJ.WHEEL.5POS.ADS HUS-532410807
...
4
KIT.ROPE.GUIDE.T-KNOB HUS-586122501
...
7
SCREW.PAN.HEAD HUS-532158755
...
15
NUT WING PM HUS-532128638
...
- -
PLATE NLA HUS-532125046
...
33
WASHER,HARDEN HUS-532851074
...
28
PROTECTOR HUS-532154147
...
24
BOLT SHOULDER 3/8 -16X1 HUS-532174719
...
34
BLADE.20.MULCH.(50DK,6020MD) HUS-532145106
...
8
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
43
NEEDS DESCRIPTION HUS-532182156
...
63
ROD.HINGE.COMBI-C HUS-532147286
...
21
BRACKET.ASM.HDL.RT.W/HOLE.BLAC HUS-532170345
...
35
ADAPTOR.BLADE.7/8 HUS-581547901
...
2
HANDLE.UP.DSTR.FGD/PU.16.BLACK HUS-532166860
...
60
Bracket Support (Right) HUS-532180320
...
65
WASHER HUS-532053998
...
66
SPACER HUS-532701313
...
57
HUB CAP HUS-532800090
...
25
SCREW HUS-532850999
...
54
ARM.AXLE.ASM.BZP HUS-532145935
...
23
WHEEL.7X1.5.DMD.3SPK.GREY HUS-532436482
...
5
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
42
PLATE HUS-532146026
...
30
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
27
BOLT.5/16-18UNCX3/4 W/SEMS.BLK HUS-532171877
...
32
Washers HUS-596238701
...
14
LOCKNUT HUS-532069180
...
1
CONTROL BAR HUS-532131696
...
6
KIT.KNOB.HANDLE.SERVICE HUS-532183724
...
31
SCREW, HEX HD 3/8-24 X 1-3/8 HUS-532851084
...
19
NEEDS DESCRIPTION HUS-532180861
...
- -
NEEDS DESCRIPTION HUS-532163074
...
13
SCREW HUS-817021008
...
11
SCREW HUS-532750634
...
47
CABLE CLAMP(ENGINE) * ORDER PARTS FROM ENGINE MANUFACTURER HUS-532111190
...
55
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
16
WIRE TIE HUS-532007192
...
51
SPACER.HEIGHT.ADJUSTER HUS-532401629
...
12
BRACKET.UPSTOP HUS-532850733
...
53
SPRING.SELECTOR.5POS.BZP HUS-532401621
...
59
RIVET BLIND HUS-532128415
...
10
CABLE.MZR.51.RT.SP./PU. HUS-532130861
...
46
SCREW.HEX.HEAD.WASHER.10-16 HUS-532083816
...
18
GUARD HUS-532750149
...
29
Nuts HUS-596322601
...
3
HANDLE.LOWR.DLX.20RD.CLIP.BLAC HUS-532151590

PRODUCT COMPLETE 2

...
...
41
DECAL.CUTFINGER.CE.02 HUS-581579101
...
51
SPACER.HEIGHT.ADJUSTER HUS-532401629
...
16
WIRE TIE HUS-532007192
...
54
ARM.AXLE.ASM.BZP HUS-532145935
...
2
HANDLE.UP.DSTR.FGD/PU.16.BLACK HUS-532166860
...
32
Washers HUS-596238701
...
30
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
47
CABLE CLAMP(ENGINE) * ORDER PARTS FROM ENGINE MANUFACTURER HUS-532111190
...
59
RIVET BLIND HUS-532128415
...
6
KIT.KNOB.HANDLE.SERVICE HUS-532183724
...
24
BOLT SHOULDER 3/8 -16X1 HUS-532174719
...
35
ADAPTOR.BLADE.7/8 HUS-581547901
...
25
SCREW HUS-532850999
...
42
PLATE HUS-532146026
...
28
PROTECTOR HUS-532154147
...
50
BRACKET.ADJ.WHEEL.5POS.ADS HUS-532410807
...
4
KIT.ROPE.GUIDE.T-KNOB HUS-586122501
...
64
SPRING PM HUS-532087589
...
7
SCREW.PAN.HEAD HUS-532158755
...
23
WHEEL.7X1.5.DMD.3SPK.GREY HUS-532436482
...
14
LOCKNUT HUS-532069180
...
10
CABLE.MZR.51.RT.SP./PU. HUS-532130861
...
8
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
43
NEEDS DESCRIPTION HUS-532182156
...
34
BLADE.20.MULCH.(50DK,6020MD) HUS-532145106
...
53
SPRING.SELECTOR.5POS.BZP HUS-532401621
...
21
BRACKET.ASM.HDL.RT.W/HOLE.BLAC HUS-532170345
...
5
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
66
SPACER HUS-532701313
...
27
BOLT.5/16-18UNCX3/4 W/SEMS.BLK HUS-532171877
...
- -
PLATE NLA HUS-532125046
...
3
HANDLE.LOWR.DLX.20RD.CLIP.BLAC HUS-532151590
...
22
WASHER.BELLEVILLE (3 2 LB) HUS-532062335
...
63
ROD.HINGE.COMBI-C HUS-532147286
...
55
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
12
BRACKET.UPSTOP HUS-532850733
...
33
WASHER,HARDEN HUS-532851074
...
- -
NEEDS DESCRIPTION HUS-532163074
...
60
Bracket Support (Right) HUS-532180320
...
20
BRACKET.ASM.HDL.LT.W/HOLE.BLAC HUS-532170346
...
11
SCREW HUS-532750634
...
15
NUT WING PM HUS-532128638
...
29
Nuts HUS-596322601
...
61
BRACKET.HDLE.SUPPORT.LT.BLACK HUS-532178023
...
31
SCREW, HEX HD 3/8-24 X 1-3/8 HUS-532851084
...
65
WASHER HUS-532053998
...
46
SCREW.HEX.HEAD.WASHER.10-16 HUS-532083816
...
52
KNOB HUS-532087877
...
62
BRACKET PM HUS-532087593
...
13
SCREW HUS-817021008
...
1
CONTROL BAR HUS-532131696
...
- -
NEEDS DESCRIPTION HUS-532163073
...
19
NEEDS DESCRIPTION HUS-532180861
...
57
HUB CAP HUS-532800090
...
18
GUARD HUS-532750149
...
17
HAIRPIN COTTER HUS-532051793

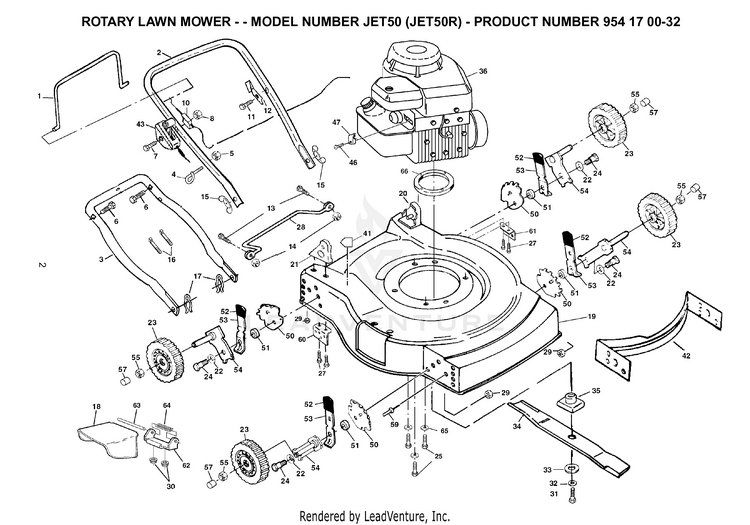

Schematic Image Zoomed
