Husqvarna JET 50 R - 954053811 (2001-03) Walk Behind Mower

Model: JET 50 R - 954053811 (2001-03)

Save Part Not Listed?
product name

PRODUCT COMPLETE

...
...
1
CONTROL BAR HUS-532131696
...
3
HANDLE.LOWR.DLX.20RD.CLIP.BLAC HUS-532151590
...
2
HANDLE.UP.DSTR.FGD/PU.16.BLACK HUS-532166860
...
64
WASHER.ENGINE.BZP HUS-532125078
...
38
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
73
HINGE SCREW HUS-532088652
...
40
HUB CAP HUS-532800090
...
46
DECAL MOWER CUT/FINGER HUS-532145494
...
23
REAR DOOR ASSEMBLY KIT HUS-532147613
...
54
Washers HUS-596238701
...
51
NEEDS DESCRIPTION HUS-532170635
...
7
WIRE TIE HUS-532007192
...
19
PLATE HUS-532162473
...
74
SKIRT.REAR.20RD HUS-532188984
...
14
NUT WING PM HUS-532128638
...
72
RIVET BLIND HUS-532128415
...
8
SCREW.PAN.HEAD HUS-532158755
...
45
BOLT 3/8-16X1-1/8 HUS-532150406
...
4
KIT.ROPE.GUIDE.T-KNOB HUS-586122501
...
9
THROTTLE CONTROL HUS-532851463
...
66
GUIDE CLIP PM HUS-532087930
...
25
HANDLE BRACKET ASSEMBLY - LEFT HUS-532153030
...
32
SPRING.SELECTOR.5POS.BZP HUS-532401621
...
15
HAIRPIN COTTER HUS-532051793
...
43
SCREW HUS-532054583
...
6
KIT.KNOB.HANDLE.SERVICE HUS-532183724
...
33
KNOB HUS-532087877
...
52
NEEDS DESCRIPTION HUS-532170662
...
11
CABLE.MZR.51.RT.SP./PU. HUS-532130861
...
5
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
68
CATCHER.FRAME.WALK HUS-532088614
...
37
WHEEL.7X1.5.DMD.3SPK.GREY HUS-532436482
...
27
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
16
PROTECTOR HUS-532146143
...
24
Nuts HUS-596322601
...
56
BLADE.20.MULCH.(50DK,6020MD) HUS-532145106
...
35
WASHER.BELLEVILLE (3 2 LB) HUS-532062335
...
65
SCREW.HEX.HEAD.WASHER.10-16 HUS-532083816
...
26
HANDLE BRACKET ASSEMBLY-RIGHT HUS-532153029
...
- -
NEEDS DESCRIPTION HUS-532163073
...
55
WASHER,HARDEN HUS-532851074
...
10
SCREW HUS-532146694
...
57
ADAPTOR.BLADE.7/8 HUS-581547901
...
75
NEEDS DESCRIPTION HUS-532173297
...
29
BRACKET.ADJ.WHEEL.5POS.ADS HUS-532410807
...
76
SCREW 1/4X20 HUS-817600406
...
12
SCREW HUS-817021008
...
13
BRACKET.UPSTOP HUS-532850733
...
36
BOLT SHOULDER 3/8 -16X1 HUS-532174719
...
34
ARM.AXLE.ASM.BZP HUS-532145935
...
20
SIDE BAFFLE HUS-532700363
...
67
GRASS BAG HUS-532146896
...
- -
NEEDS DESCRIPTION HUS-532163074
...
30
SPACER.HEIGHT.ADJUSTER HUS-532401629
...
53
SCREW, HEX HD 3/8-24 X 1-3/8 HUS-532851084

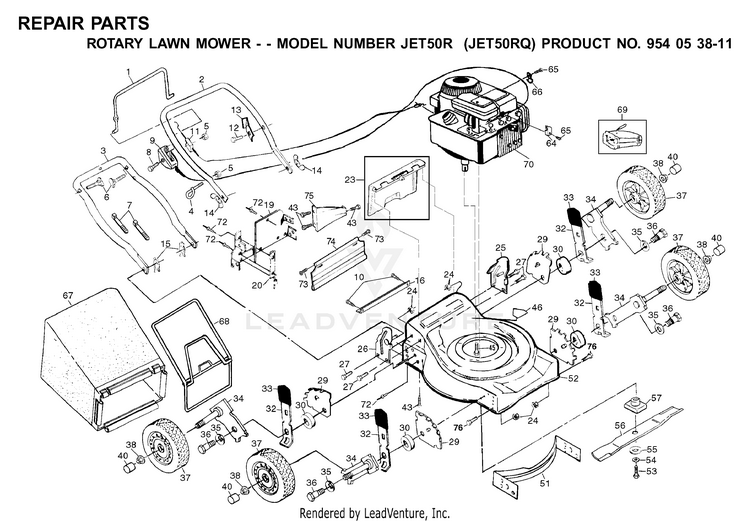

Schematic Image Zoomed
