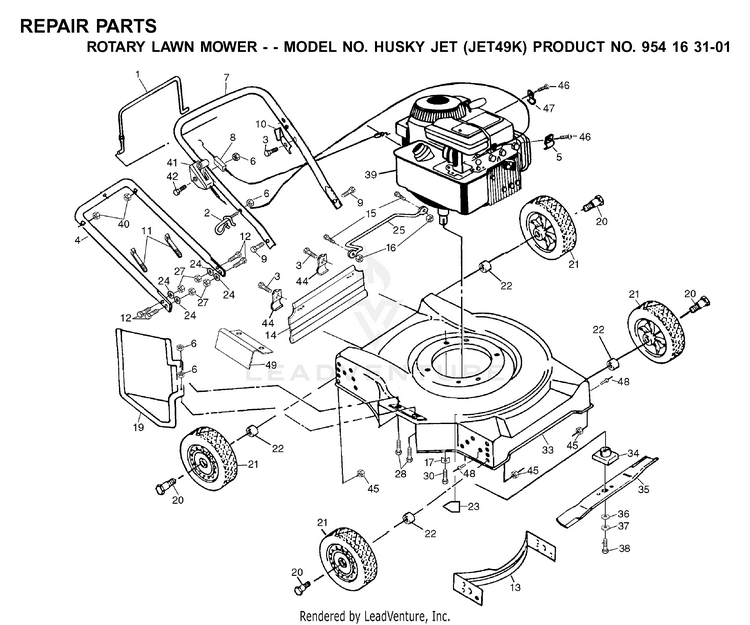

Husqvarna JET 49 - JET49K (2001-03) Walk Behind Mower

Model: JET 49 - JET49K (2001-03)

Save Part Not Listed?
product name

PRODUCT COMPLETE

...
...
- -
NEEDS DESCRIPTION HUS-532163073
...
16
LOCKNUT HUS-532069180
...
3
SCREW HUS-817021008
...
6
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
47
GUIDE CLIP PM HUS-532087930
...
- -
BAFFLE HUS-532133379
...
1
CONTROL BAR HUS-532086902
...
22
SPACER.WHEEL.390.X1.0X.380.RTA HUS-532136624
...
49
BRACKET HUS-532162234
...
35
BLADE.20.MULCH.(50DK,6020MD) HUS-532145106
...
4
NEEDS DESCRIPTION HUS-532173542
...
10
BRACKET.UPSTOP HUS-532850733
...
7
NEEDS DESCRIPTION HUS-532173541
...
20
AXLE BOLT HUS-532067609
...
30
BOLT 3/8-16X1-1/8 HUS-532150406
...
27
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
23
DECAL MOWER CUT/FINGER HUS-532145494
...
38
SCREW, HEX HD 3/8-24 X 1-3/8 HUS-532851084
...
9
Bolt Hex Fin 1/4-20 x 1-1/2 HUS-874780424
...
- -
NEEDS DESCRIPTION HUS-532163074
...
40
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
44
BRACKET.SKIRT.BZP HUS-532192301
...
41
THROTTLE CONTROL HUS-532851463
...
25
PROTECTOR HUS-532154147
...
13
BAFFLE.FRONT.20" ECON STL.GALV HUS-588548801
...
48
RIVET BLIND HUS-532128415
...
45
Nuts HUS-596322601
...
37
Washers HUS-596238701
...
42
SCREW.PAN.HEAD HUS-532158755
...
5
WASHER.ENGINE.BZP HUS-532125078
...
12
NEEDS DESCRIPTION HUS-532137009
...
2
KIT.ROPE.GUIDE.T-KNOB HUS-586122501
...
19
PROTECTOR HUS-532752052
...
15
SCREW HUS-817021008
...
24
WASHER HUS-532055611
...
36
WASHER,HARDEN HUS-532851074
...
21
WHEEL.7X1.5.DMD.3SPK.GREY HUS-532436482
...
14
SKIRT.20RD/SD.FO/VE.BO WHEELS HUS-532189009
...
17
WASHER.ENGINE.BZP HUS-532125078
...
8
CABLE.CONTROL.MZR.RH.SP/PUSH HUS-532700892
...
33
HOUSING HUS-532162226
...
11
WIRE TIE HUS-532007192
...
46
SCREW.HEX.HEAD.WASHER.10-16 HUS-532083816
...
28
BOLT.HEX.1/4.X.3/4.DICHROMATE HUS-874760412
...
34
ADAPTOR.BLADE.7/8 HUS-581547901
