Husqvarna JET 48 (TECUMSEH 1996-01) Walk Behind Mower

Model: JET 48 (TECUMSEH 1996-01)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

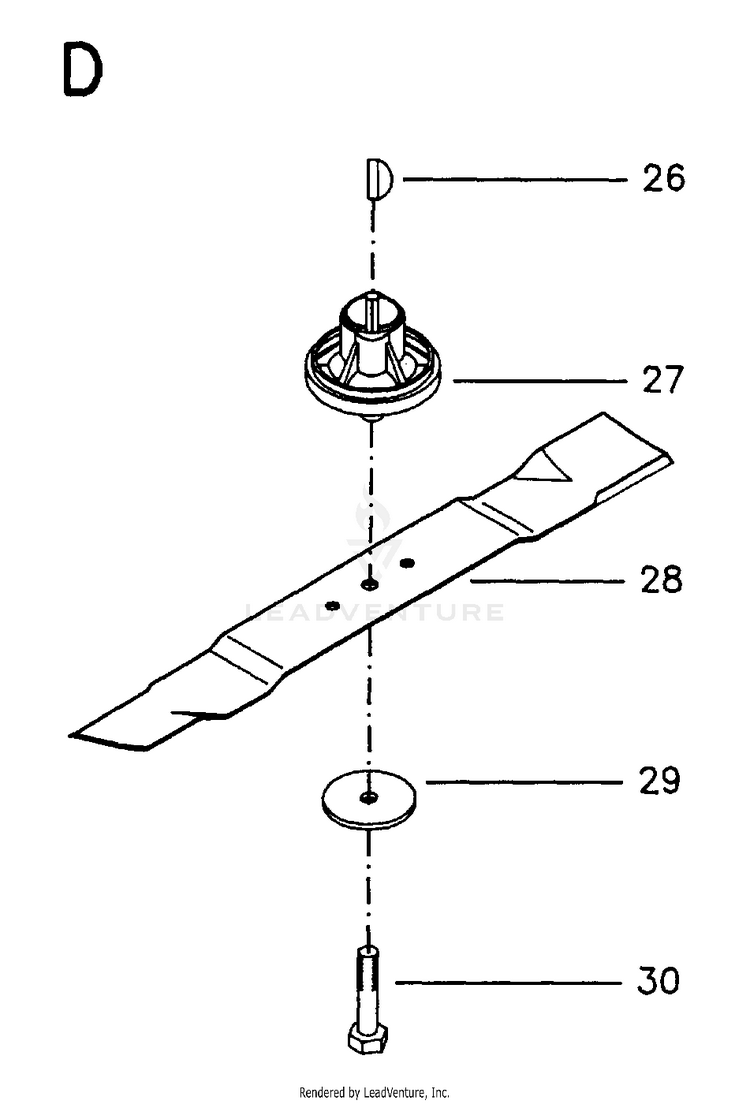

CUTTING EQUIPMENT

...
...
30
SCREW HUS-515123931
...
29
WASHER HUS-515796001
...
27
BLADE ADAPTER HUS-531005028
...
26
KEY HUS-515117001
...
28
BLADE HUS-516623500

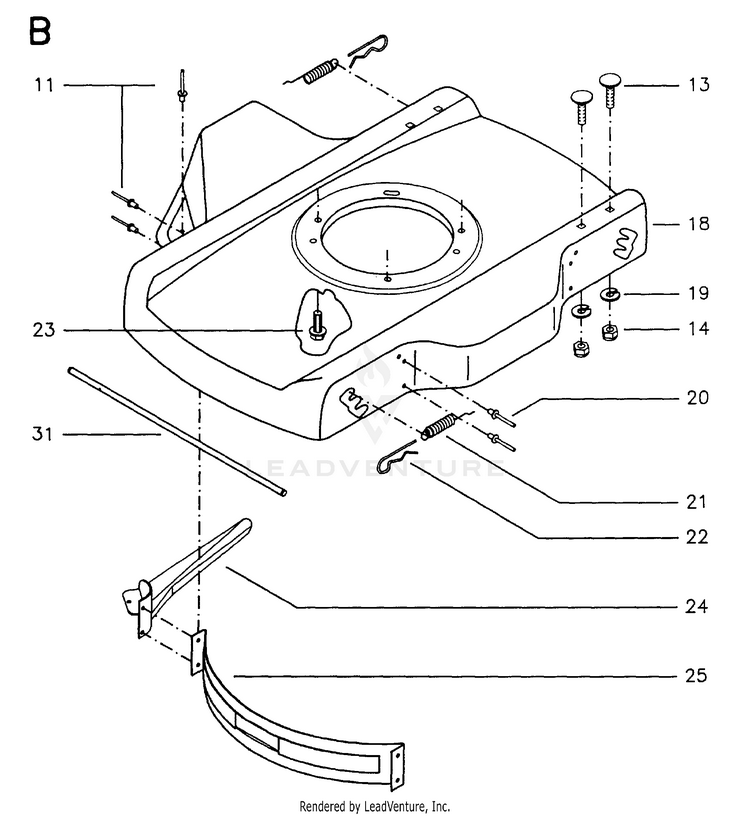

FRAME

...
...
25
PLATE HUS-516432701
...
13
SCREW HUS-727645501
...
14
NUT HUS-731231801
...
18
NEEDS DESCRIPTION HUS-516628507
...
19
SPRING WASHER HUS-735116401
...
20
RIVET HUS-516924000
...
22
SPRING HUS-515118587
...
24
NEEDS DESCRIPTION HUS-516696607
...
21
SPRING HUS-516437901
...
11
RIVET HUS-516923800
...
23
SCREW HUS-516931901
...
31
SHAFT HUS-516698000

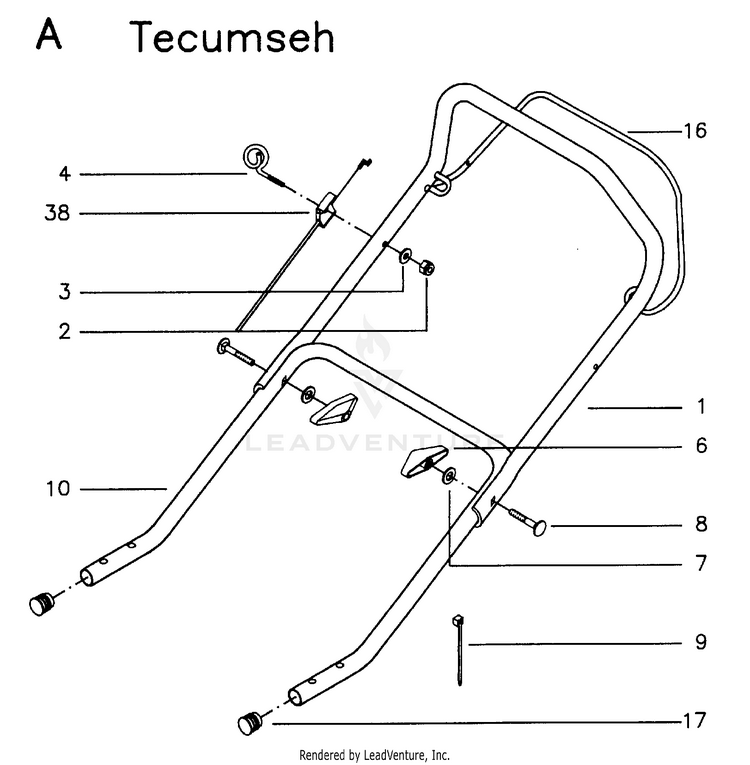

HANDLE & CONTROLS

...
...
38
NEEDS DESCRIPTION HUS-516829900
...
1
HANDLE HUS-516631011
...
4
GUIDE HUS-516623301
...
16
NEEDS DESCRIPTION HUS-516633207
...
10
HANDLE HUS-516635811
...
9
Tie-Wrap HUS-516844509
...
3
WASHER HUS-516449101
...
17
PLUG HUS-516851700
...
8
SCREW HUS-727646101
...
7
WASHER HUS-515796009
...
6
WINGNUT HUS-512793167
...
2
LOCKNUT M6 HUS-732211601

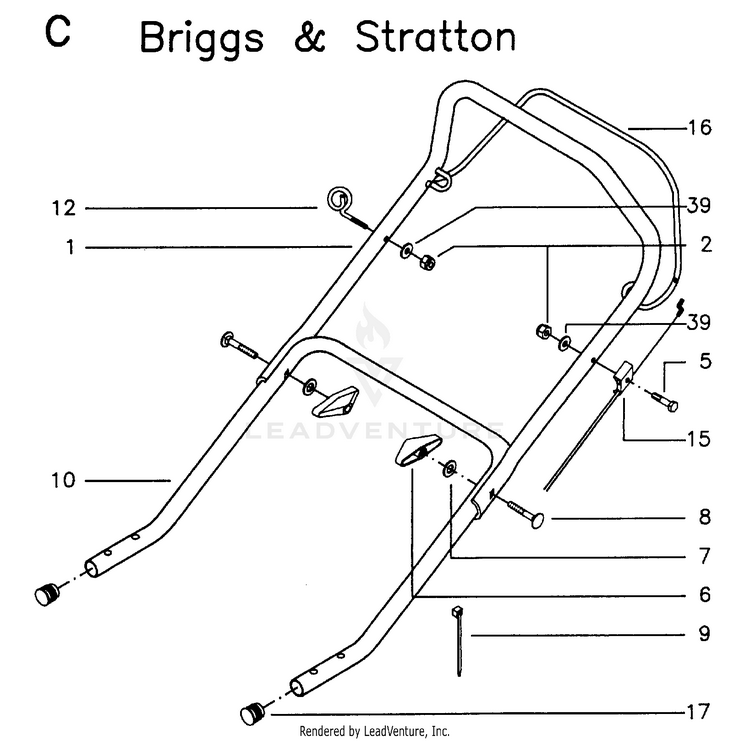

HANDLE & CONTROLS 2

...
...
15
CABLE.MZR.41.B&S.QUA.RT.RDD HUS-532851672
...
7
WASHER HUS-515796009
...
39
Washer HUS-734115301
...
9
Tie-Wrap HUS-516844509
...
6
WINGNUT HUS-512793167
...
8
SCREW HUS-727646101
...
10
HANDLE HUS-516635811
...
16
NEEDS DESCRIPTION HUS-516633207
...
12
HOLDER HUS-513076300
...
17
PLUG HUS-516851700
...
2
LOCKNUT M6 HUS-732211601
...
5
BOLT FLANGE HUS-725237651
...
1
HANDLE HUS-516631011

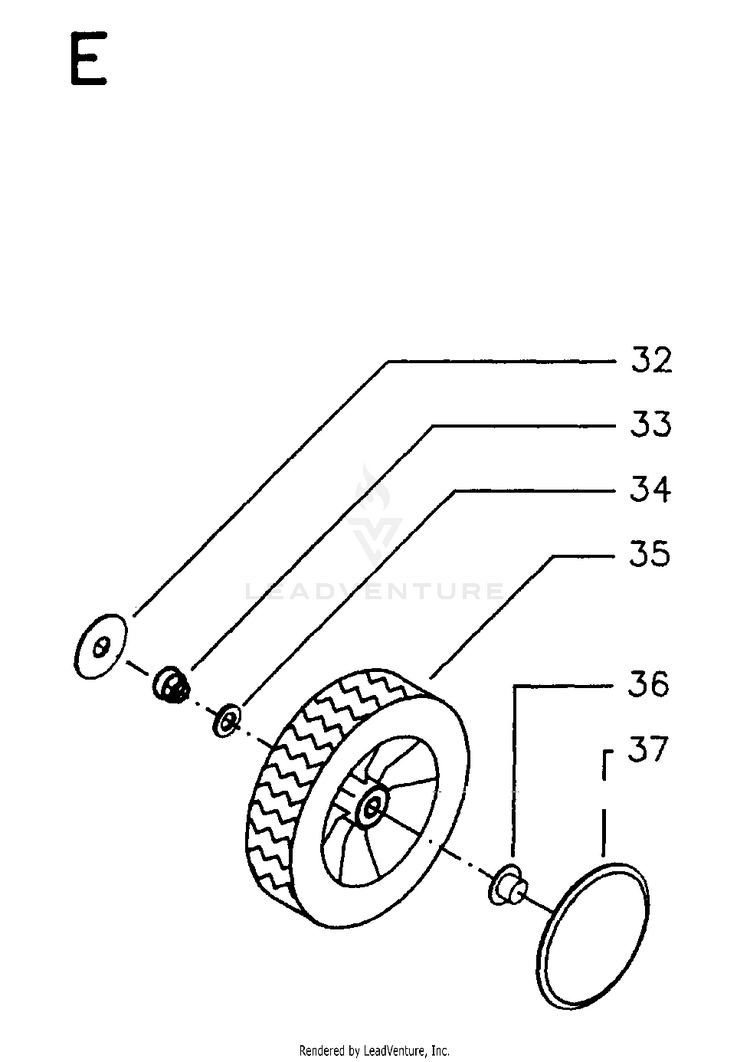

WHEELS & TIRES

...
...
35
WHEEL HUS-517810028
...
32
WASHER HUS-516442801
...
37
HUB CAP HUS-516854908
...
33
SPRING HUS-515118459
...
34
NEEDS DESCRIPTION HUS-734117301
...
36
LOCK RING HUS-515116041
