Husqvarna J55 S - 961 21 00-07 (2006-01) Walk Behind Mower

Model: J55 S - 961 21 00-07 (2006-01)

Save Part Not Listed?
product name

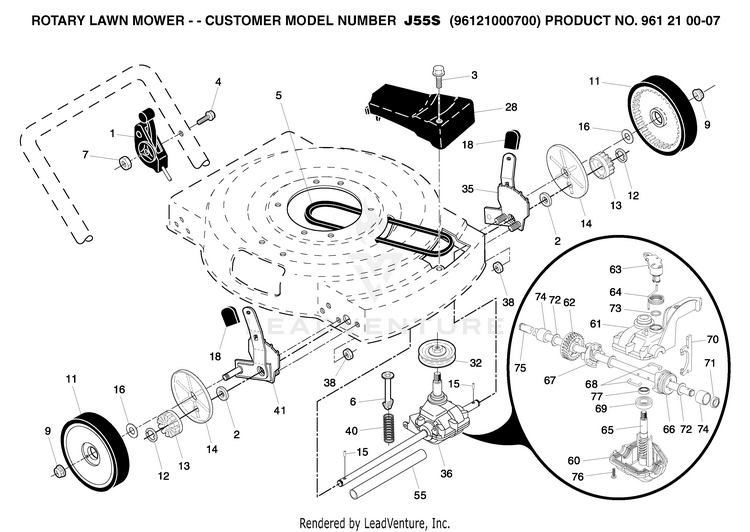

DRIVE

...
...
16
WASHER FLUT HUS-532067725
...
74
BUSHING HUS-532183511
...
70
FORK, SHIFT HUS-532183507
...
41
NEEDS DESCRIPTION HUS-532197999
...
7
NUT.HEX.FLANGE.1/4 HUS-532191730
...
68
WIRE, FORMED (15966) HUS-532183505
...
71
SEAL.OUTPUT.SHAFT HUS-532183508
...
75
SHAFT OUTPUT (12260 NOW 12663) HUS-532196561
...
5
KIT.SERVICE.BELT/SPRING. HUS-532157769
...
72
WASHER HUS-532183509
...
61
UPPER CASE * USE DOW CORNING #709 TO RESEAL GEAR CASE HALVES. HUS-532183498
...
3
Screw, Tapping, Pan Head #10-24 x 2-3/4 HUS-532143603
...
63
LEVER, CLUTCH HUS-532183500
...
67
DOG, FIXED GT11031 HUS-532183504
...
12
E-RING 7/16 RE HUS-812000058
...
2
BEARING.SUPPORT.ASM HUS-587070202
...
76
SCREW HUS-532183513
...
64
SPRING, RETURN HUS-532183501
...
62
GEAR.27.TEETH.WALK.MOWER HUS-532183499
...
65
SHAFT INPUT (13041) HUS-532183502
...
73
SEAL, CASE O-RING HUS-532183510
...
28
Drive Cover HUS-532196008
...
77
SEAL INPUT SHAFT HUS-532183514
...
4
SCREW.PAN.HEAD HUS-532158755
...
69
BEARING HUS-532183506
...
11
WHEEL.8X1.75.MAG2.RAD3.GREY HUS-583719501
...
40
SPRING.EXTENSION HUS-532137090
...
14
COVER.DUST.WHEEL.INNER.WALK HUS-581840401
...
38
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
13
PINION.14.TEETH.FGD HUS-532403849
...
35
NEEDS DESCRIPTION HUS-532198001
...
32
DRIVEN PULLEY HUS-532194126
...
1
DRIVE CONTROL 59.8 FWGD HUS-532184588
...
55
DRV SHAFT TUBE PM HUS-532086012
...
9
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
18
SELECTOR KNOB HUS-532701037
...
6
SPRING RETAINER HUS-532150495
...
15
PAWL, DRIVE HUS-532404845
...
60
LOWER CASE * USE DOW CORNING #709 TO RESEAL GEAR CASE HALVES. HUS-532183497
...
36
NEEDS DESCRIPTION HUS-532194936
...
66
DOG, MOVABLE (11032) HUS-532183503

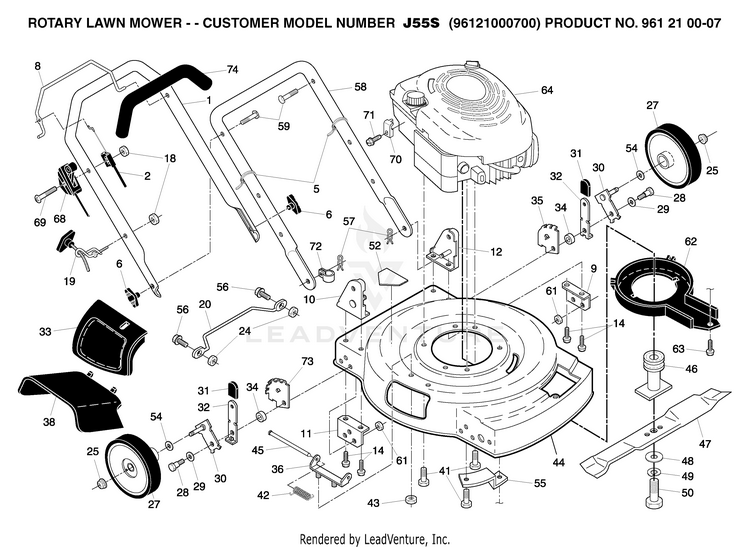

FRAME & ENGINE

...
...
12
BRACKET.ASM.HDL.LT.W/HOLE.BLAC HUS-532170346
...
10
BRACKET.ASM.HDL.RT.W/HOLE.BLAC HUS-532170345
...
47
Blade, 22" HUS-532199379
...
58
HANDLE.LOWR.DLX.20RD.CLIP.BLAC HUS-532151590
...
36
BRACKET.ASM.HOUSING.EZ.MUL HUS-532154132
...
2
ENGINE ZONE CONTROL CABLE HUS-532149293
...
49
Washers HUS-596238701
...
8
BAIL.COMF.FWGD.668.ORANGE.WALK HUS-532190527
...
34
SPACER.HEIGHT.ADJUSTER HUS-532401629
...
- -
NEEDS DESCRIPTION HUS-532194061
...
72
CLIP.CABLE.BLK HUS-532197991
...
74
GRIP.HANDLE.FOAM.438MM HUS-585161003
...
61
Nuts HUS-596322601
...
24
LOCKNUT HUS-532069180
...
20
PROTECTOR HUS-532154147
...
18
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
69
SCREW HUS-532183365
...
55
BRACKET.DEBRIS.SHIELD.BZP HUS-532188839
...
6
HANDLE.KNOB.BLACK HUS-532185577
...
33
DOOR.MULCH.22.EZ.MULCH.GREY HUS-532196010
...
71
SCREW.HEX.HEAD.WASHER.10-16 HUS-532083816
...
42
TORSION SPRING HUS-532152124
...
25
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
52
DECAL.CUTFINGER.CE.02 HUS-581579101
...
31
SELECTOR KNOB HUS-532701037
...
56
SCREW HUS-817021008
...
45
ROD.HINGE.COMBI-C HUS-532147286
...
63
SCREW.HEX.WSH HUS-532192325
...
30
AXLE ARM HUS-532145937
...
- -
NEEDS DESCRIPTION HUS-532199548
...
27
WHEEL 8X1.75 MAG2 RAD3 HUS-532402566
...
57
HAIRPIN COTTER HUS-532051793
...
28
BOLT SHOULDER 3/8 -16X1 HUS-532174719
...
73
BRACKET WHL ADJ. NLA HUS-532140059
...
- -
NEEDS DESCRIPTION HUS-532194060
...
29
WASHER.BELLEVILLE (3 2 LB) HUS-532062335
...
59
BOLT, HANDLE 5/16-18X1.75 HUS-532191574
...
70
CABLE CLAMP(ENGINE) HUS-532111190
...
41
BOLT 3/8-16X1-1/8 HUS-532150406
...
44
Kit, Mower Housing HUS-532400660
...
38
DEFLECTOR.GUARD.22..EZ.MULCH HUS-532196011
...
9
GUARD.BELT.TILLER.RT.BLACK HUS-583686402
...
11
Support Bracket, Handle, RH HUS-532195799
...
48
WASHER,HARDEN HUS-532851074
...
- -
DECAL.INTRN.SELF-PROPELLED HUS-583119801
...
68
THROTTLE CONTROL HUS-532700417
...
35
BRACKET WHL ADJ HUS-532140058
...
43
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
1
HANDLE.UP.DLX.COMF.W/GRIP.GREY HUS-532169369
...
46
ADAPTER.BLADE/PULLEY.25M HUS-532421176
...
32
SPRING HUS-532125259
...
19
KIT.ROPE.GUIDE.T-KNOB HUS-586122501
...
- -
NEEDS DESCRIPTION HUS-532199547
...
54
WASHER.BELLEVILLE (3 2 LB) HUS-532062335
...
14
BOLT.5/16-18UNCX3/4 W/SEMS.BLK HUS-532171877
...
50
SCREW, HEX HD 3/8-24 X 1-3/8 HUS-532851084
...
5
WIRE TIE HUS-532007192
...
62
DEBRIS.SHIELD.21:.FGD HUS-532188784
